Console - Floor

Console - Floor, Fusion, Milan

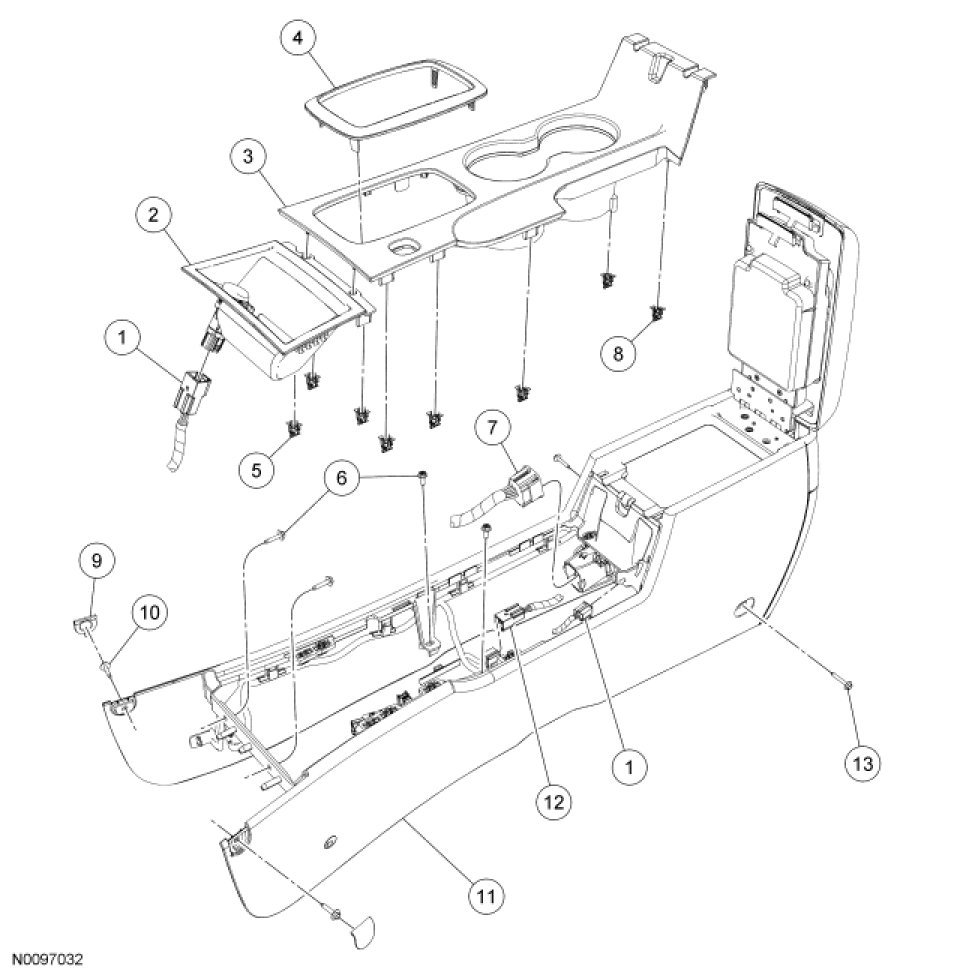

Removal and Installation

NOTICE: When prying on a component, a non-marring tool must be used or damage to the component may occur.

1. Position the front seats forward and remove the 2 floor console rear screws.

2. Position the front seats rearward.

3. Pull the parking brake handle upward.

4. If equipped with an automatic transmission, remove the selector lever trim ring.
- Using a non-marring tool, pry upward to release the retaining clips.

5. If equipped with a manual transmission, remove the gearshift knob by turning in a counterclockwise direction.

6. Open the storage compartment door and remove the floor console finish panel.
- Using a non-marring tool, pry upward to release the retaining clips.

- Disconnect the electrical connectors, if equipped.

7. Remove the utility tray.
- Using a non-marring tool, pry upward to release the retaining clips.

- Disconnect the electrical connector.

- Disconnect the audio jack connector, if equipped.

8. Remove the 2 floor console screw covers.

9. Remove the 2 floor console front screws.

10. Disconnect the power point and bulkhead electrical connectors. Detach the electrical connector pin-type retainer.

11. NOTICE: To prevent damage to the instrument panel, place the selector lever in NEUTRAL and pull the console towards the rear of the vehicle when removing the console.

Remove the 4 floor console screws, place the selector lever in NEUTRAL, pull the console towards the rear of the vehicle and remove the floor console.

12. To install, reverse the removal procedure.
