Hood Latch Release Handle

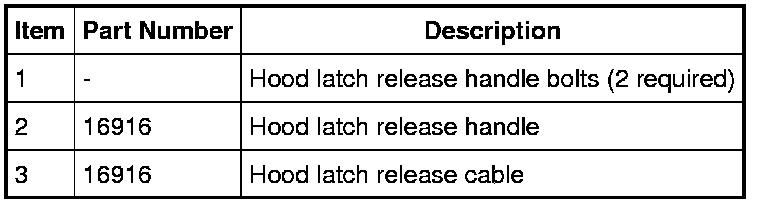

Hood Latch Release Handle

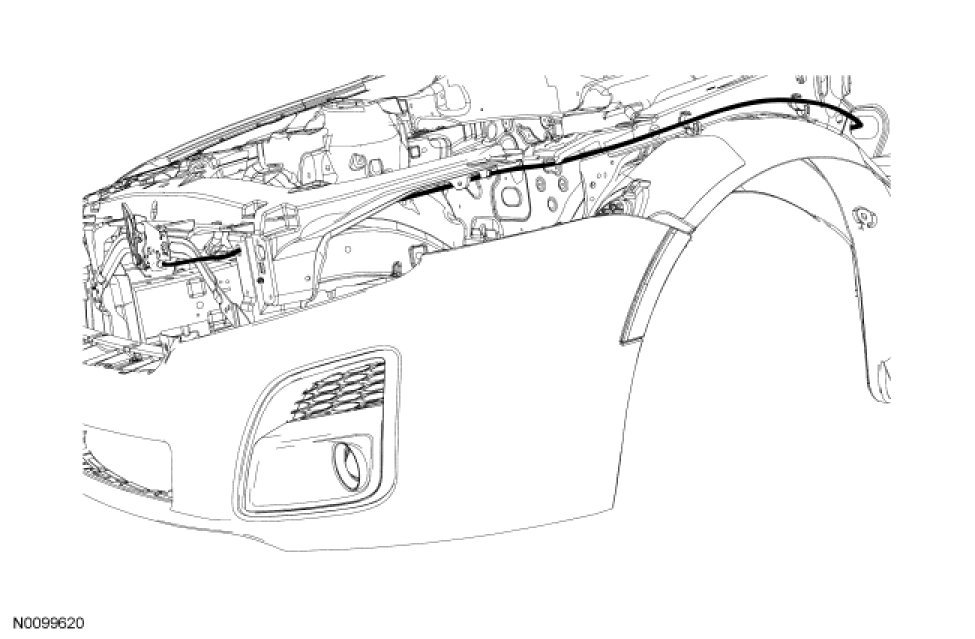

Hood Latch Release Cable Routing




Removal and Installation

1. Remove the hood latch. For additional information, refer to Hood Latch Service and Repair.

2. Remove the LH fender splash shield. For additional information, refer to Front End Body Panels Fender Splash Shield.

3. Release the 2 hood latch release cable locators from the radiator grille opening panel reinforcement.

4. Disconnect the hood latch release cable from the LH fender opening, open the 2 hood latch release cable locators and position the cable aside.

5. Release the hood latch release cable locator from the wiring harness.

6. Remove the Smart Junction Box (SJB). For additional information, refer to Multifunction Electronic Modules Service and Repair.

7. Remove the 2 hood latch release handle bolts.

8. Remove the hood latch release handle and cable assembly.

9. To install, reverse the removal procedure.
