Front Door Panel: Service and Repair

Door Trim Panel - Front

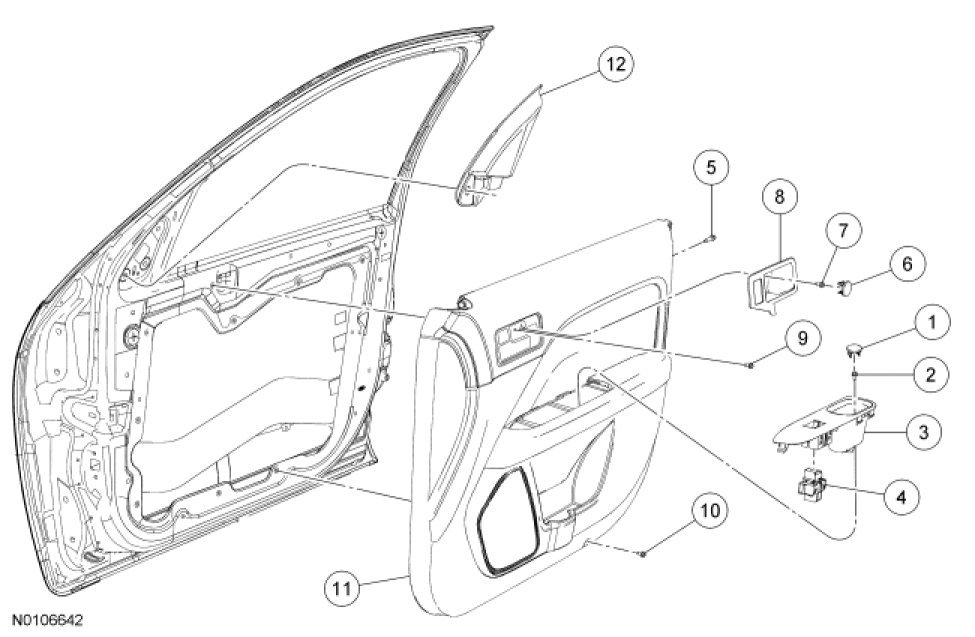

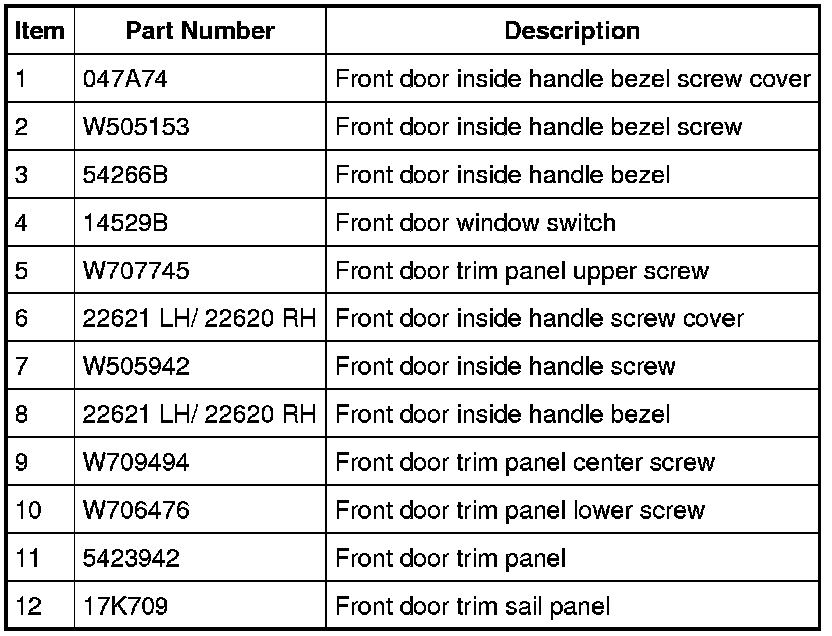

Fusion and Milan

NOTE: Fusion shown, Milan similar.

NOTE: RH shown, LH similar.

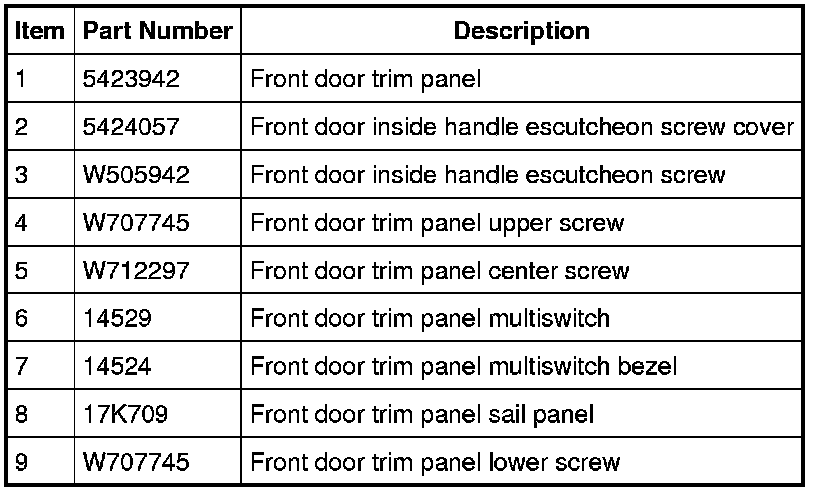

MKZ

NOTE: LH shown, RH similar.











Removal and Installation

All vehicles

1. Remove the front door inside handle screw cover.

2. Remove the front door inside handle screw.

Fusion and Milan

3. Remove the front door inside handle bezel screw cover.

4. Remove the front door inside handle bezel screw.

5. Remove the front door inside handle bezel.
- Lift upward on the rear of the front door inside handle bezel.

- Disconnect the electrical connector.

All vehicles

6. Remove the front door trim panel upper screw.

7. Remove the front door trim panel lower screw.

8. Remove the front door trim panel center screw.
- Fusion/Milan is located behind the inside door handle bezel.

- MKZ is located above the map pocket.

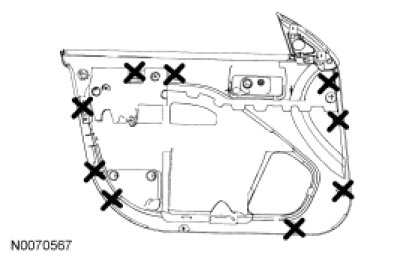

9. NOTE: The back of the front door trim panel shown with the location of the pin-type retainers.

Remove the front door trim panel.

- Pull the front door trim panel outward to release the pin-type retainers.

- Disconnect the electrical connector.





10. To install, reverse the removal procedure.
