Speaker - Parcel Shelf

Speaker - Parcel Shelf









Removal and Installation

1. Remove the parcel shelf. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

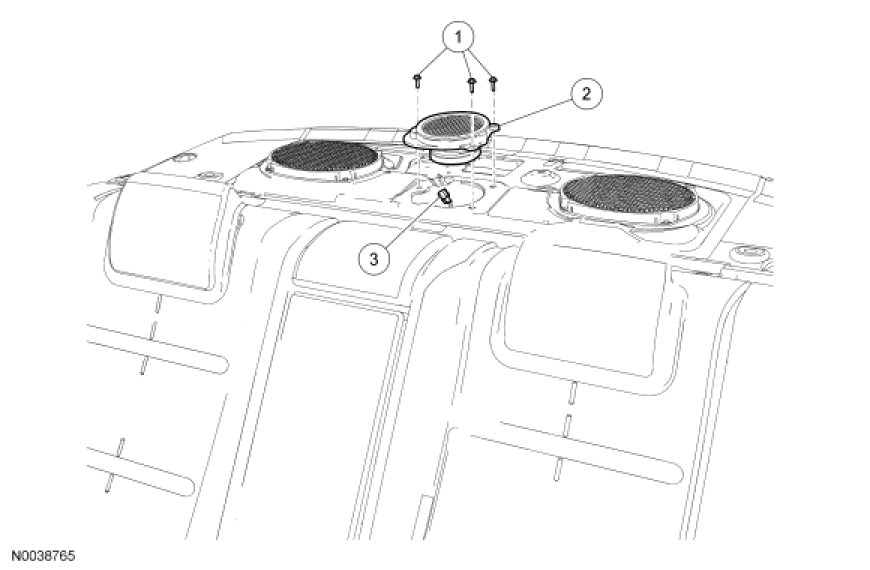

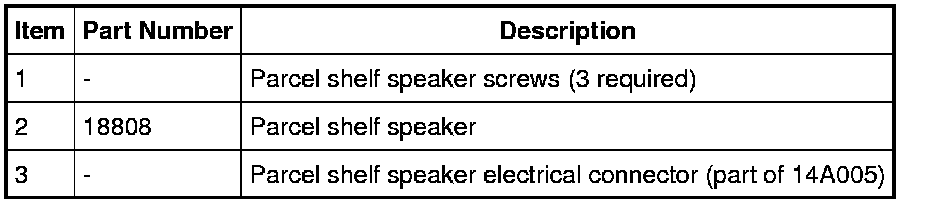

2. Remove the 3 screws and the parcel shelf speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
