Extension Housing Gasket

Extension Housing Gasket













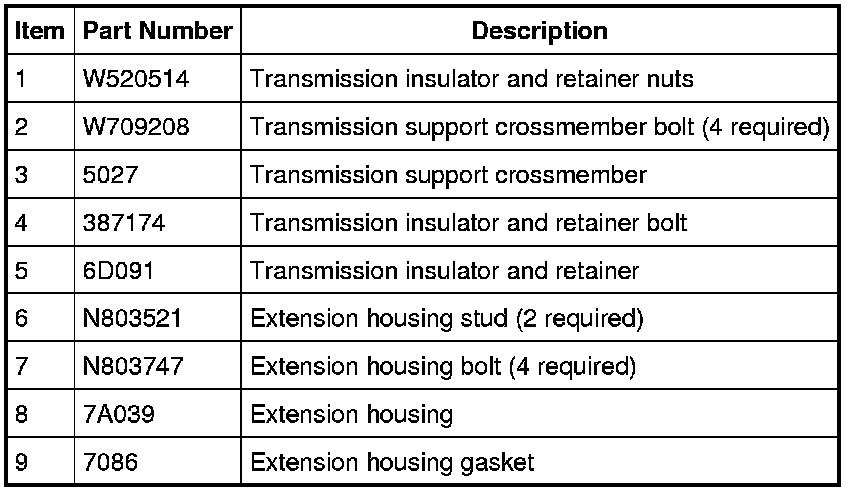

Removal

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury. Procedures

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the driveshaft. For additional information, refer to Driveshaft Removal and Replacement.

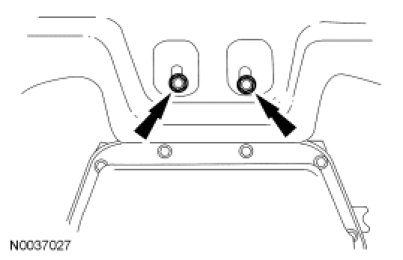

3. Remove the transmission insulator and retainer nuts.





4. Remove the exhaust system. For additional information, refer to Exhaust System [1][2]Diagrams.

5. Install a suitable transmission jack.

6. Remove the transmission support crossmember. For additional information, refer to Transmission Support Crossmember Service and Repair.

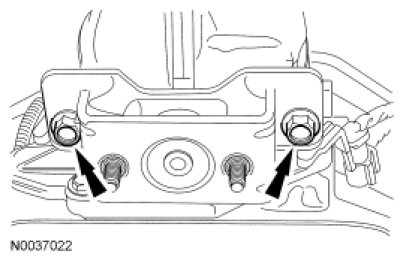

7. Remove the transmission insulator and retainer bolts.

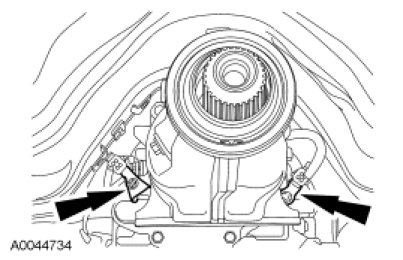

8. Remove the LH and RH catalyst monitor connector retainers.

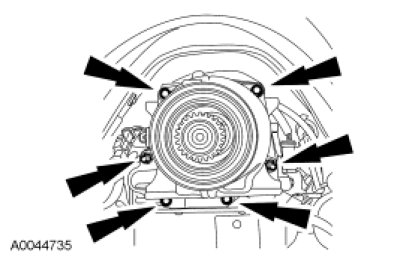

9. Remove the extension housing bolts and the extension housing.





10. Remove the extension housing gasket.





Installation

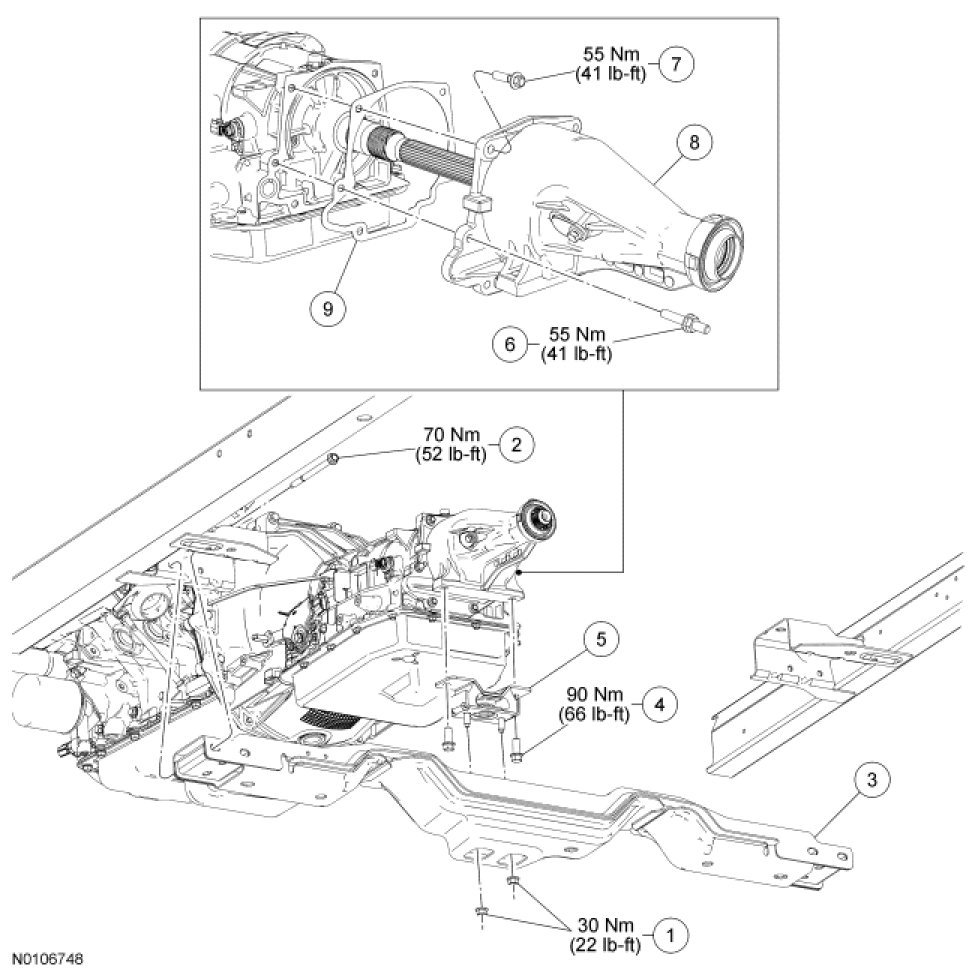

1. Install a new extension housing gasket.

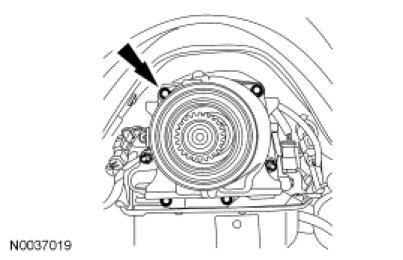

2. Install the extension housing and the bolts.
- Tighten to 55 Nm (41 lb-ft).





3. Install the LH and RH catalyst monitor connector retainers.





4. Install the transmission insulator and retainer and the transmission insulator and retainer bolts.
- Tighten to 90 Nm (66 lb-ft).





5. Install the transmission support crossmember. For additional information, refer to Transmission Support Crossmember Service and Repair.

6. Lower the transmission onto the transmission support crossmember and install the transmission insulator nuts.
- Tighten to 30 Nm (22 lb-ft).





7. Remove the transmission jack.

8. Install the exhaust system. For additional information, refer to Exhaust System [1][2]Diagrams.

9. Install the driveshaft. For additional information, refer to Driveshaft Removal and Replacement.

10. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury Description and Operation.

Check the transmission fluid level. For additional information, refer to Transmission Fluid Drain and Refill Transmission Fluid Drain and Refill.
