Transmission Cooling

Transmission Cooling

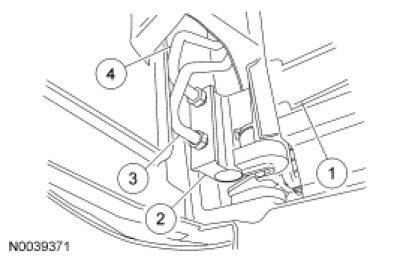

The transmission fluid cooler contains a thermostatic bypass valve and is part of the A/C condenser core, with the bottom rows of the A/C condenser being used as the transmission fluid cooler. The transmission fluid cooler cannot be serviced separately.

- When the transmission fluid is cold the thermostatic bypass valve is closed and will not allow transmission fluid to circulate through the transmission fluid cooler.
- As the Transmission Fluid Temperature (TFT) increases, the thermostatic bypass valve opens and allows transmission fluid to circulate through the transmission fluid cooler.
