Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

Transmission Filler Tube









Removal and Installation

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury. Procedures

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

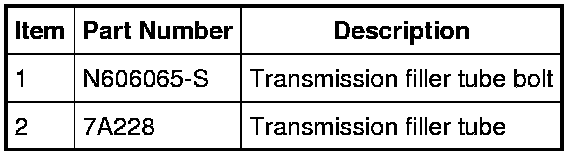

2. Remove the transmission filler tube bolt.





3. Remove the transmission filler tube.





4. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury. Description and Operation

To install, reverse the removal procedure. If equipped with a fire suppression system, repower the system.
- Tighten to 48 Nm (35 lb-ft).
