4R70E/4R75E

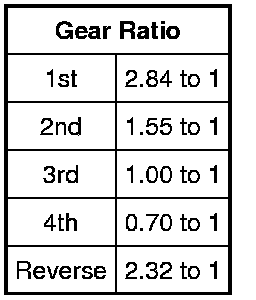

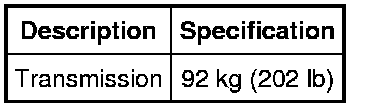

Assembly Weight

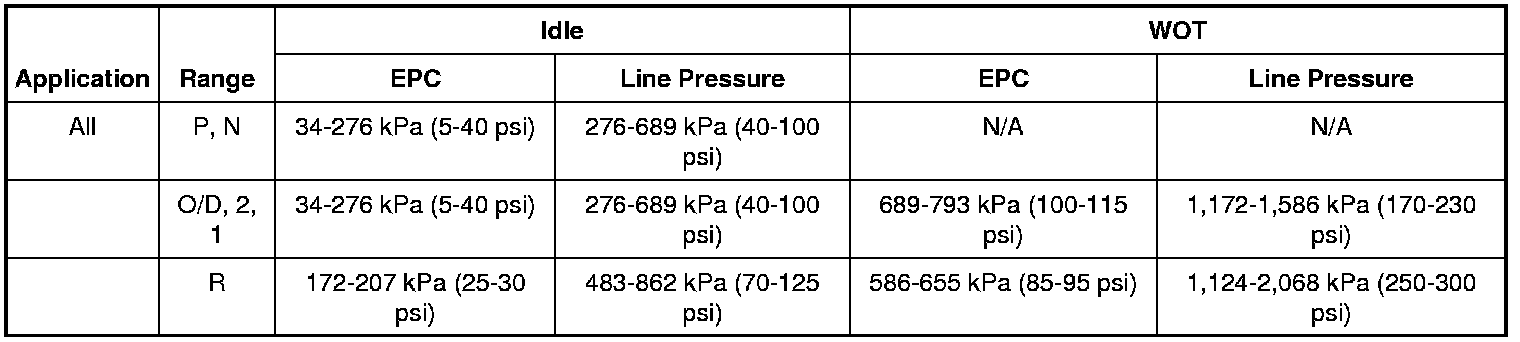

Line Pressure Chart

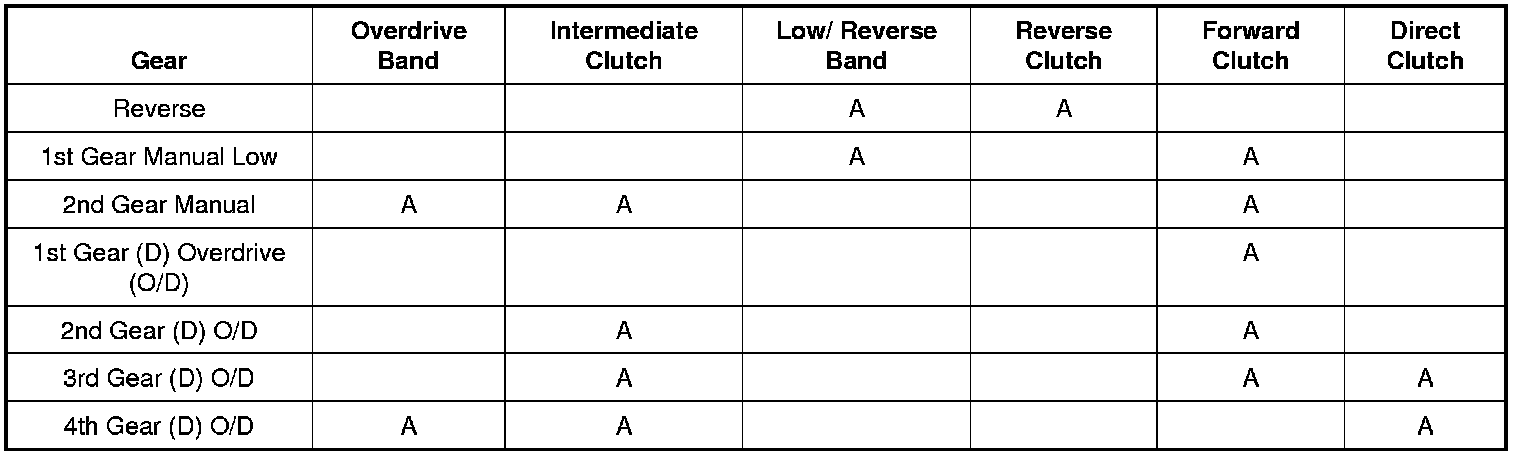

Band and Clutch Application Chart A





A = Applied

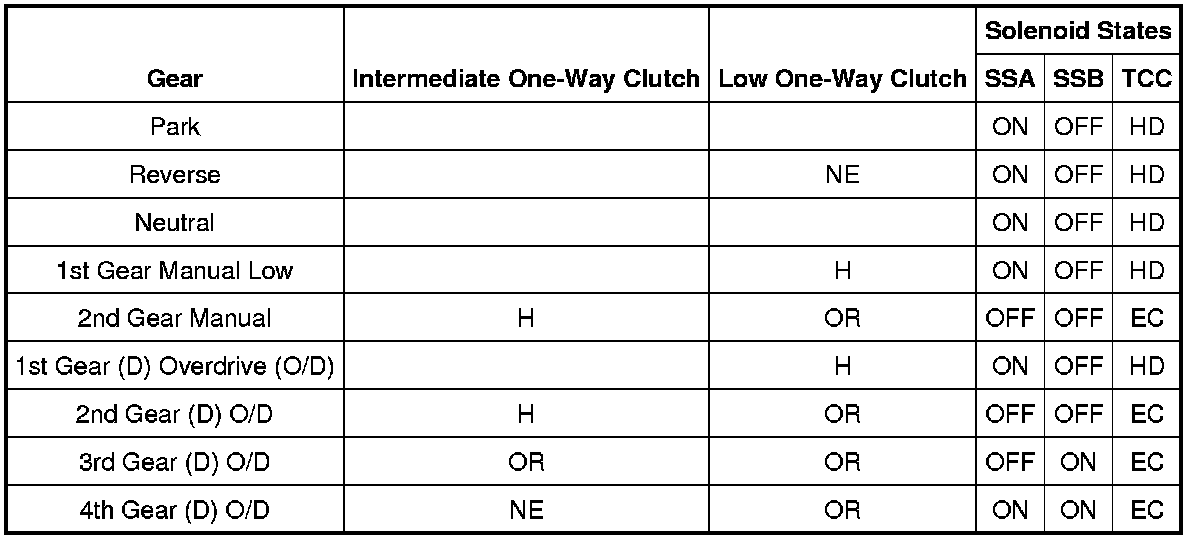

Band and Clutch Application Chart B





HD = Hydraulically Disabled

NE = No Effect

H = Hold

EC = Electronically Controlled

OR = Overrunning

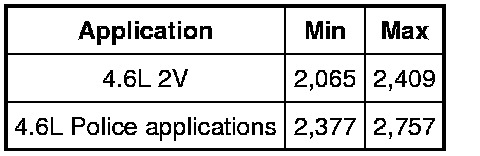

Stall Speed

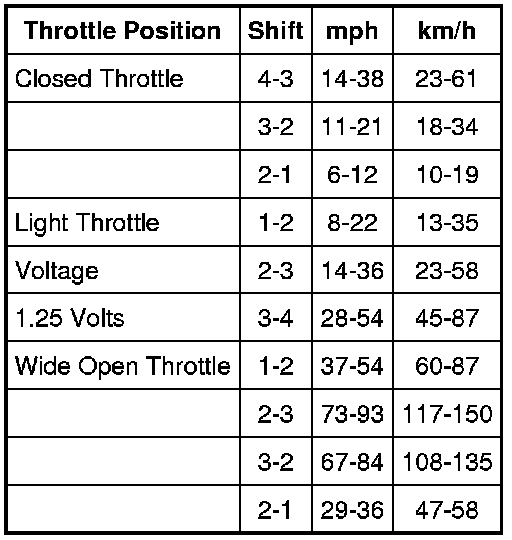

Shift Speed Chart

NOTE: Shift speed ranges are approximate for all applications. For specific applications (engine, axle ratio and application), refer to the Automatic Transmission Specification booklet. Do not exceed local speed laws.






Sensor Resistance Readings

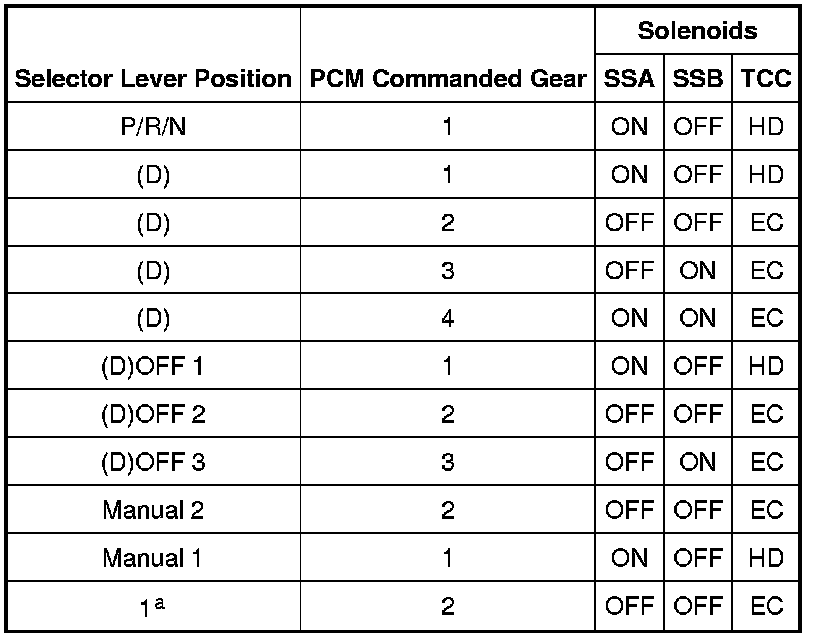

Solenoid Operation Chart





a When a manual pull-in occurs above a calibrated speed, the transmission will not downshift from the higher gear until the vehicle speed drops below this calibrated speed.
EC = Electronically Controlled

HD = Hydraulically Disabled

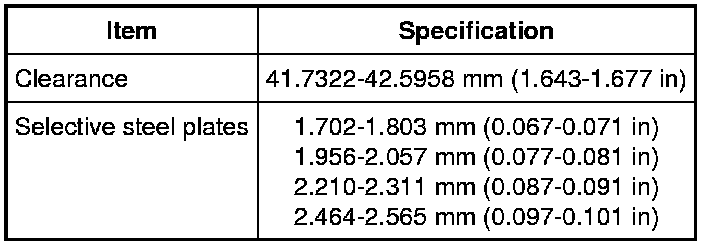

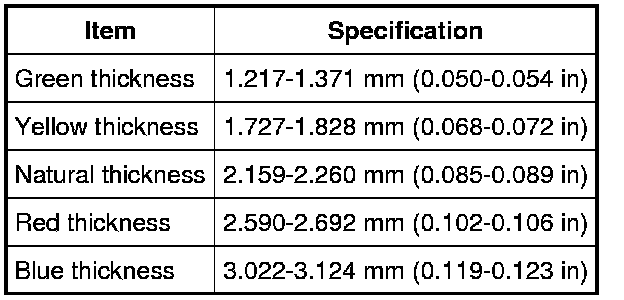

Selective Thrust Washer - No. 1 (7D014)

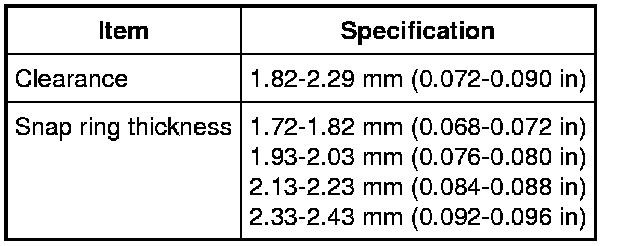

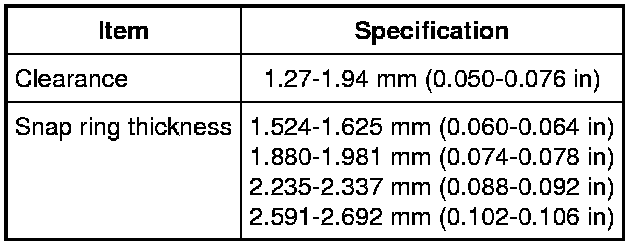

Forward Clutch Pack





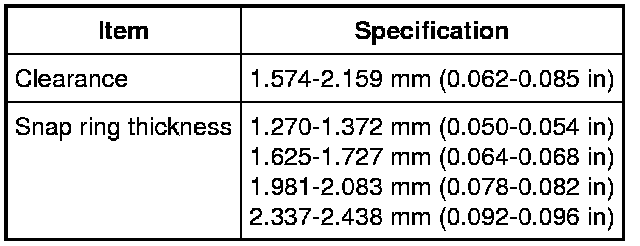

Reverse Clutch Pack





Direct Clutch Pack





Intermediate Clutch Pack

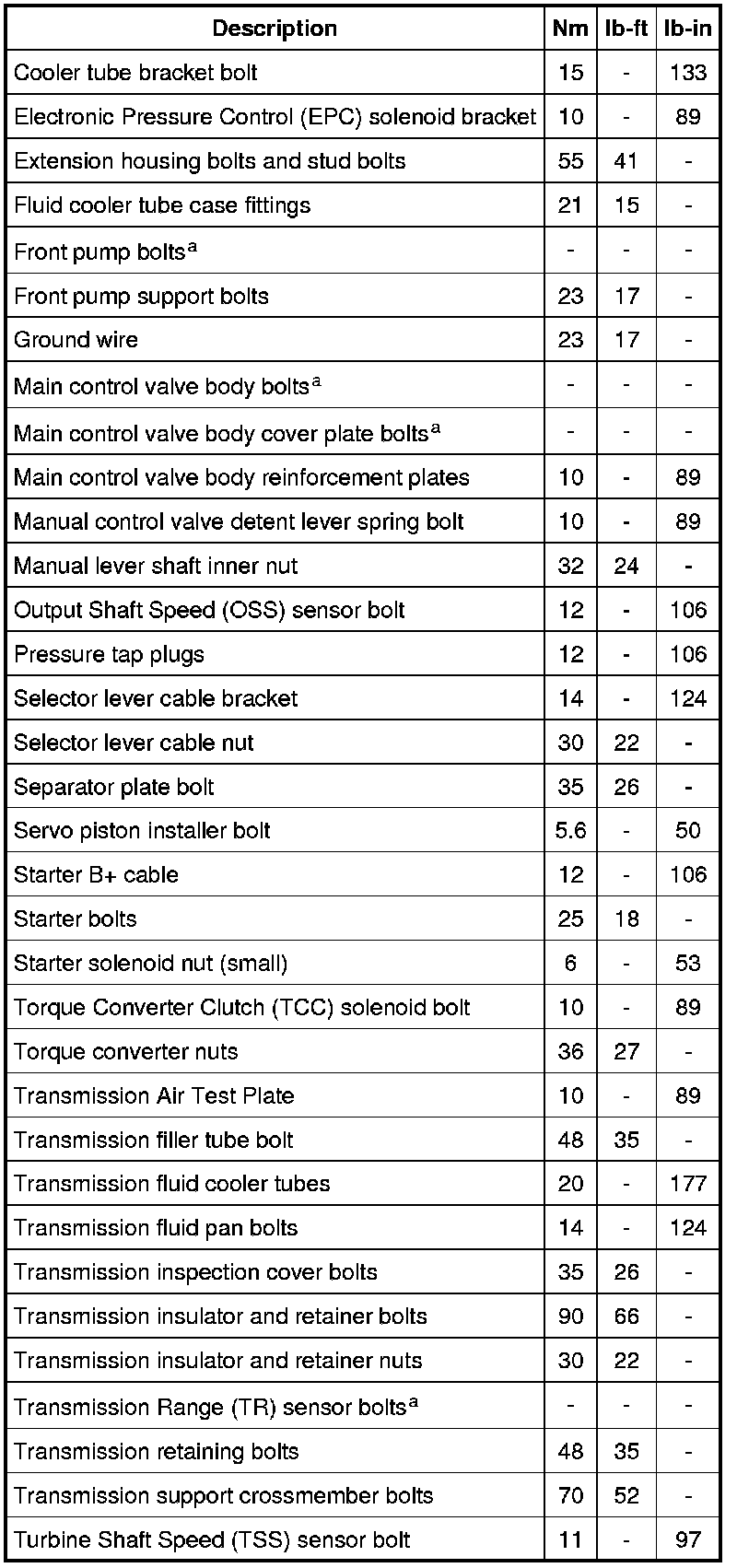

Torque Specifications





a Refer to the procedure.
