Suspension Control Pressure Sensor/Switch: Service and Repair

Air Suspension Switch









Removal and Installation

WARNING: Any air spring which is unfolded must be refolded prior to being installed in a vehicle. Refer to the procedure. An incorrectly folded air spring could rupture, altering the handling characteristics of the vehicle. If a vehicle has been driven with an incorrectly folded air spring, a new air spring must be installed. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

1. Turn the air suspension service switch to the OFF position.

2. Peel back the luggage compartment trim in the following sequence.

1. Remove the pushpins.

2. Peel back the luggage compartment trim.

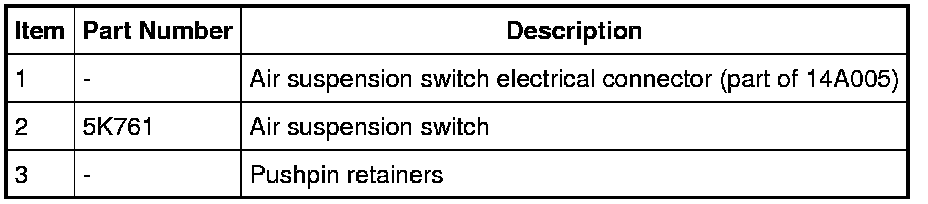

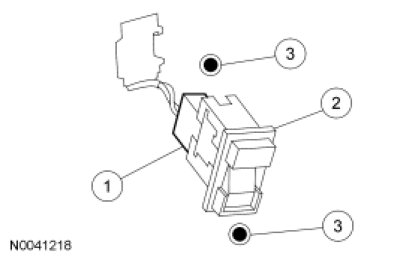

3. Remove the air suspension switch in the following sequence.

1. From behind the quarter panel reinforcement, depress the clips.

2. Remove the air suspension switch.

4. Disconnect the air suspension switch electrical connector.

5. To install, reverse the removal procedure.
