Ride Height Sensor: Service and Repair

Suspension Height Sensor

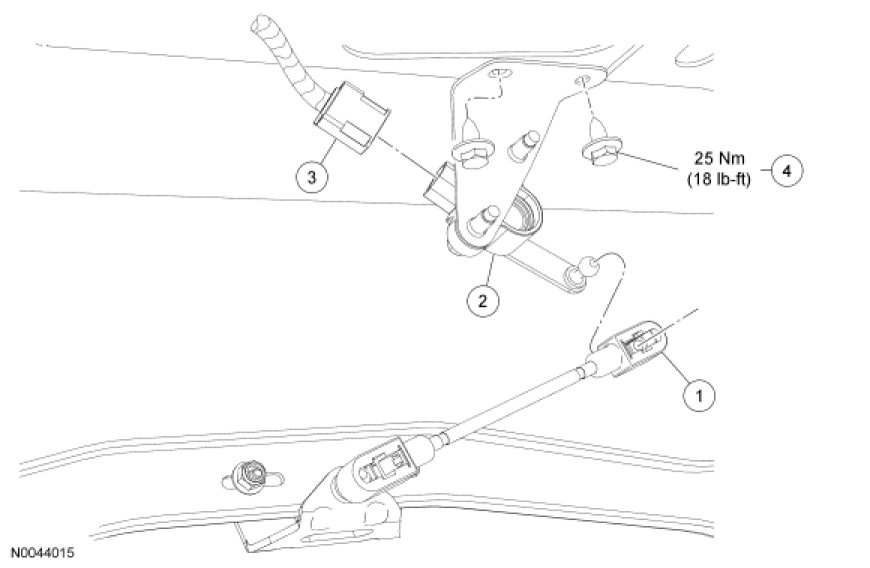

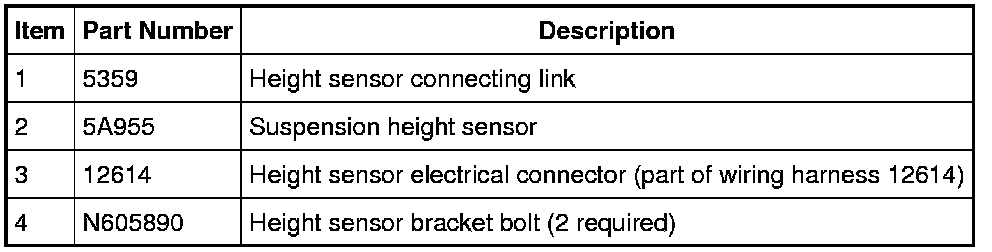

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Disconnect the suspension height sensor electrical connector.

3. Disconnect the suspension height sensor connecting link.

4. Remove the 2 height sensor bracket bolts and the height sensor.
- To install, tighten to 25 Nm (18 lb-ft).

5. To install, reverse the removal procedure.

6. Adjust the height sensor. For additional information, refer to Ride Height Adjustments Ride Height Adjustments.
