Ignition Lock Cylinder - Functional

Ignition Lock Cylinder - Functional

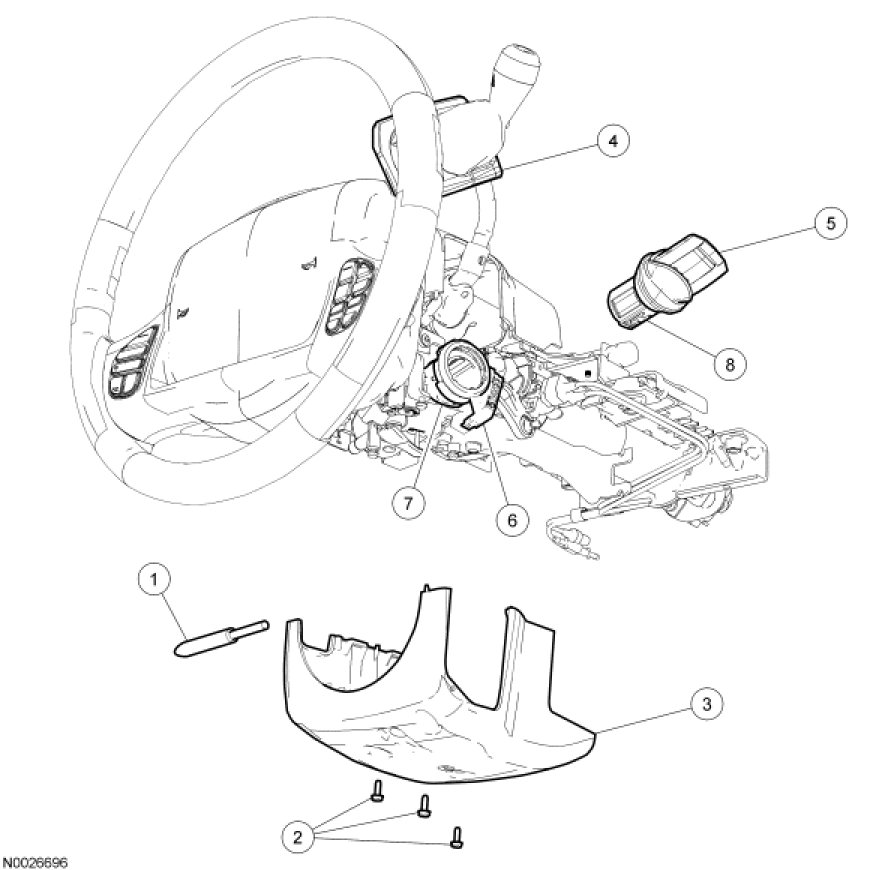

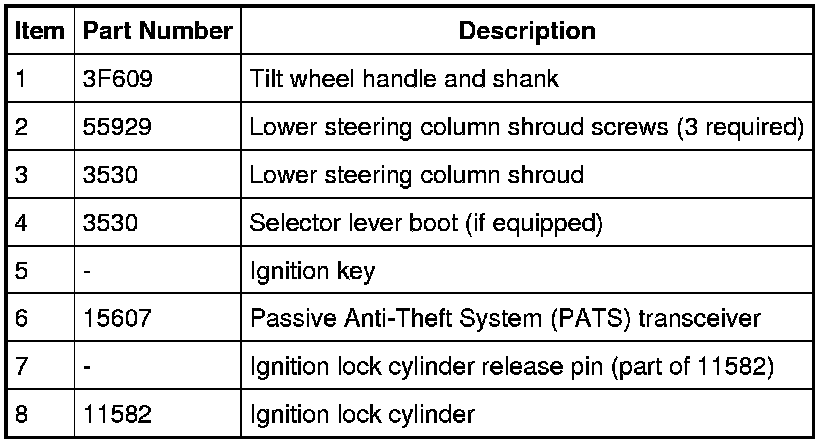

Removal

1. Remove the steering column shroud. For additional Information, refer to Steering Column Steering Column Shroud.

2. If equipped, position the selector lever boot aside.

3. Insert the ignition key and position the ignition lock cylinder to the RUN position.

4. Release the 2 Passive Anti-Theft System (PATS) transceiver tabs and rotate the PATS transceiver In order to access to the ignition lock cylinder release pin hole.

5. Using a suitable tool, depress the ignition lock cylinder release pin through the access hole while pulling the ignition lock cylinder outward.

Installation

1. Make sure the ignition lock cylinder is in the RUN position.

2. Insert the ignition lock cylinder into the ignition lock cylinder access hole located on the steering column.
- Make sure to align the locking pin with the locking pin access hole.

3. Rotate the Passive Anti-Theft System (PATS) transceiver and attach the 2 retaining tabs onto the steering column.

4. Install the steering column shroud. For additional Information, refer to Steering Column Steering Column Shroud.

5. Rotate the ignition key through all lock cylinder positions to check for correct operation.
