Brake Light Switch: Service and Repair

Stoplamp Switch

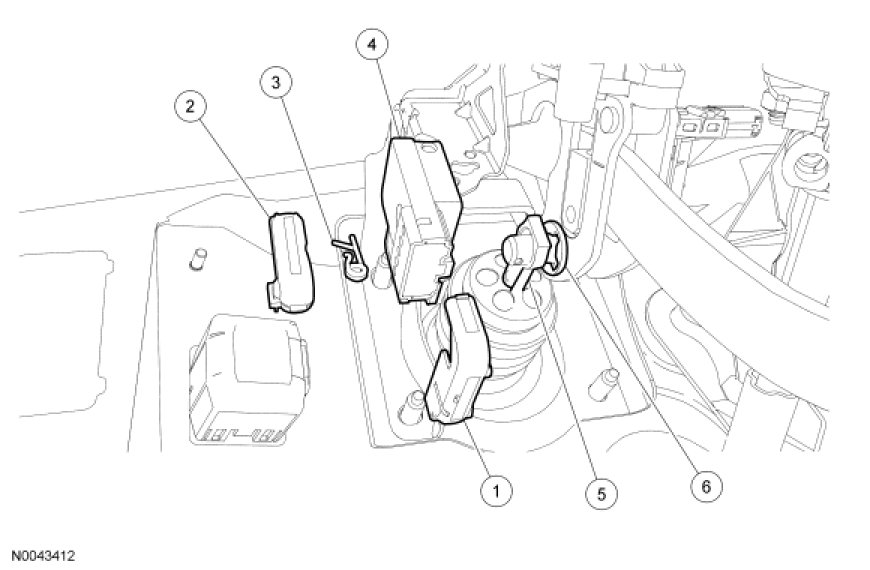

Removal and Installation

1. Disconnect the stoplamp switch electrical connector.

2. Remove the cover and the self-locking pin.

3. Remove the stoplamp switch from the brake booster push rod and brake pedal.

4. To install, reverse the removal procedure.
