Home >> Mercury >> 2011 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Refrigerant Pressure Sensor / Switch >> Diagrams >> C1081 A/C Cycling Switch

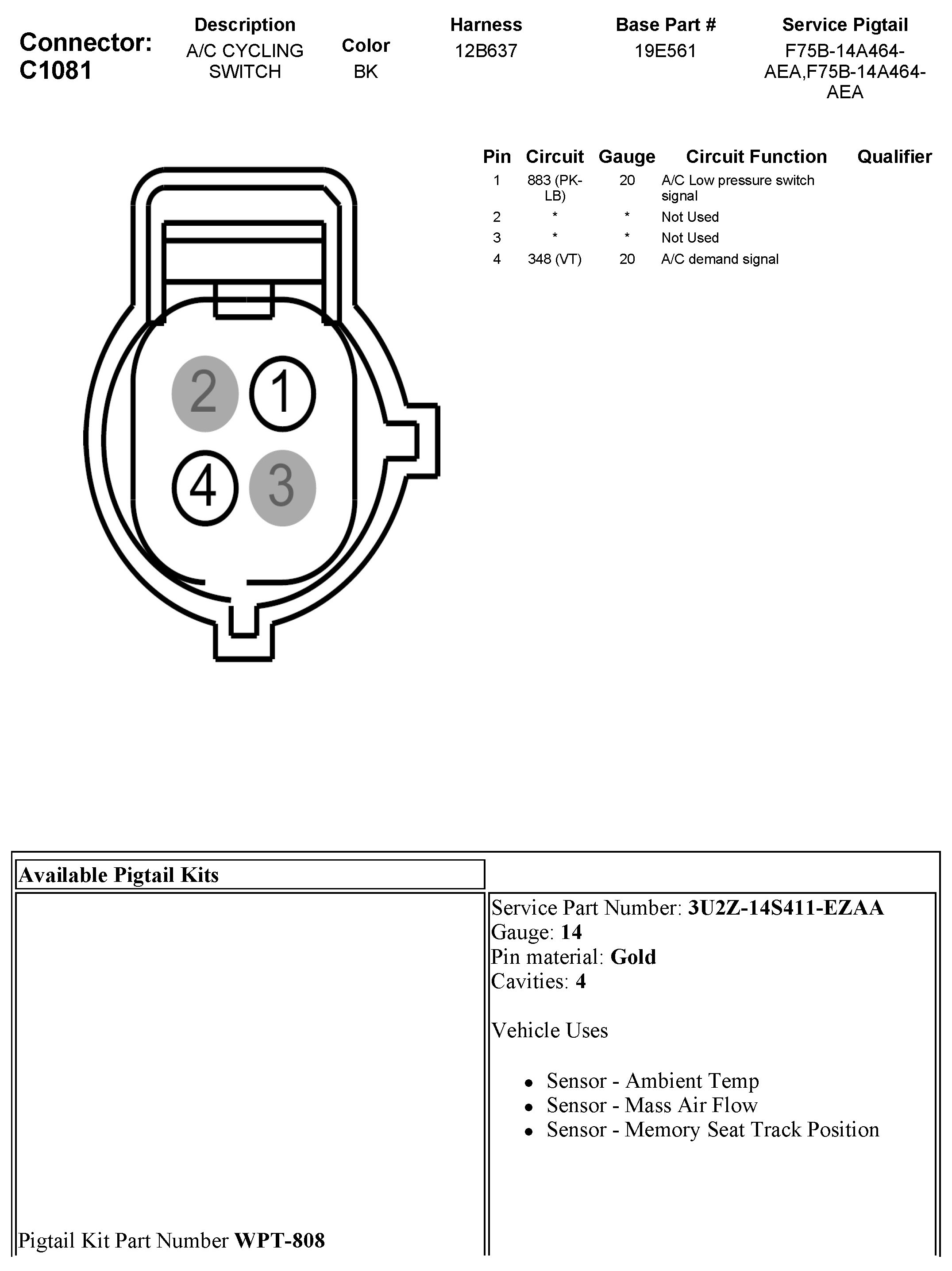

C1081 A/C Cycling Switch
