Seat Control Switch

Seat Control Switch

NOTE: Driver side shown, passenger similar.











Removal and Installation

1. Remove the front door trim panel. For additional information, refer to Interior Trim and Ornamentation Door Trim Panel - Front.

2. Remove the seat control switch.
- Separate the electrical connector and wire harness from the door panel.

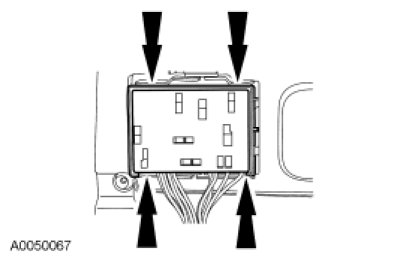

- Release the locking tabs in the door panel and remove the front seat control switch.





3. To install, reverse the removal procedure.
