Power Door Lock Switch: Service and Repair

Door Lock Control Switch

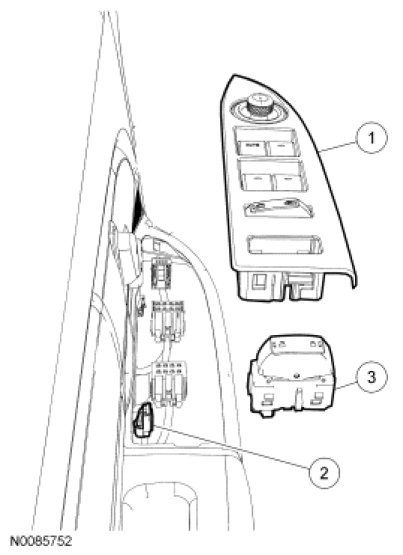

NOTE: Driver side shown, passenger side similar.











Removal and Installation

1. Lift up on the front of the switch plate to unclip it from the front door trim panel and position it aside.

2. Disconnect the electrical connectors.

3. Release the clips and remove the door lock control switch.

4. To install, reverse the removal procedure.
