FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2011
>>
Grand Marquis V8-4.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Diagrams
>>

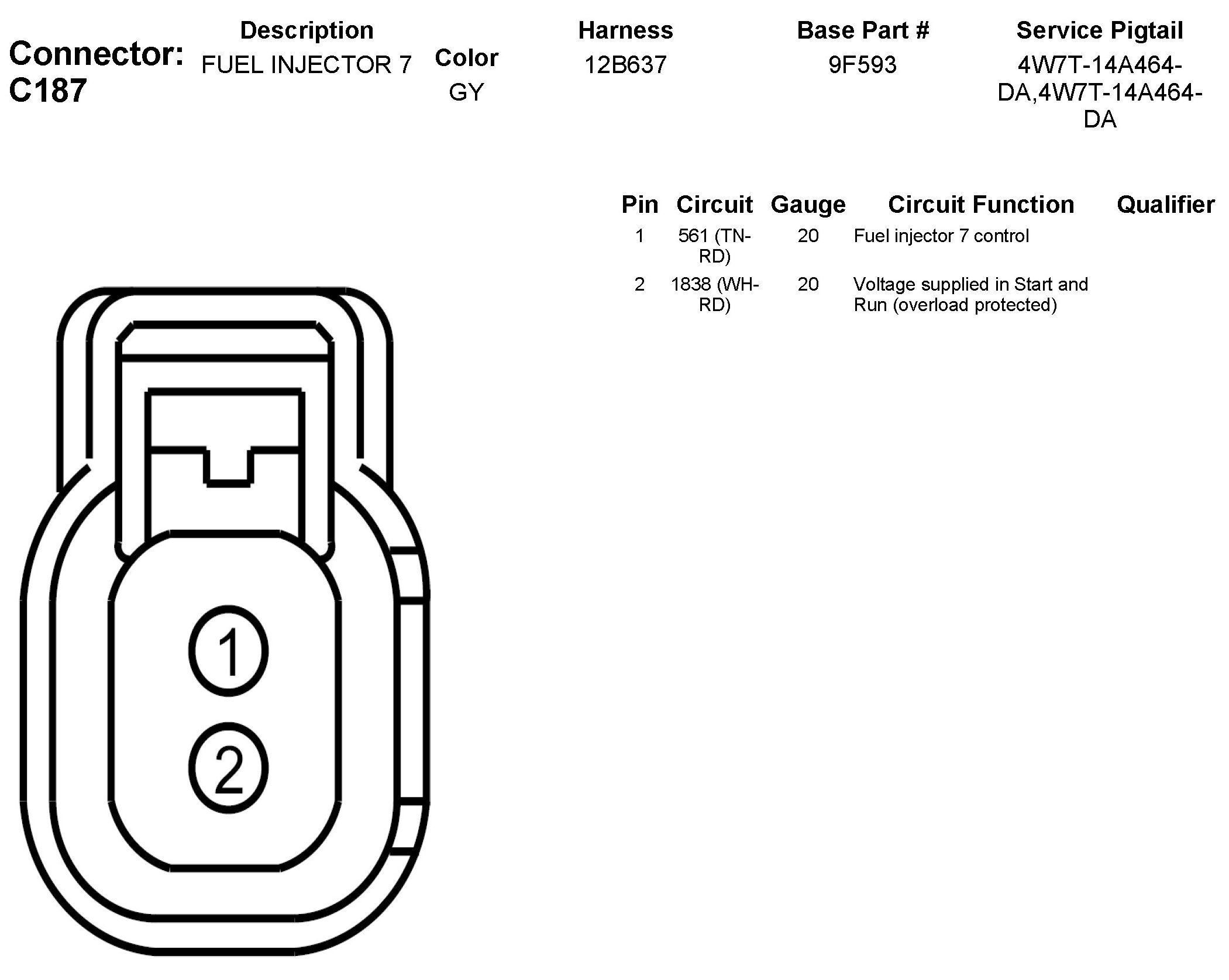

C187 Fuel Injector 7
C187 Fuel Injector 7
