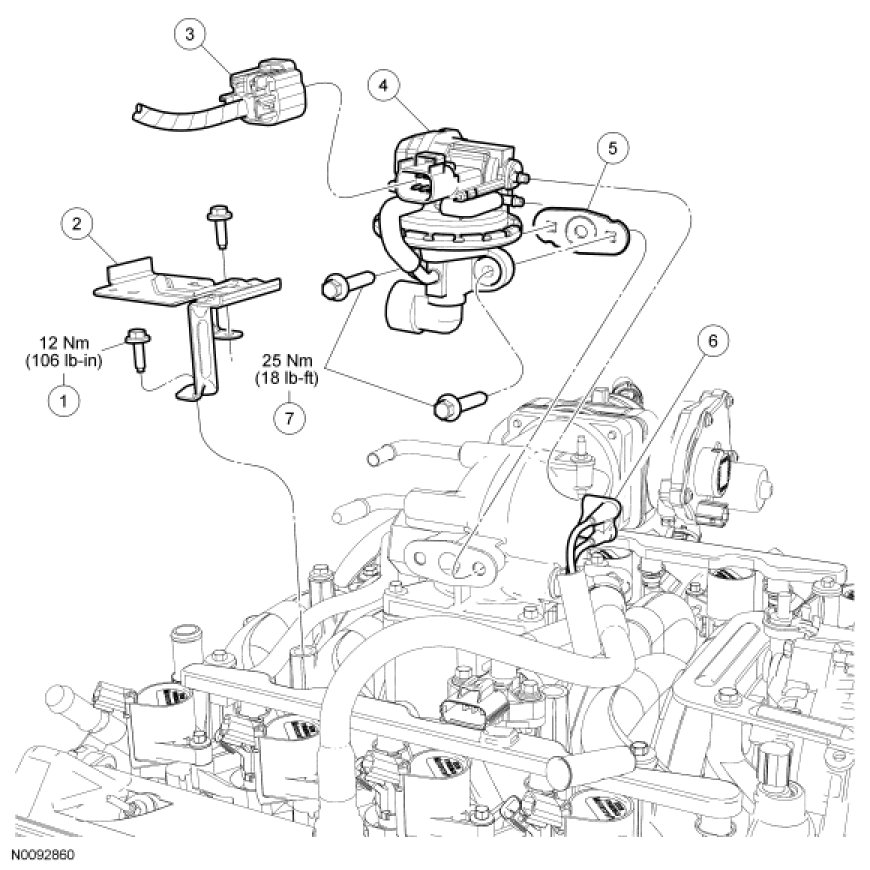

Exhaust Gas Recirculation (EGR) System Components - Exploded View

Exhaust Gas Recirculation (EGR) System Components - Exploded View

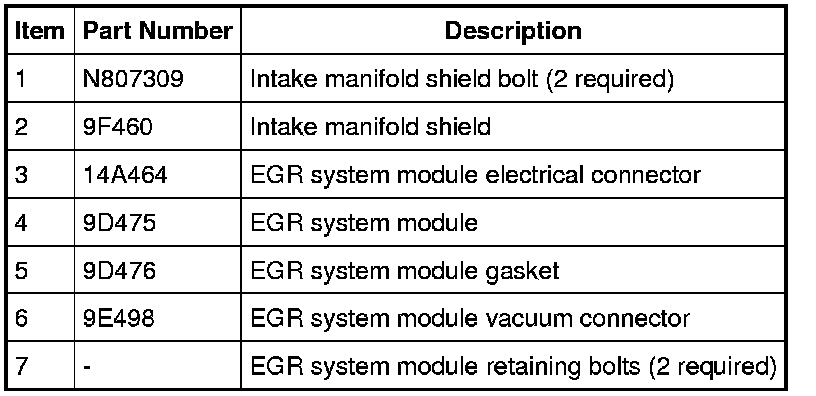

EGR System Module

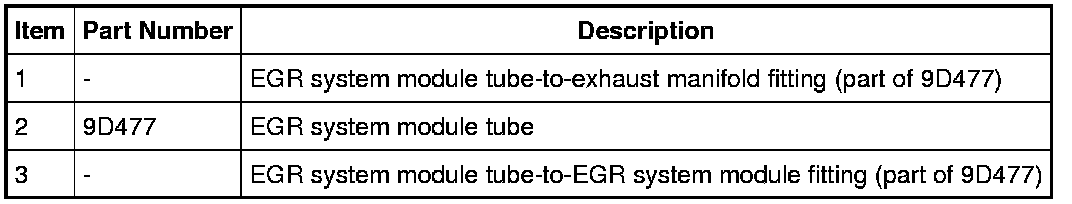

EGR System Module Tube
