Home >> Mercury >> 2011 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Module Configuration >> Inspection and Verification

Inspection and Verification




Module Configuration

Inspection and Verification

This provides step-by-step module configuration procedures. Carry out the Programmable Module Installation (PMI) Programming and Relearning procedure when another procedure directs to carry out configuration or when DTCs from the below list are present.

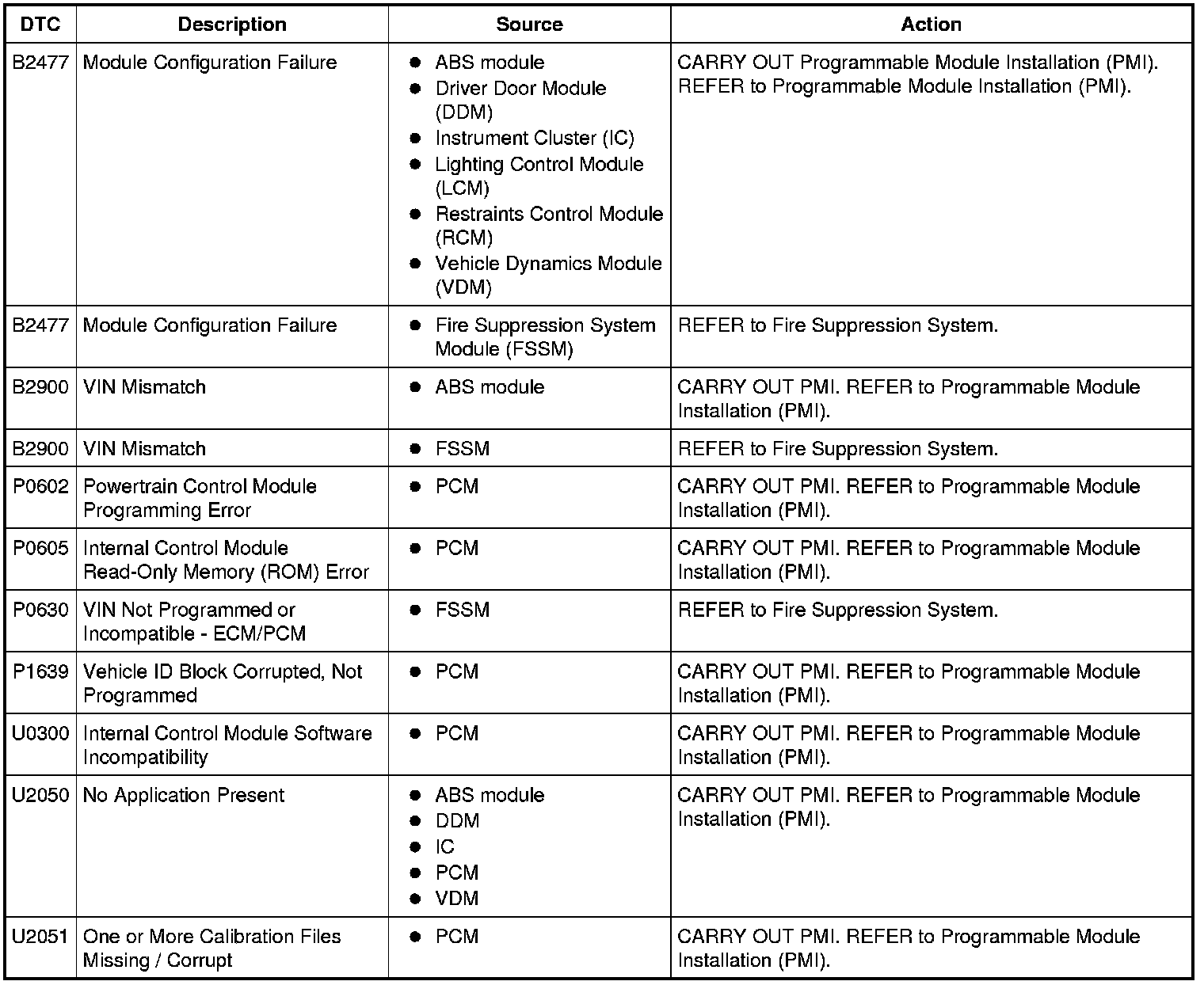

DTC Chart
