Home >> Mercury >> 2011 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Lighting Control Module (LCM) DTC Chart

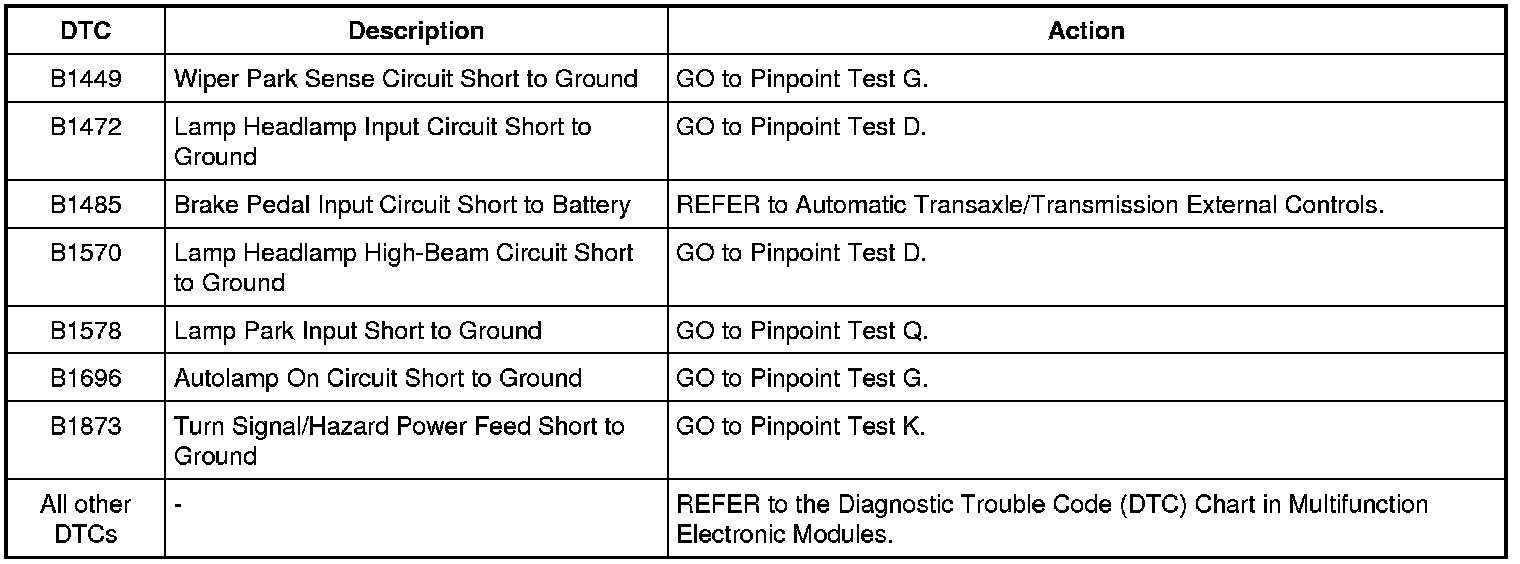

Lighting Control Module (LCM) DTC Chart

Diagnostic Trouble Code (DTC) Chart

Lighting Control Module (LCM) DTC Chart
