Fog/Driving Lamp Bulb: Service and Repair

Fog Lamp Bulb

















Removal and Installation

WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

NOTE: The fog lamp bulb should not be removed from the headlamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the fog lamp where they can settle on the lens and reflector. Never turn the fog lamps on with the bulb removed.

Make sure the ignition switch and the headlamp switch are in the OFF position.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

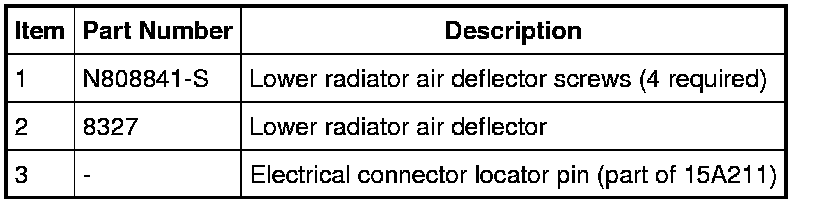

2. Remove the 4 screws and the lower radiator air deflector.
- Detach the electrical connector locator pin.

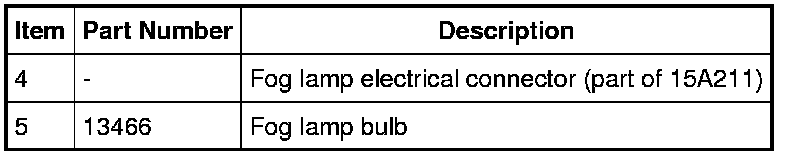

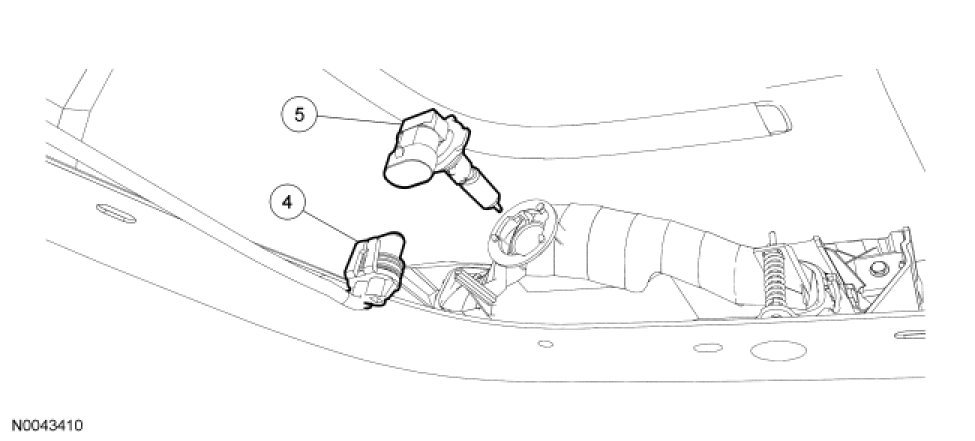

3. Disconnect the electrical connector and remove the fog lamp bulb.

4. To install, reverse the removal procedure.
