FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2011
>>
Grand Marquis V8-4.6L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Lamp
>>
Diagrams
>>
Connector Views
>>

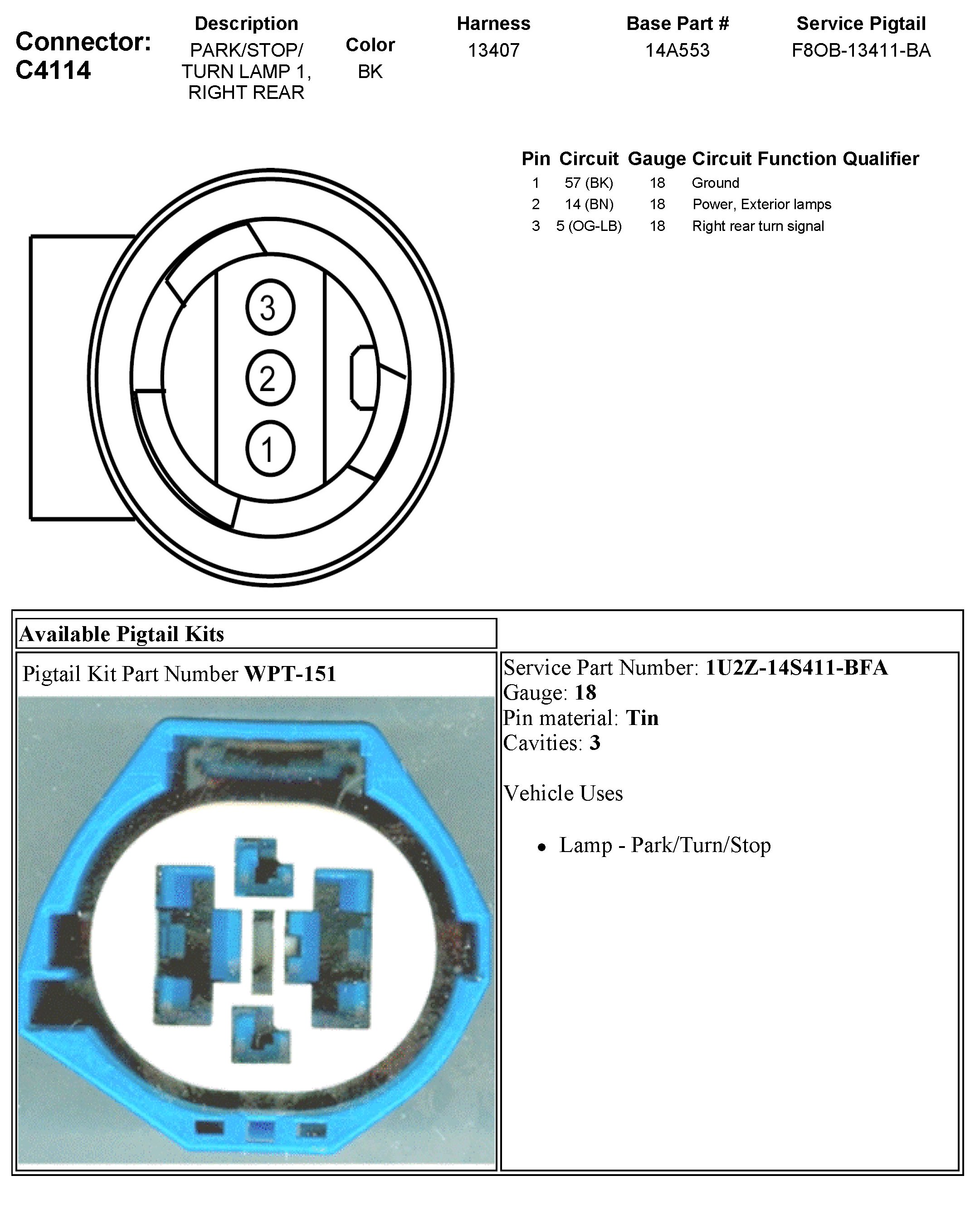

C4114 Park/Stop/Turn Lamp 1, Right Rear
C4114 Park/Stop/Turn Lamp 1, Right Rear
