Inspection and Verification

Reversing Lamps

Inspection and Verification

WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury Description and Operation.

1. Verify the customer concern.

2. Visually inspect for obvious signs of mechanical or electrical damage.

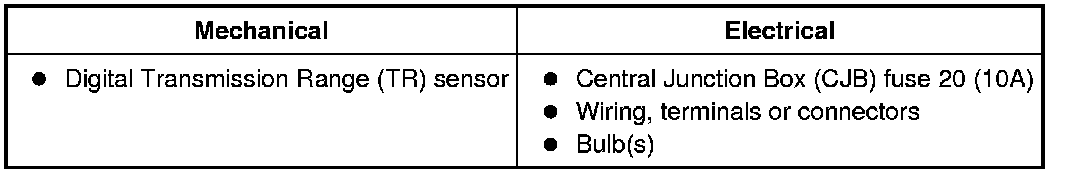

Visual Inspection Chart





3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. If the concern is not visually evident, verify the symptom. GO to Symptom Chart. Symptom Related Diagnostic Procedures
