Home >> Mercury >> 2011 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Locations

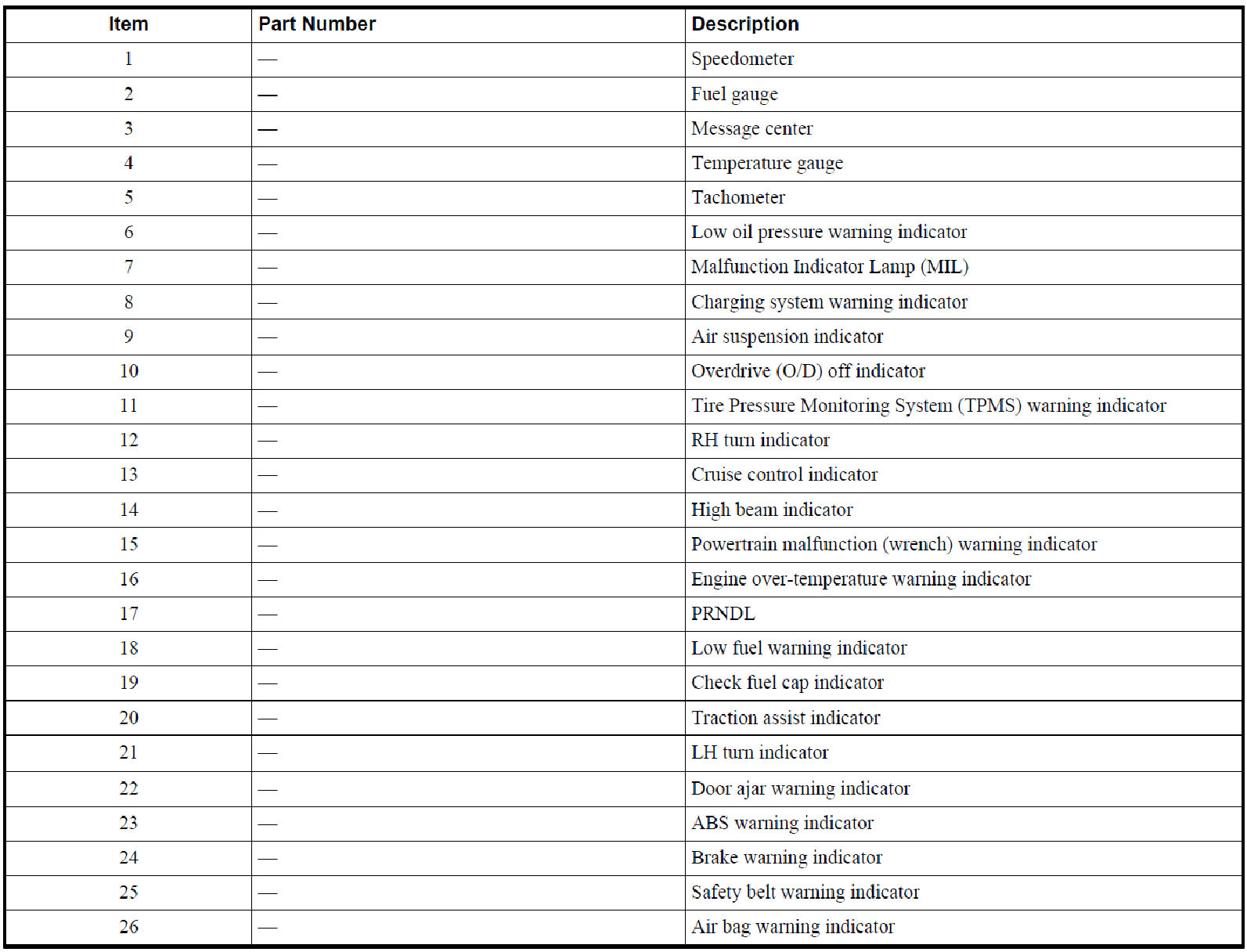

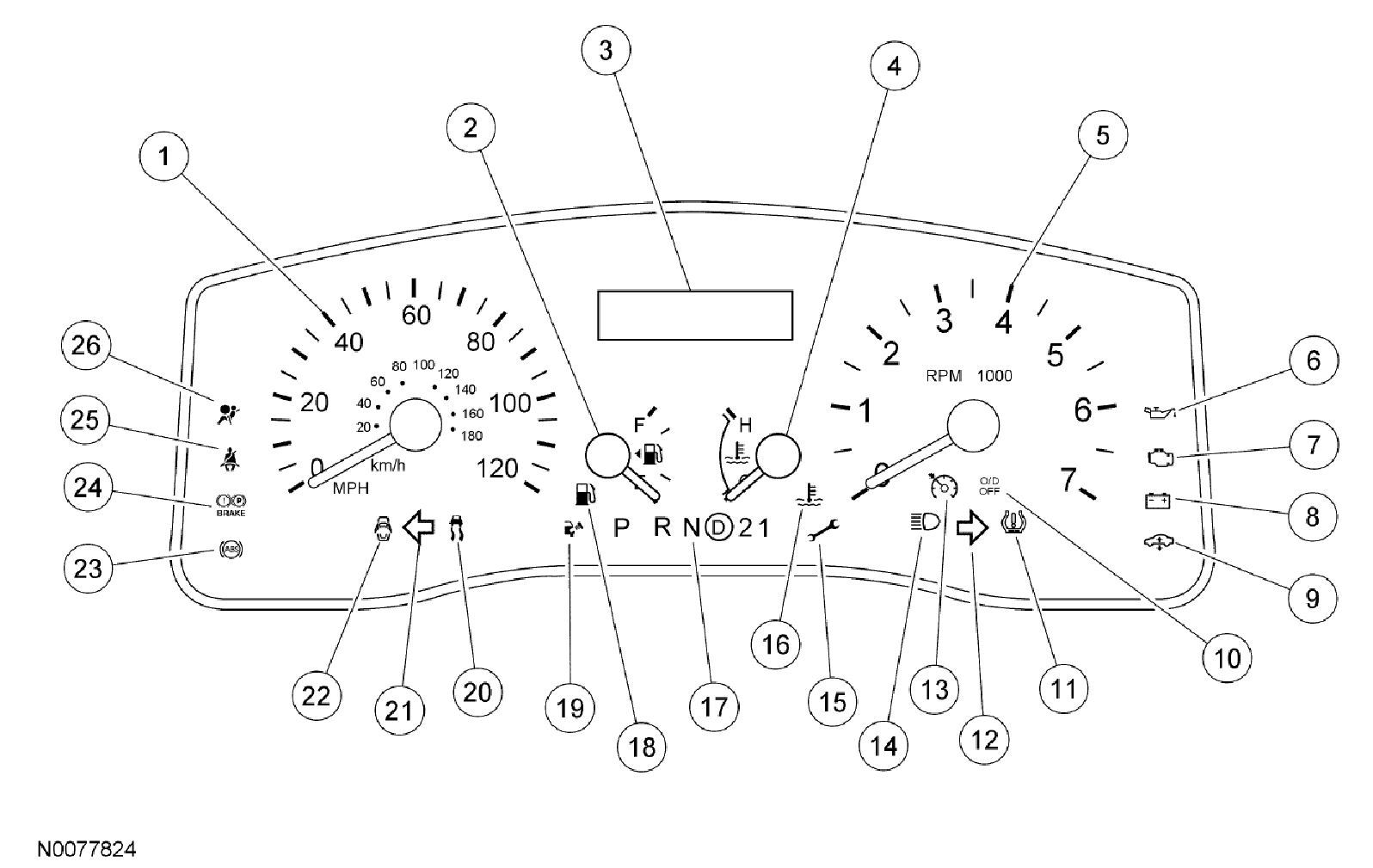

Instrument Cluster / Carrier: Locations

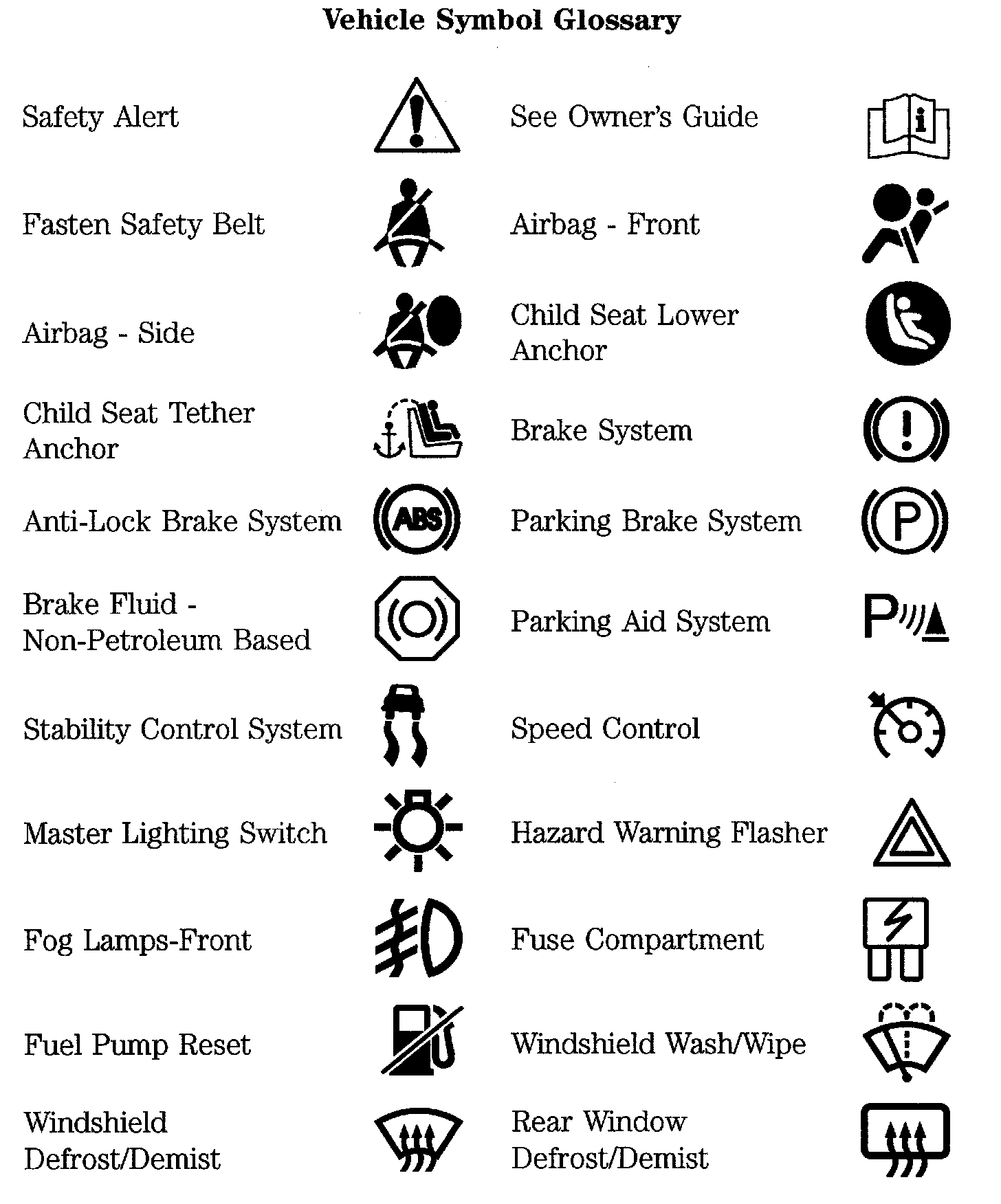

Vehicle Symbol Glossary Part 1 Of 2:

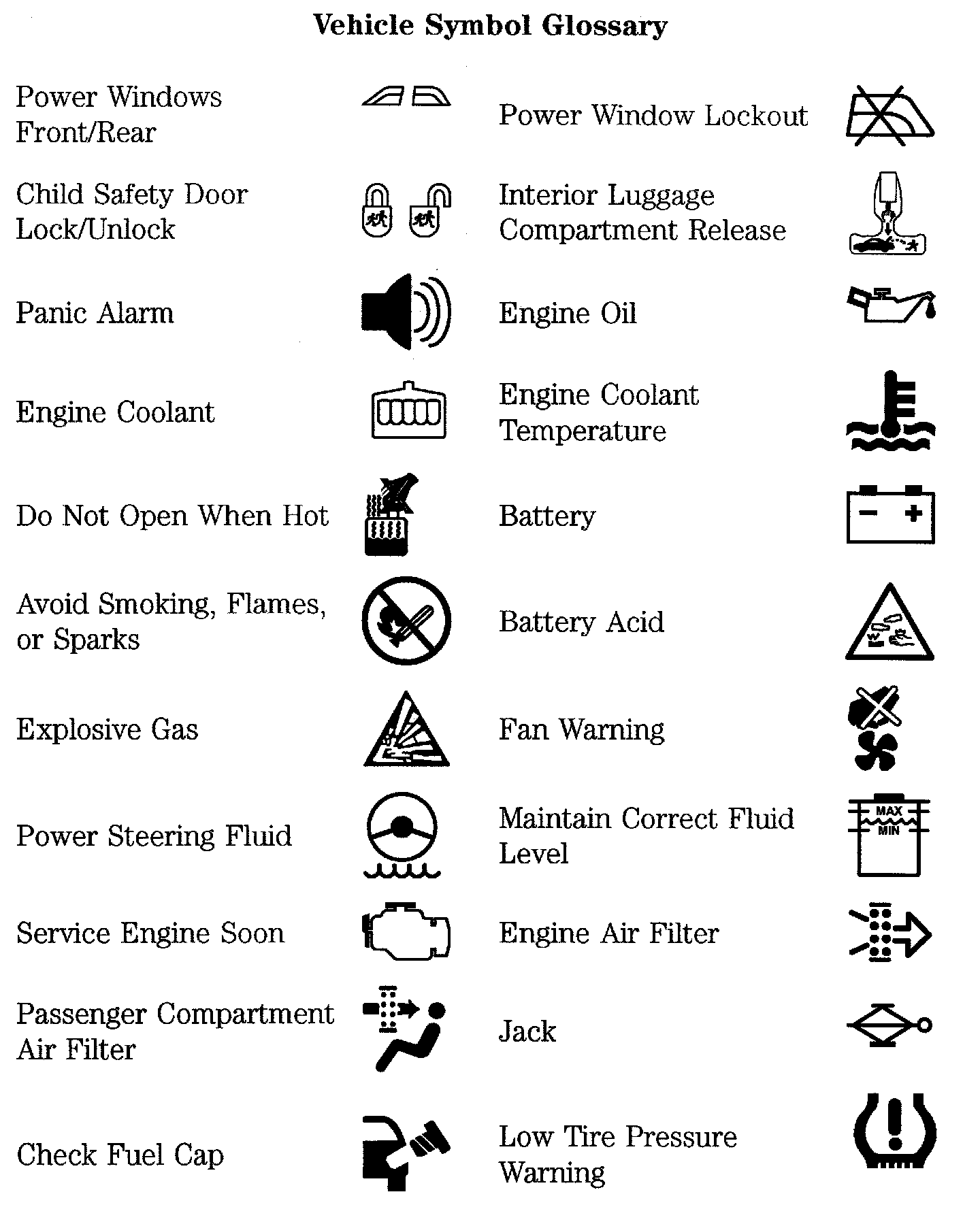

Vehicle Symbol Glossary Part 2 Of 2:
