Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal With Retainer Plate

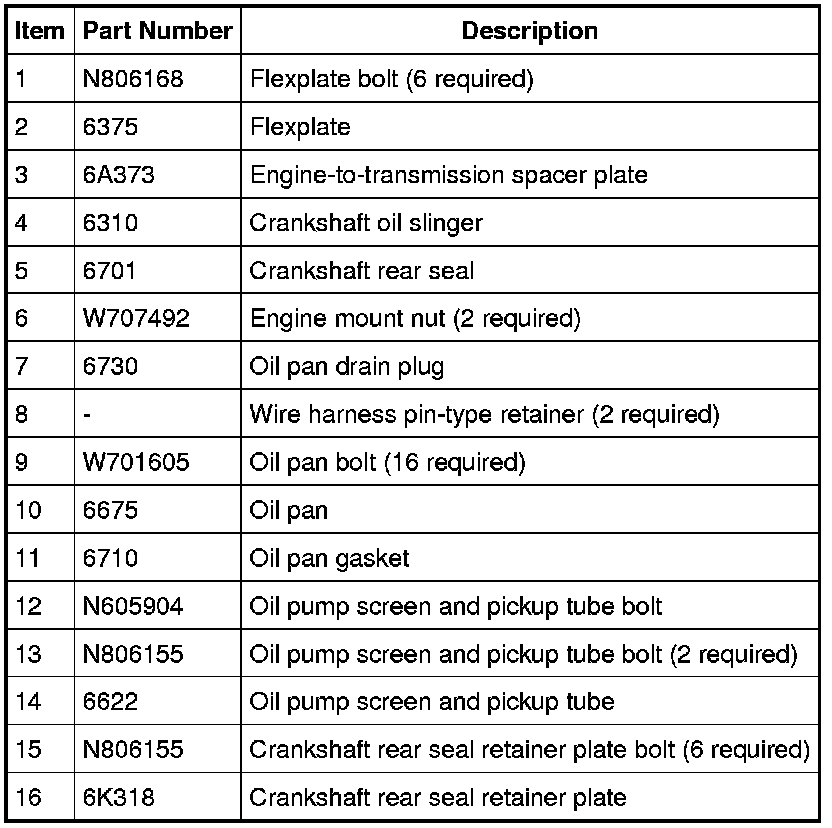

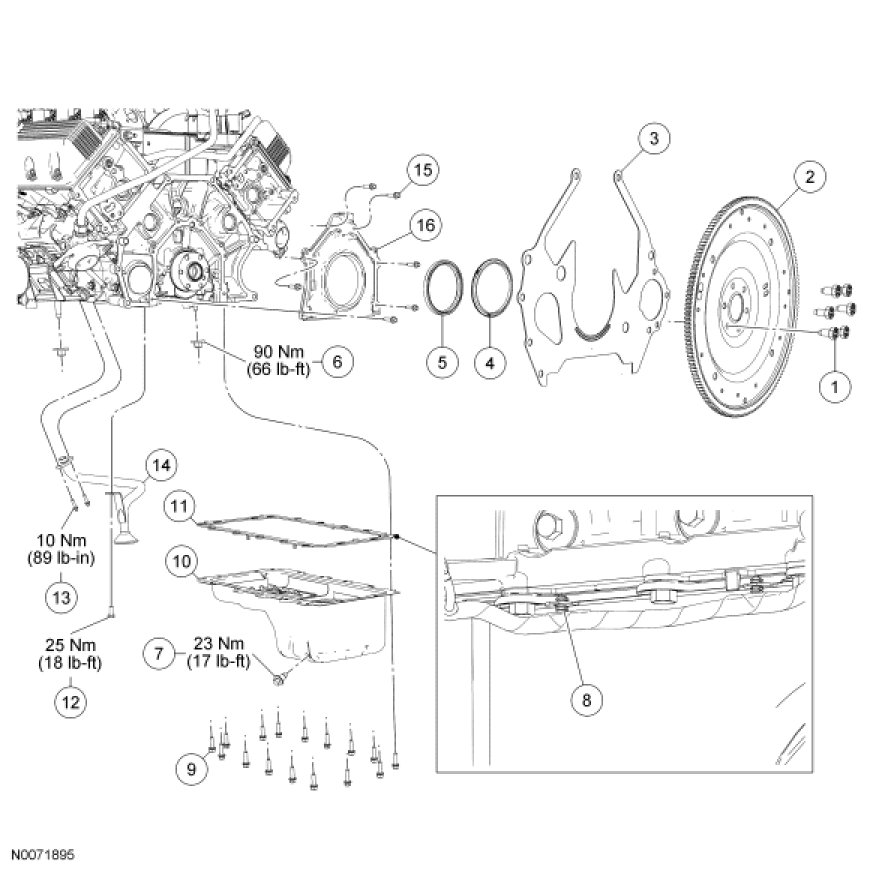

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate
