Engine Mount - LH

Engine Mount - LH

















Removal and Installation

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury. Procedures

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the generator. For additional information, refer to Charging System Service and Repair.

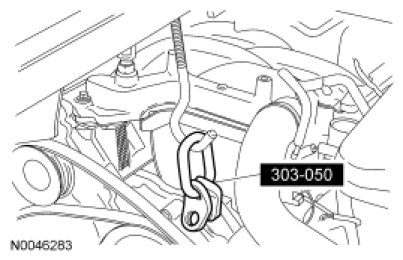

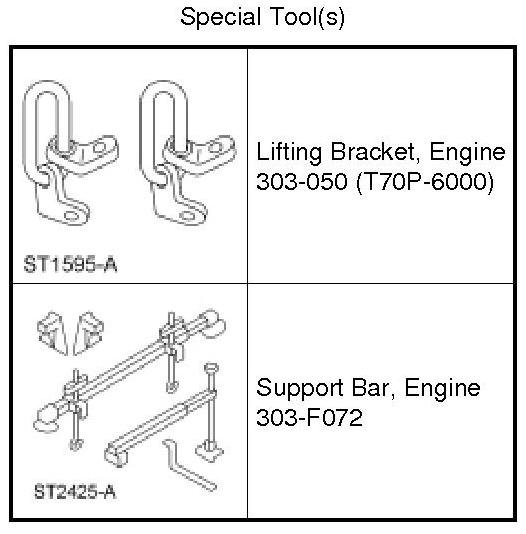

3. Install the Engine Lifting Bracket.

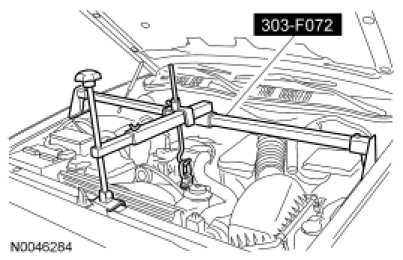

4. Install the Engine Support Bar.

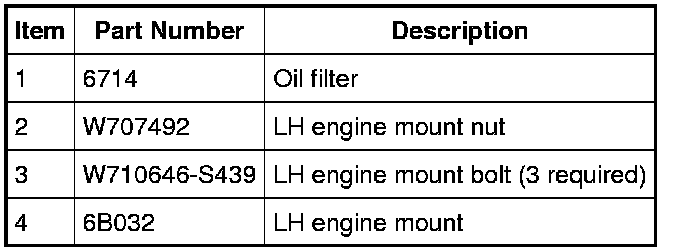

5. Remove the oil filter and discard.

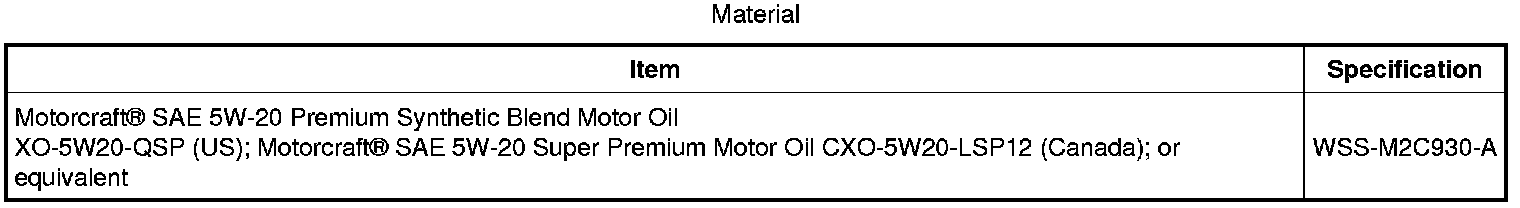

- Lubricate the new oil filter O-ring seal with clean engine oil prior to installation.

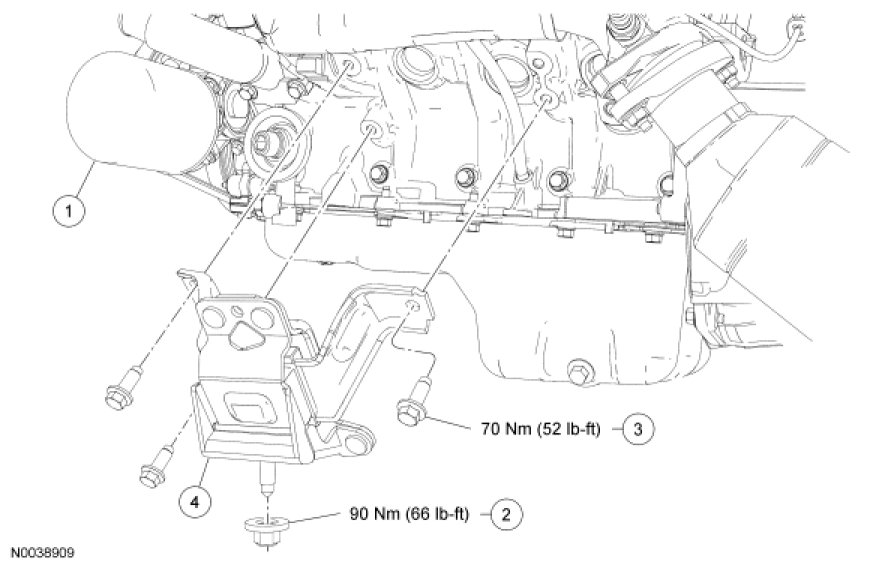

6. Remove the LH and RH lower engine mount nuts.
- To install, tighten to 90 Nm (66 lb-ft).

7. Using the Engine Support Bar, raise the engine.





8. Remove the 3 bolts and the LH engine mount.
- To install, tighten to 70 Nm (52 lb-ft).

9. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury. Description and Operation

To install, reverse the removal procedure. If equipped with a fire suppression system, repower the system.
