Home >> Mercury >> 2011 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Door Interior Handle

Front Door Interior Handle

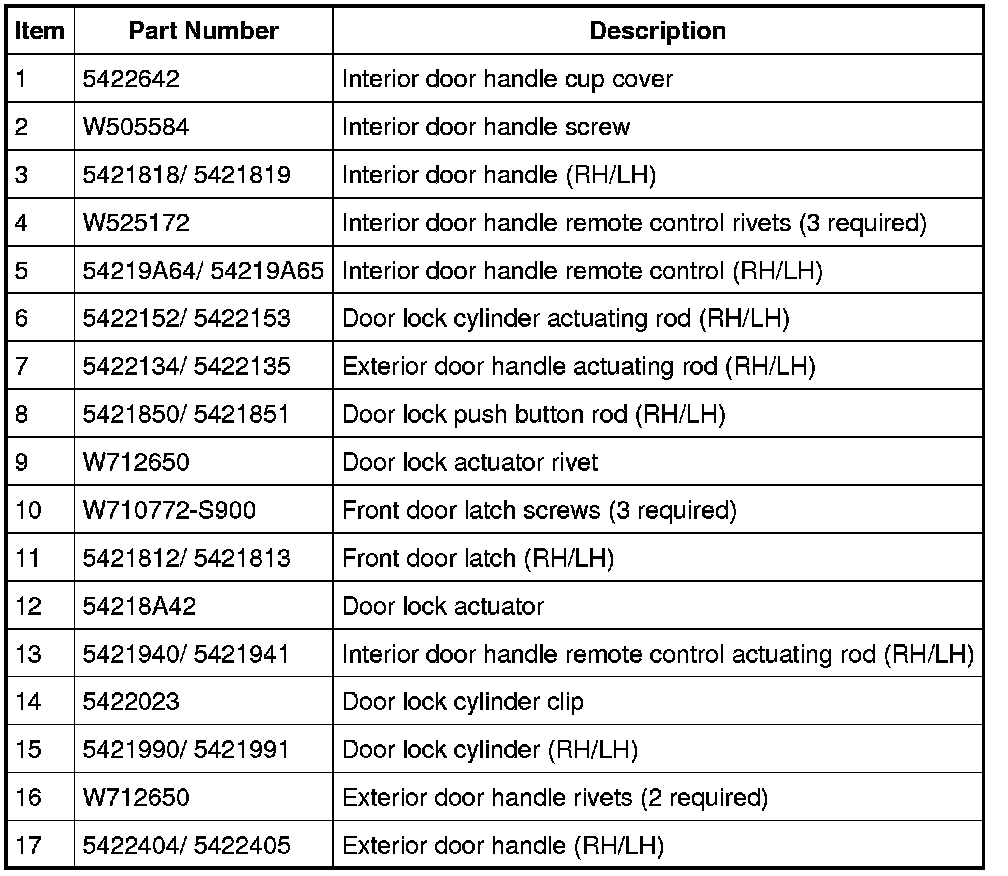

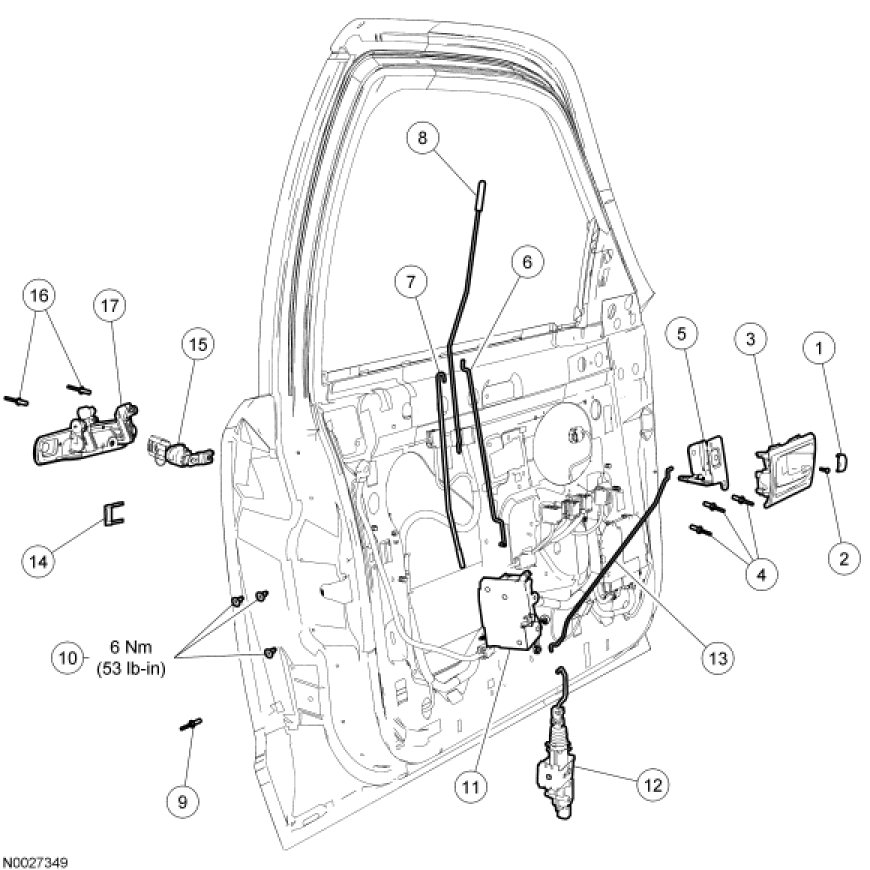

Front Door Handles, Locks and Latches - Exploded View
