Grand Marquis V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Main Control Valve Body
Main Control Valve Body
Main Control Valve Body
Disassembly

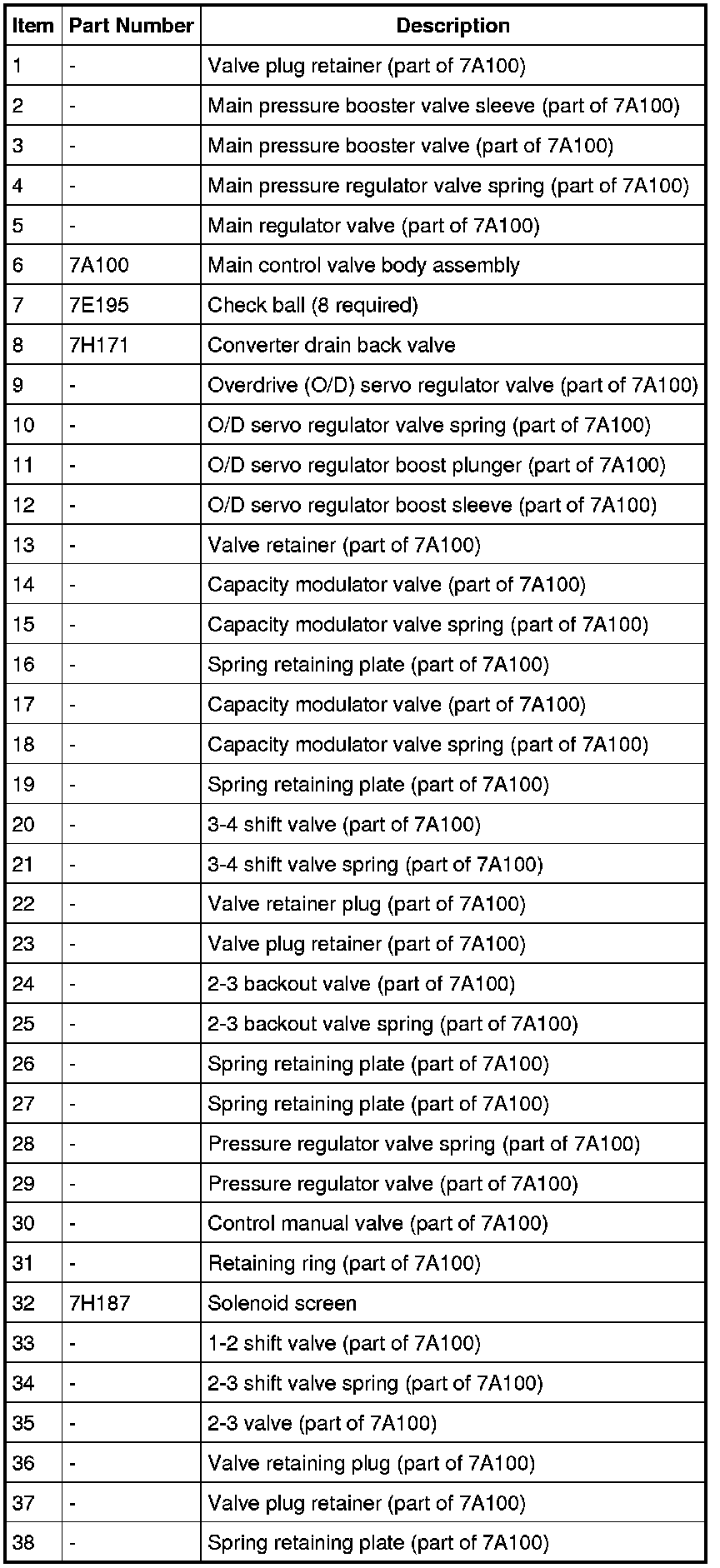

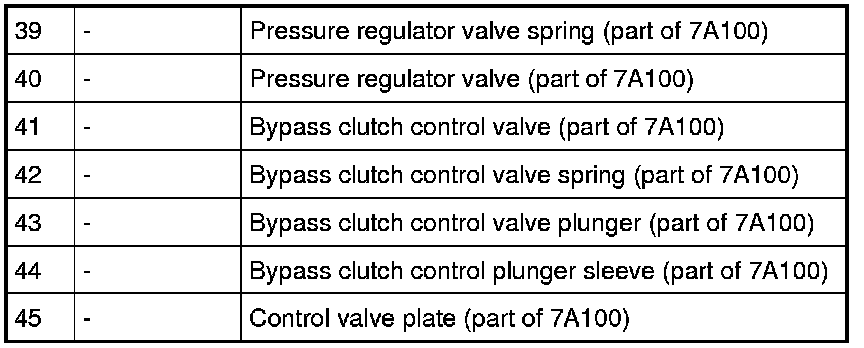

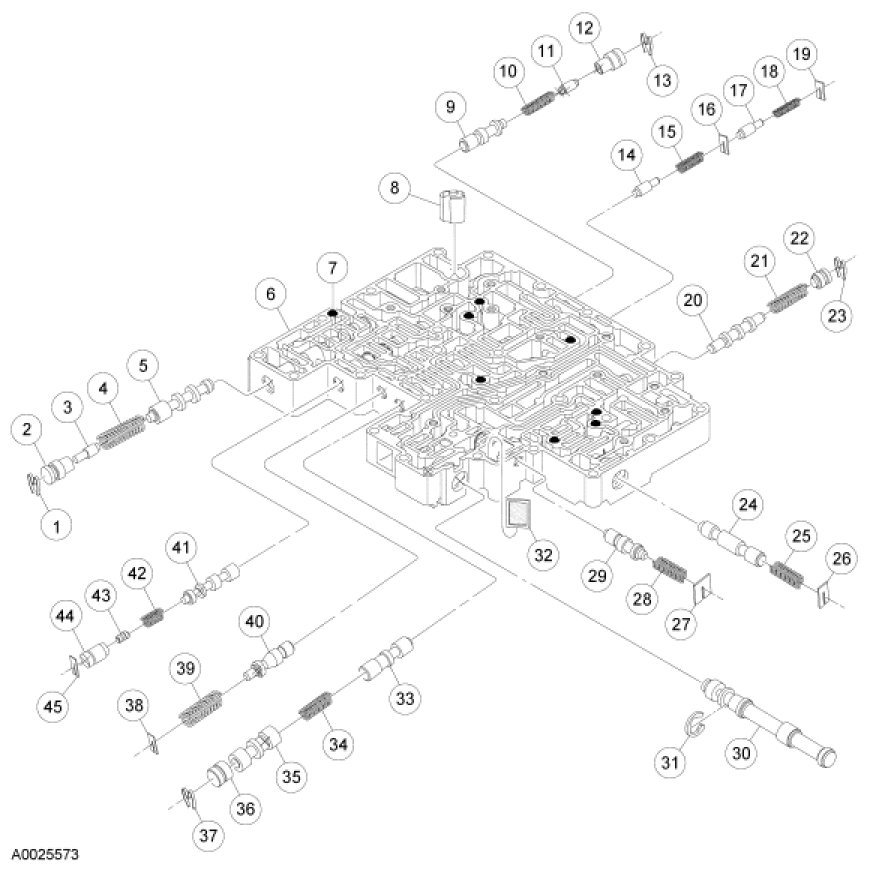

Main Control Valve Body - Disassembled View
