Home >> Mercury >> 2011 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Diagrams >> Connector Views >> C338 Passenger Seat Recliner Motor

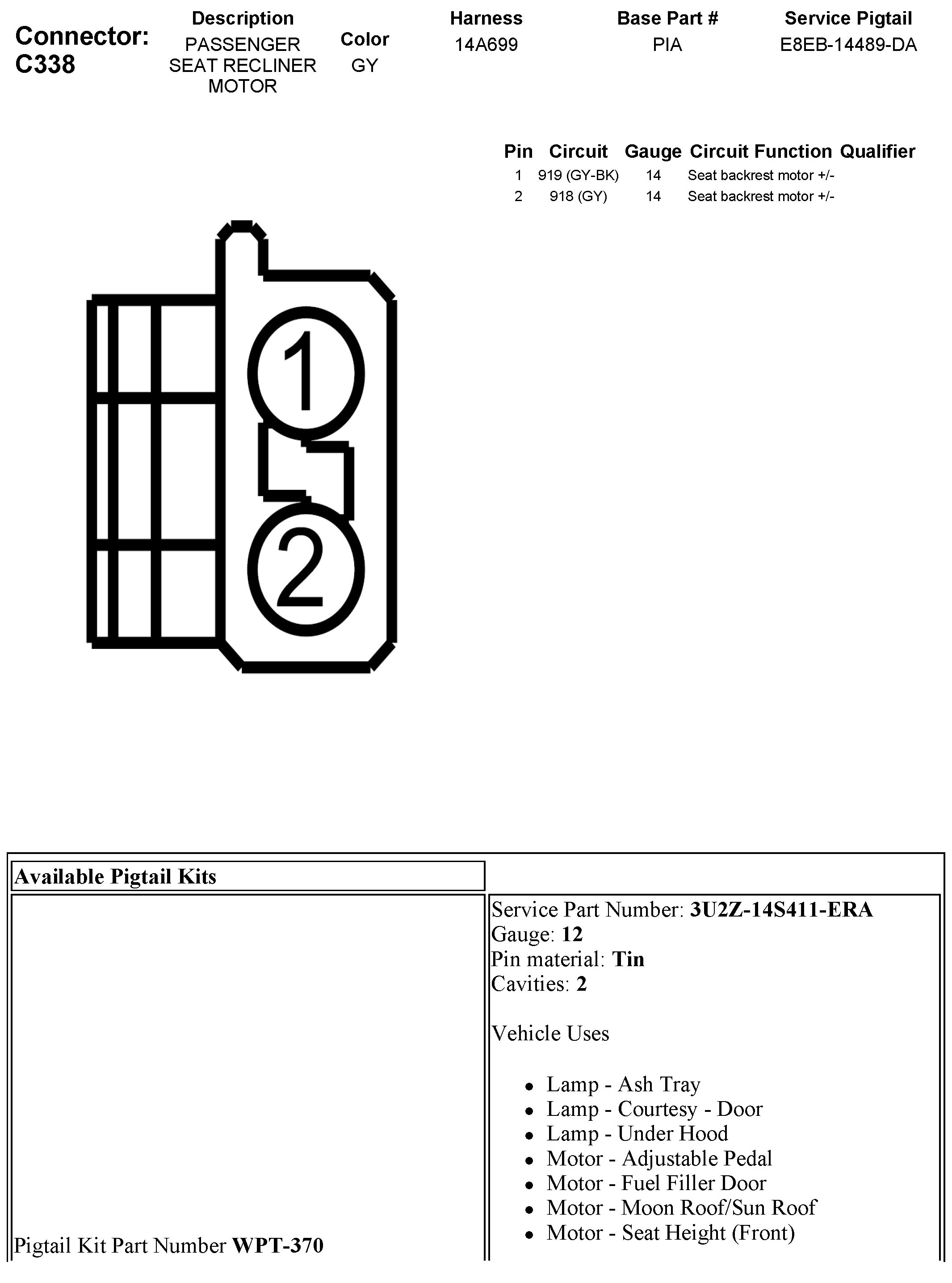

C338 Passenger Seat Recliner Motor
