Console: Service and Repair

Console - Overhead









Removal and Installation

WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury. Procedures

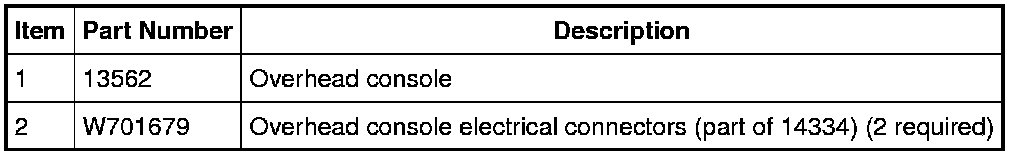

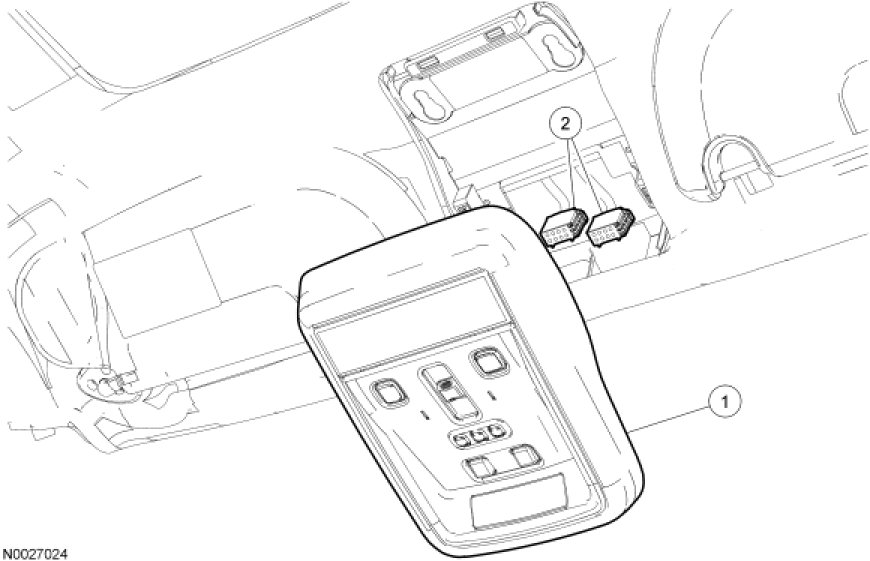

1. NOTICE: The overhead console bracket is supported by the headliner. Failure to follow the removal procedure will damage the headliner.

Support the headliner at the rear corner of the overhead console and pull down on that corner to remove the overhead console.

- Disconnect the 2 electrical connectors.

2. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury. Description and Operation

To install, reverse the removal procedure.
- To install, make sure to align the overhead console retaining clips to the retaining clip holes in the headliner bracket.
