Fender Splash Shield - RH

Fender Splash Shield - RH









Removal and Installation

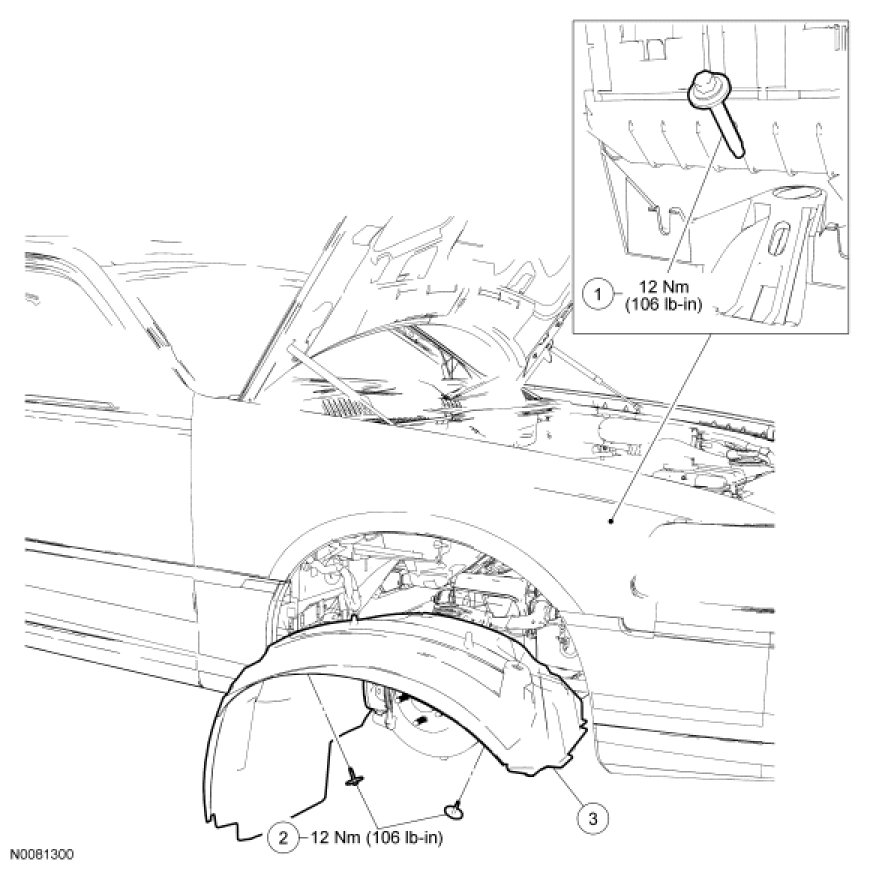

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury Procedures.

Remove the battery. For additional information, refer to Battery, Mounting and Cables Battery.

3. Remove the battery tray bolt.
- To install, tighten to 12 Nm (106 lb-in).

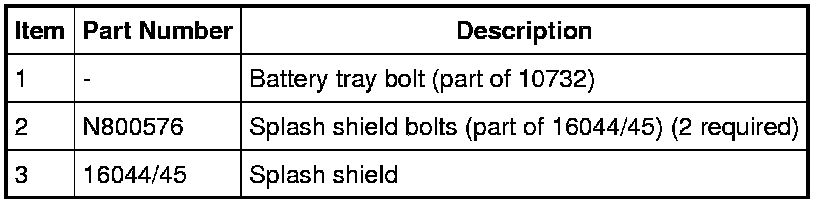

4. Remove the 2 bolts and the fender splash shield.
- To install, tighten to 12 Nm (106 lb-in).

5. WARNING: If equipped with fire suppression system, refer to Fire Suppression System for Important Safety Warnings. Failure to follow this instruction may result in serious personal injury Description and Operation.

To install, reverse the removal procedure.
