Pinpoint Test E: The Steering Wheel Controls Are Inoperative/Do Not Operate Correctly




Information and Entertainment System

Pinpoint Tests

Pinpoint Test E: The Steering Wheel Controls Are Inoperative/Do Not Operate Correctly

Refer to Wiring Diagram Set 130, Audio System for schematic and connector information. Diagrams By Number

Normal Operation

The audio unit sends a reference voltage to the steering wheel controls. Each steering wheel control switch function corresponds with a specific resistance value within the switch. When a switch is pressed, the audio unit monitors the change in reference voltage to determine the requested function.

- DTC B2404 (Audio Steering Wheel Switch Circuit Failure) - may set when a fault is detected in the steering wheel controls circuit. If the vehicle is not equipped with steering wheel controls, disregard this DTC.
- DTC U2024 (Audio Redundant Steering Wheel Control Not Responding) - sets when any fault is detected in the steering wheel controls circuit.

This pinpoint test is intended to diagnose the following:

- Wiring, terminals or connectors
- Clockspring
- Steering wheel controls
- Audio unit

PINPOINT TEST E: THE STEERING WHEEL CONTROLS ARE INOPERATIVE/DO NOT OPERATE CORRECTLY

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

-------------------------------------------------
E1 CHECK THE STEERING WHEEL CONTROLS RESISTANCE VALUES


- Ignition OFF.
- Disconnect: Audio Unit C290a.

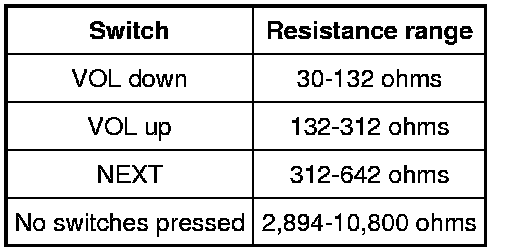

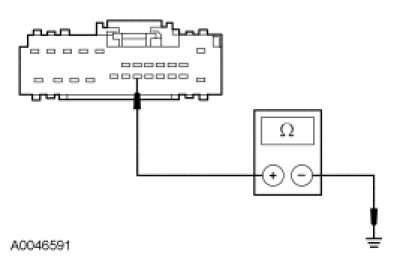

- Measure the resistance between the audio unit C290a-18, circuit 595 (LB/RD), harness side and ground while pressing the steering wheel controls as follows:









- Are the resistances within specification?

Yes
INSTALL a new audio unit. REFER to Audio Unit Service and Repair. TEST the system for normal operation.

No
GO to E2.

-------------------------------------------------
E2 CHECK CIRCUIT 595 (LB/RD) FOR AN OPEN OR SHORT TO GROUND


- Disconnect: Clockspring C218a.

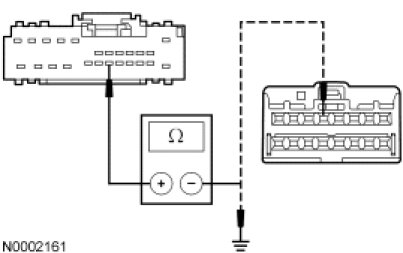

- Measure the resistance between the audio unit C290a-18, circuit 595 (LB/RD), harness side and the clockspring C218a-5, circuit 595 (LB/RD), harness side; and between the audio unit C290a-18, circuit 595 (LB/RD), harness side and ground.




- Is the resistance less than 5 ohms between the audio unit and clockspring, and greater than 10,000 ohms between the audio unit and ground?

Yes
GO to E3.

No
REPAIR the circuit in question. CLEAR the DTCs. TEST the system for normal operation.

-------------------------------------------------
E3 CHECK CIRCUIT 57 (BK) FOR AN OPEN

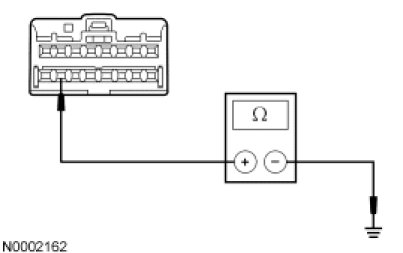

- Measure the resistance between the clockspring C218a-15, circuit 57 (BK), harness side and ground.




- Is the resistance less than 5 ohms?

Yes
GO to E4.

No
REPAIR the circuit. CLEAR the DTCs. TEST the system for normal operation.

-------------------------------------------------
E4 CHECK CIRCUIT 595 (LB/RD) FOR AN OPEN


- Remove the driver air bag. Refer to Supplemental Restraint System Driver Air Bag Module.
- Disconnect: Steering Wheel Controls C2208.
- Disconnect: Clockspring C218b.

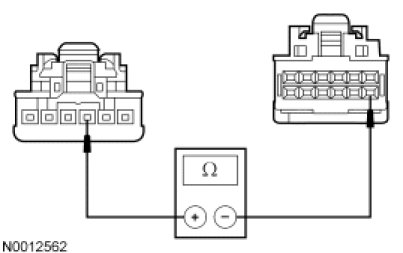

- Measure the resistance between the steering wheel controls C2208-5, circuit 595 (LB/RD), harness side and the clockspring C218b-9, circuit 595 (LB/RD), harness side.




- Is the resistance less than 5 ohms?

Yes
GO to E5.

No
REPAIR the circuit. CLEAR the DTCs. TEST the system for normal operation.

-------------------------------------------------
E5 CHECK CIRCUIT 57 (BK) IN THE STEERING WHEEL HARNESS FOR AN OPEN

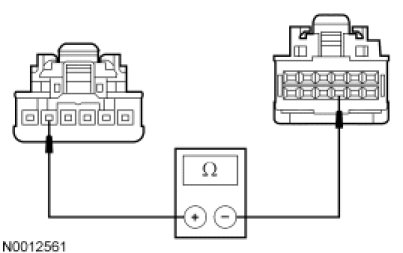

- Measure the resistance between the steering wheel controls C2208-3, circuit 57 (BK), harness side and the clockspring C218b-7, circuit 57 (BK), harness side.




- Is the resistance less than 5 ohms?

Yes
GO to E6.

No
REPAIR the circuit. CLEAR the DTCs. TEST the system for normal operation.

-------------------------------------------------
E6 CHECK THE CLOCKSPRING FOR AN OPEN

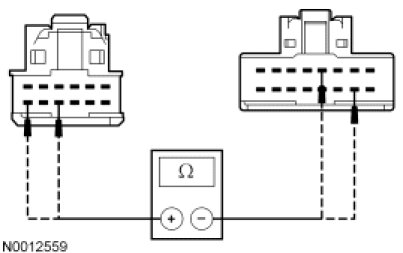

- Measure the resistance between the clockspring C218b pin 9, component side and the clockspring C218a pin 5, component side; and between the clockspring C218b pin 7, component side and the clockspring C218a pin 15, component side.




- Are the resistances less than 5 ohms?

Yes
INSTALL new steering wheel controls. REFER to Steering Wheel Controls Service and Repair. INSTALL the driver air bag module. REFER to Supplemental Restraint System Driver Air Bag Module. CLEAR the DTCs. TEST the system for normal operation.

No
INSTALL a new clockspring. INSTALL the driver air bag module. REFER to Supplemental Restraint System Service and Repair. CLEAR the DTCs. TEST the system for normal operation.

-------------------------------------------------
