Main Components and Functions




Main Components and Functions

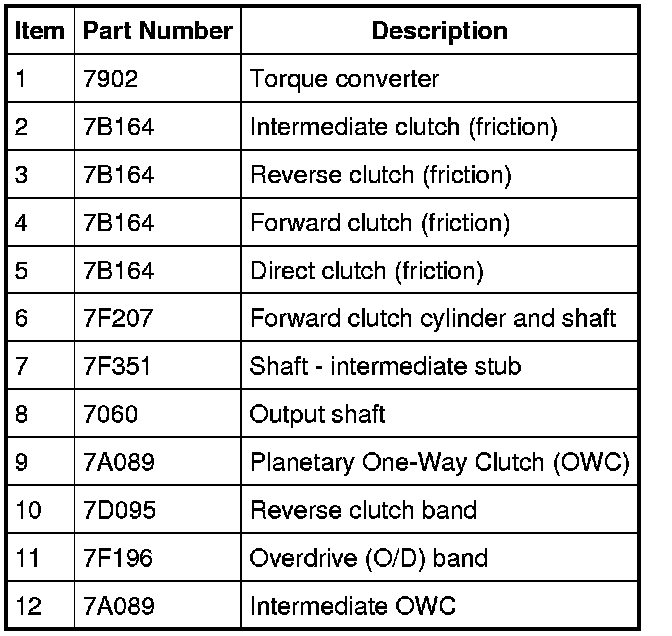

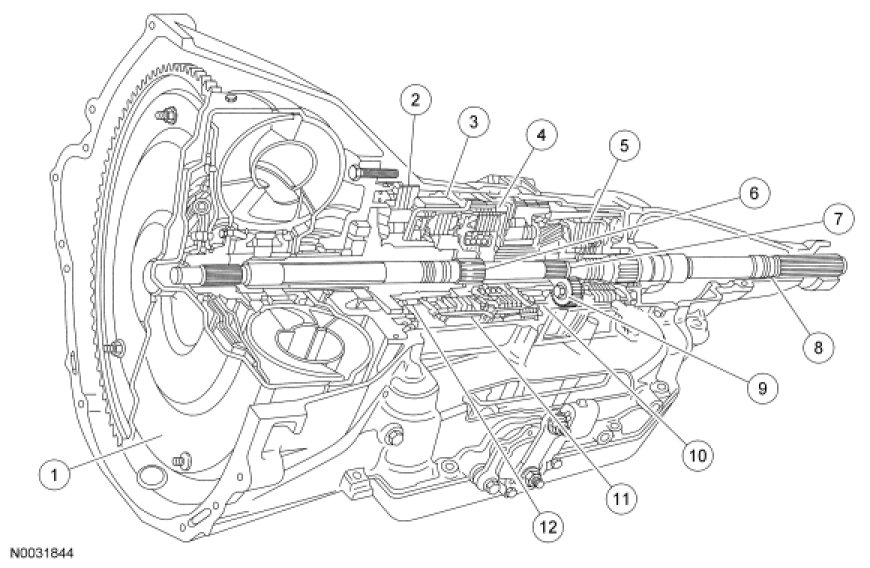

Transmission Main Components - Sectional View
