Home >> Mercury >> 2011 >> Grand Marquis V8-4.6L Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Emission Control Systems >> EGR Control Module >> Diagrams

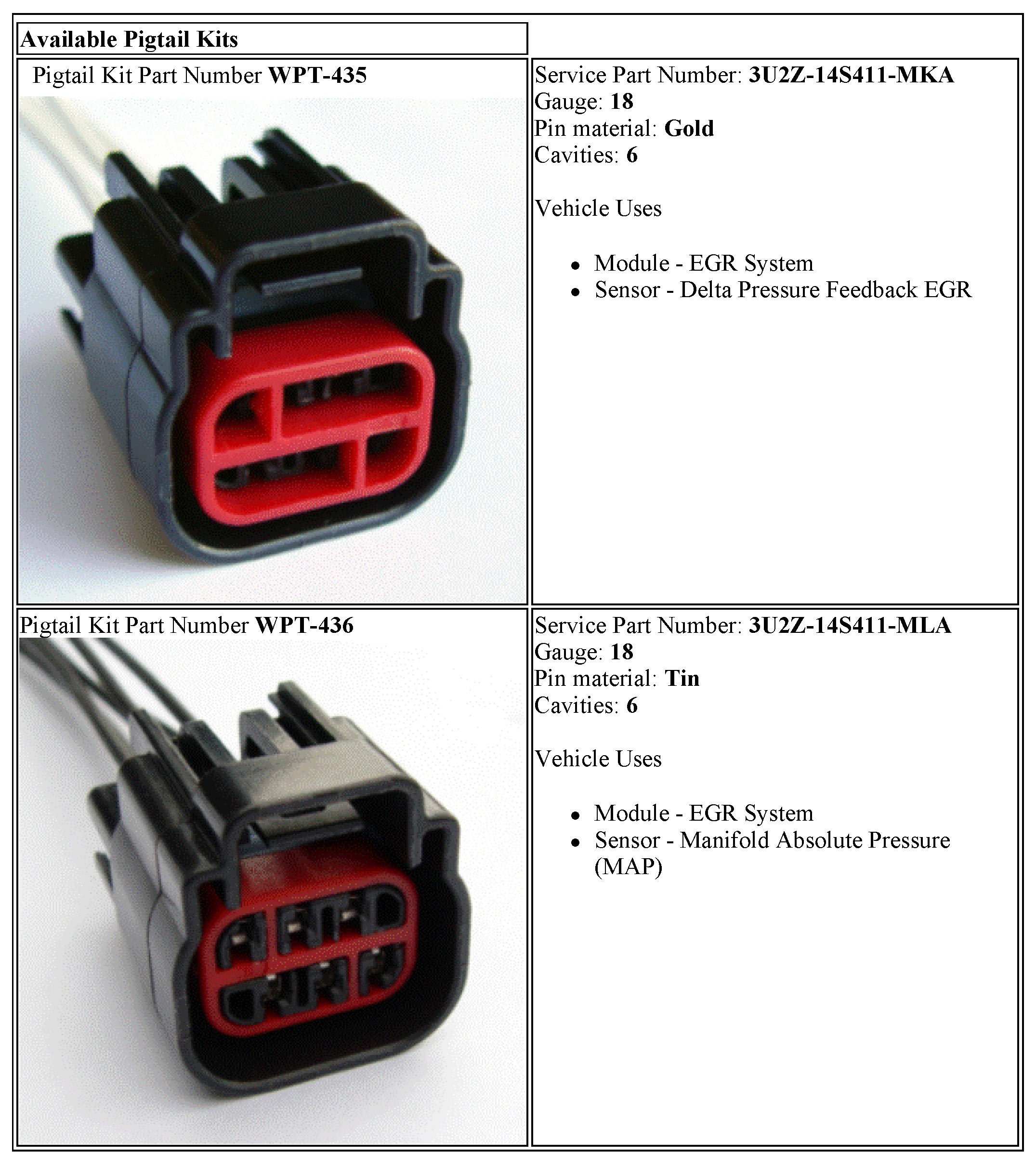

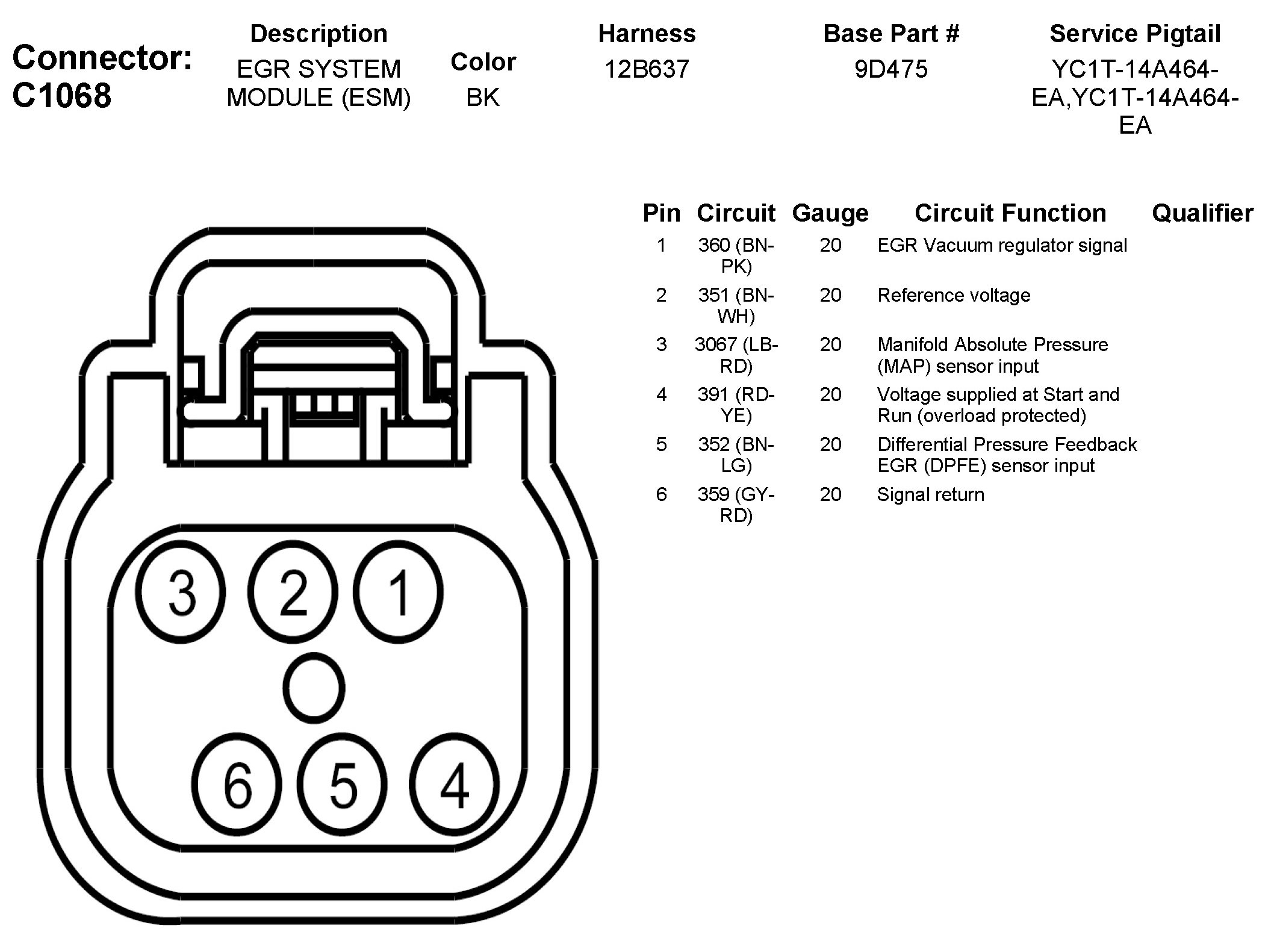

EGR Control Module: Diagrams
