Test KB: Fuel Pump Driver Module (FPDM)

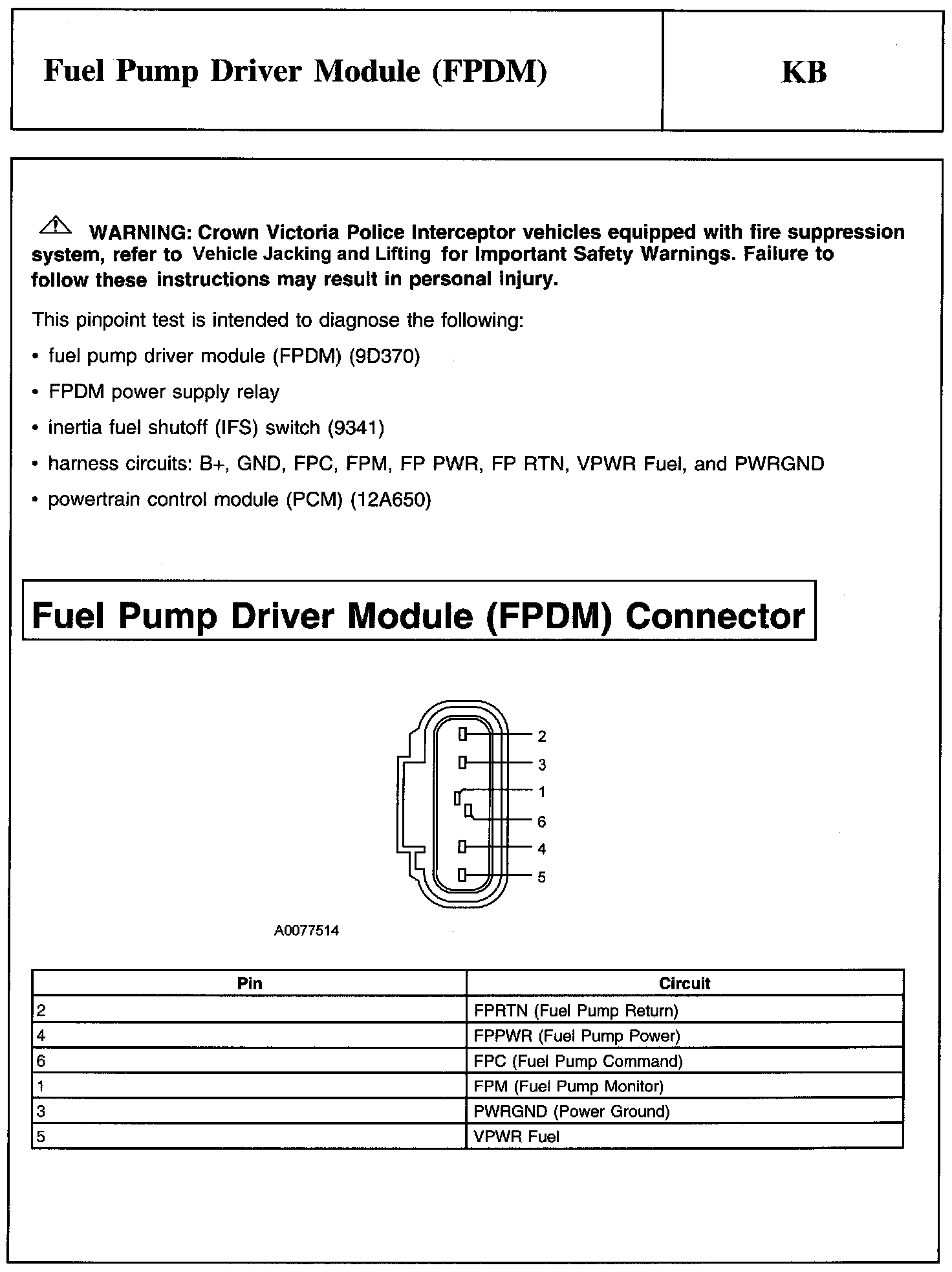

Warning And Fuel Pump Driver Module (FPDM) Connector:

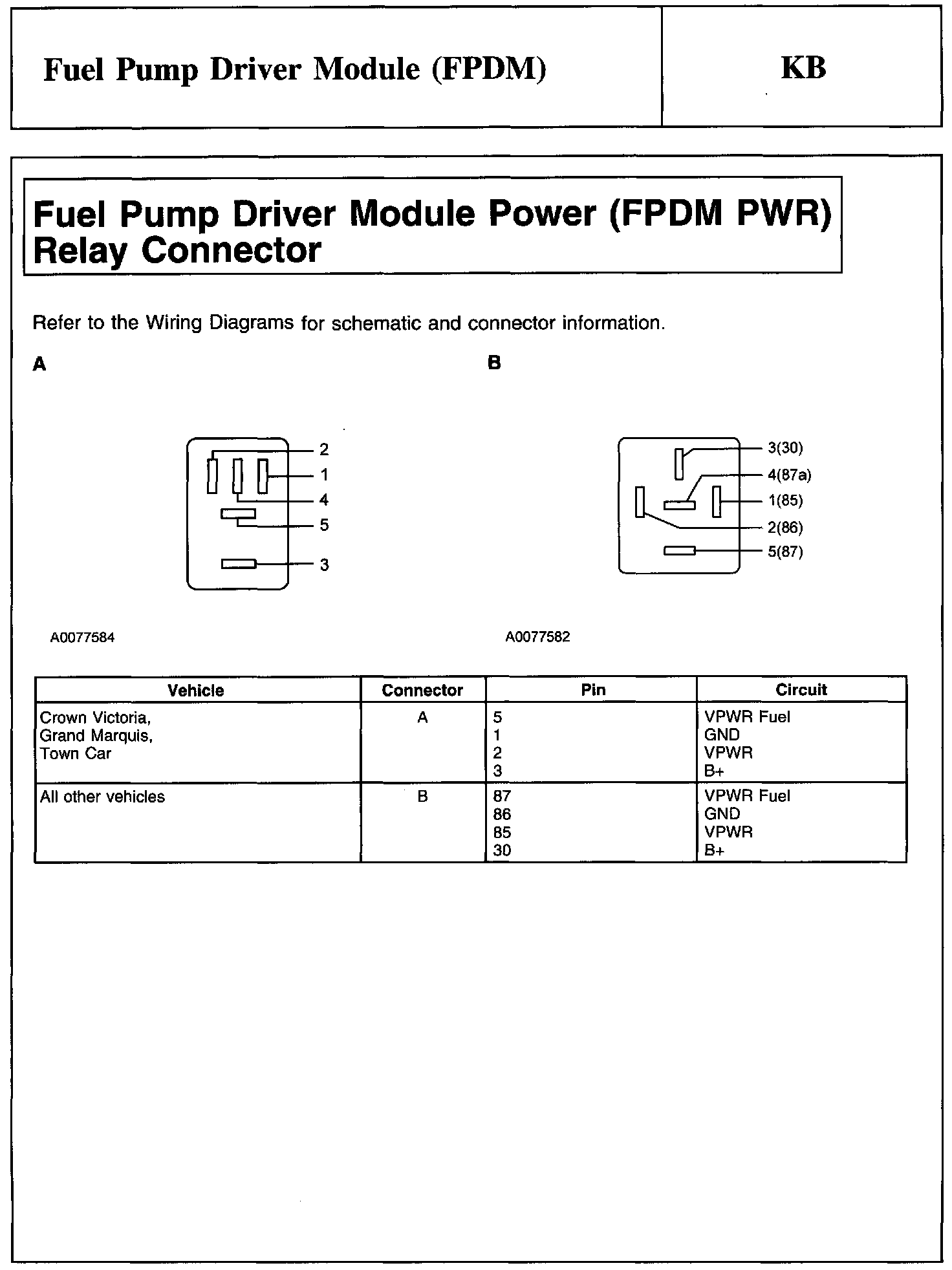

Fuel Pump Driver Module Power (FPDM PWR) Relay Connector:

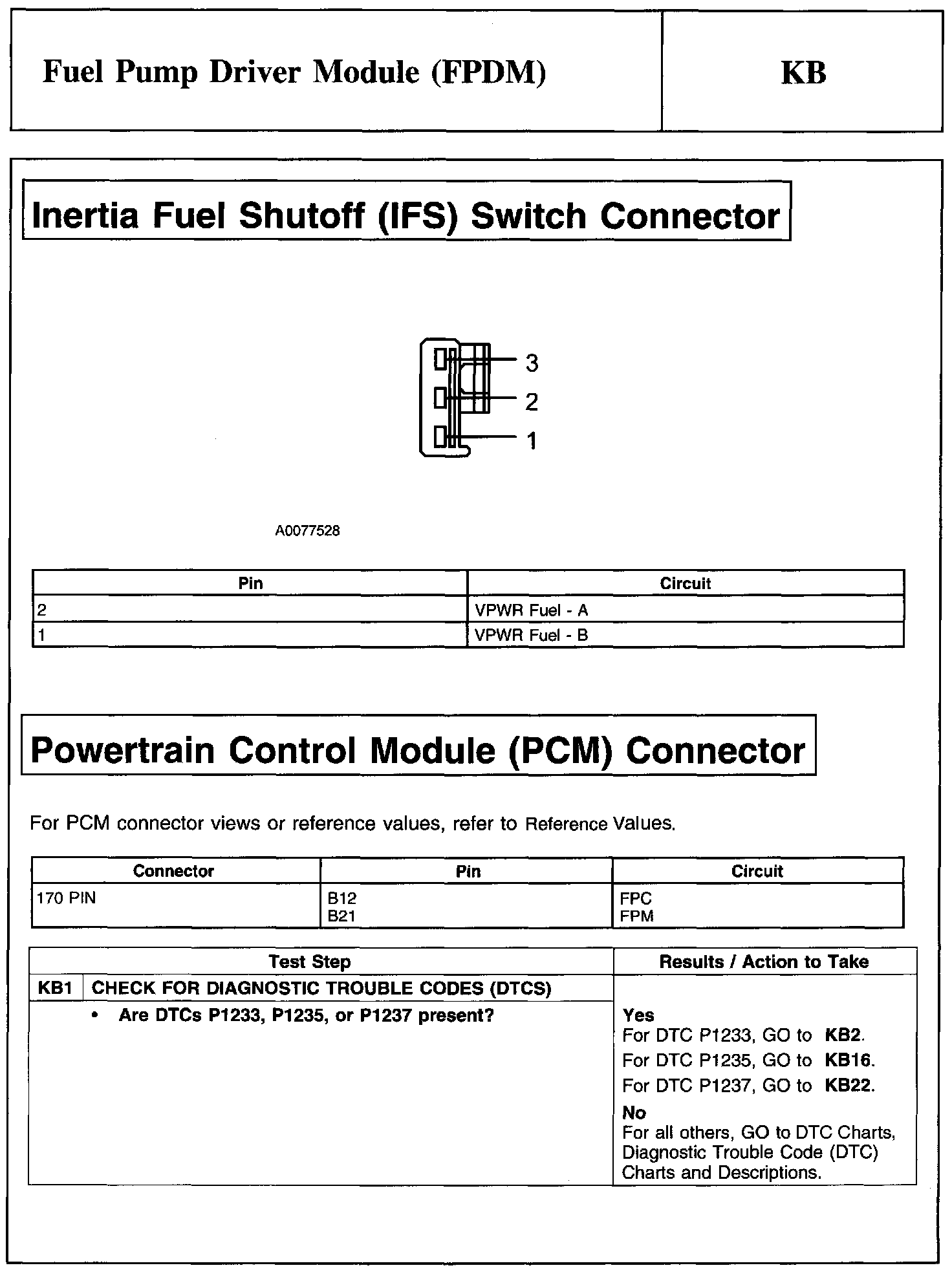

KB1:

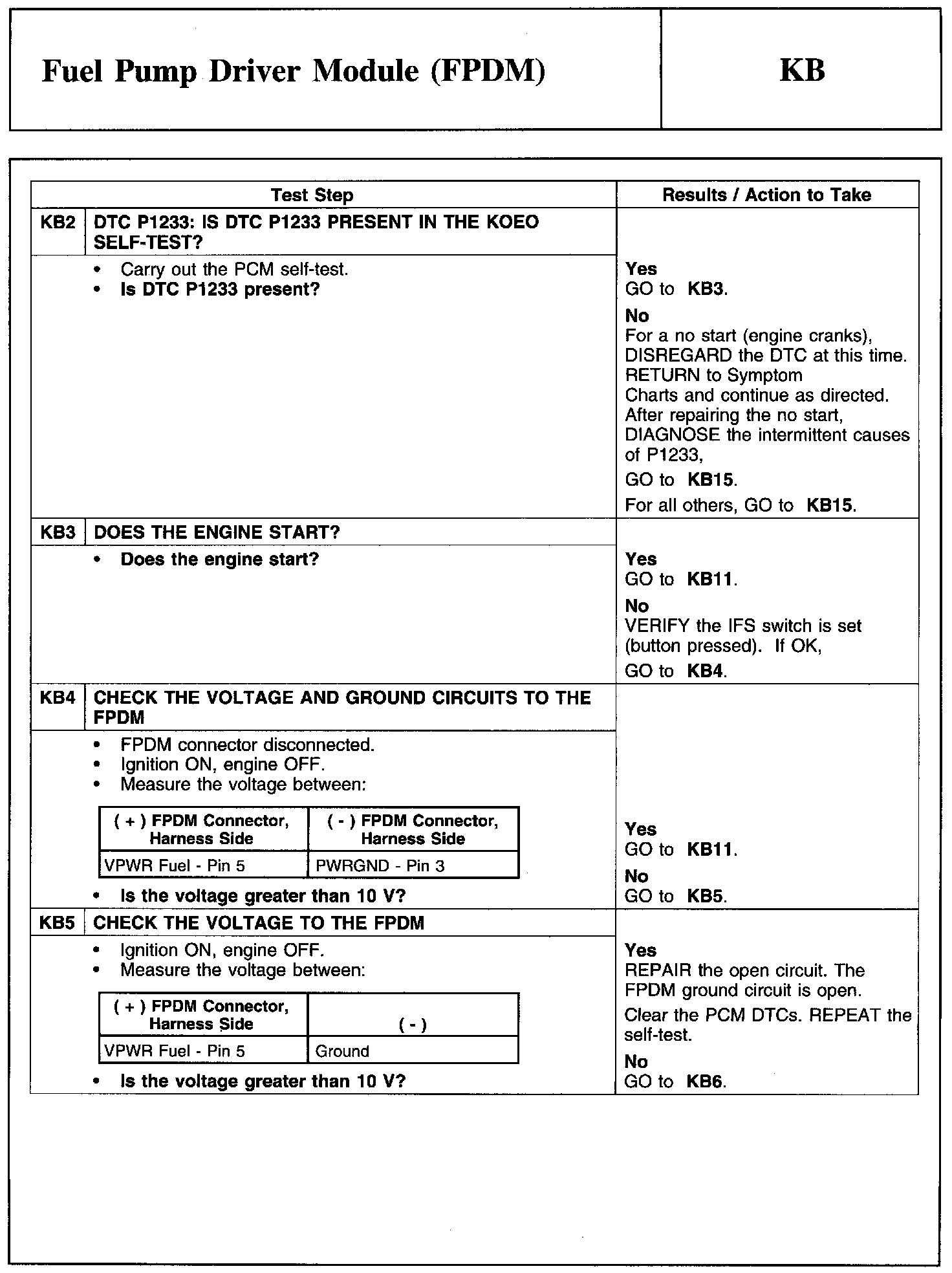

KB2-KB5:

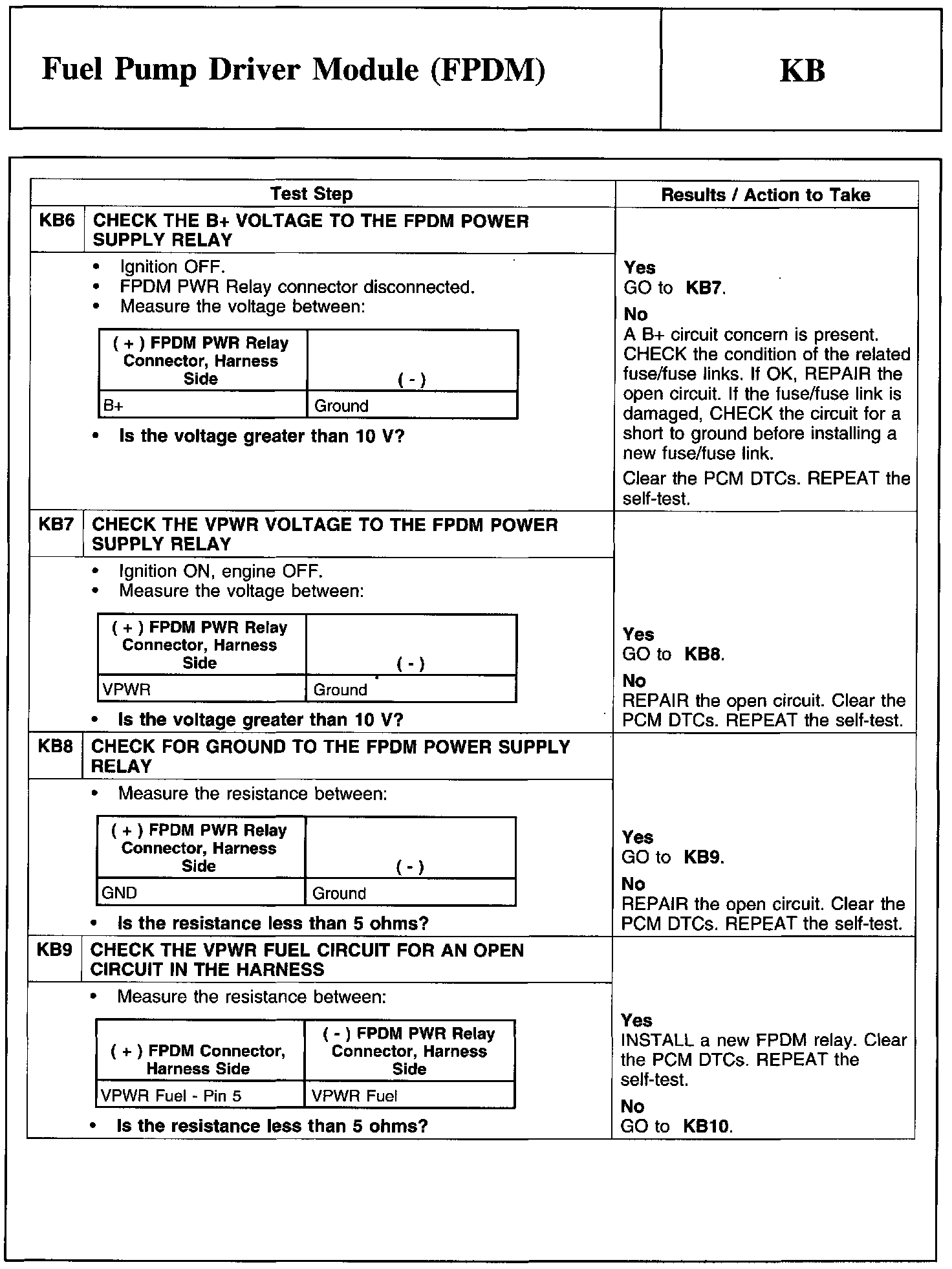

KB6-KB9:

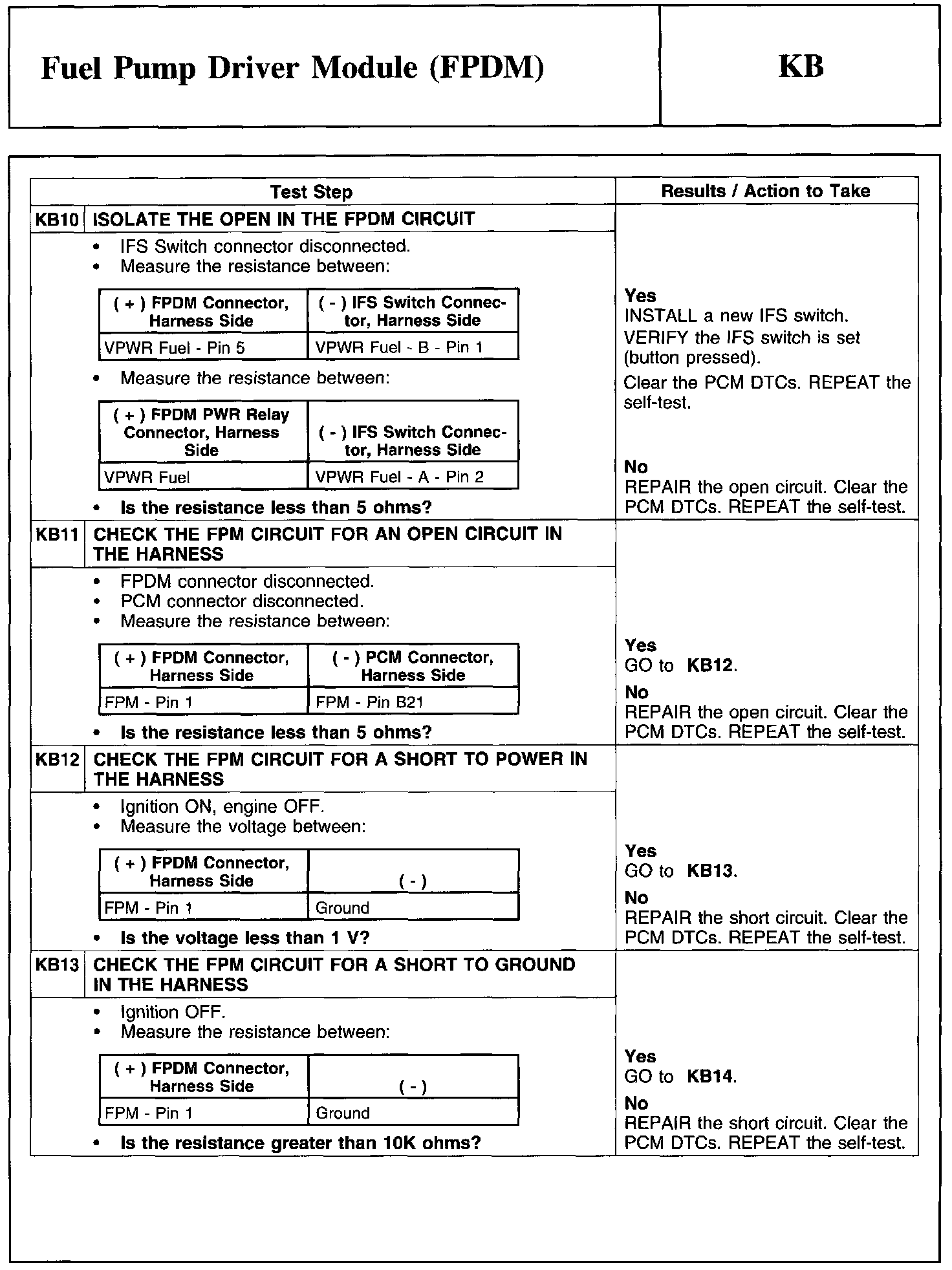

KB10-KB13:

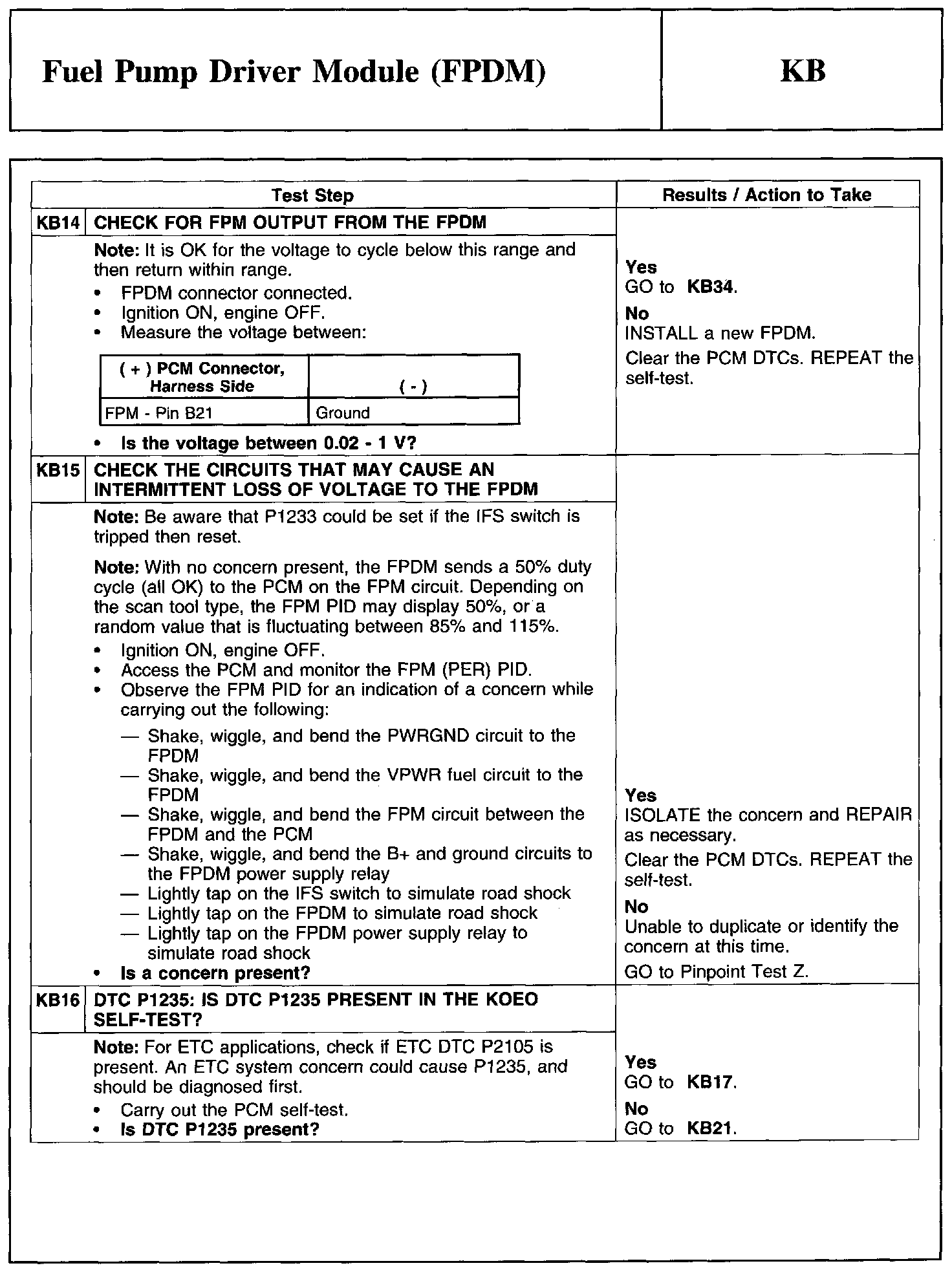

KB14-KB16:

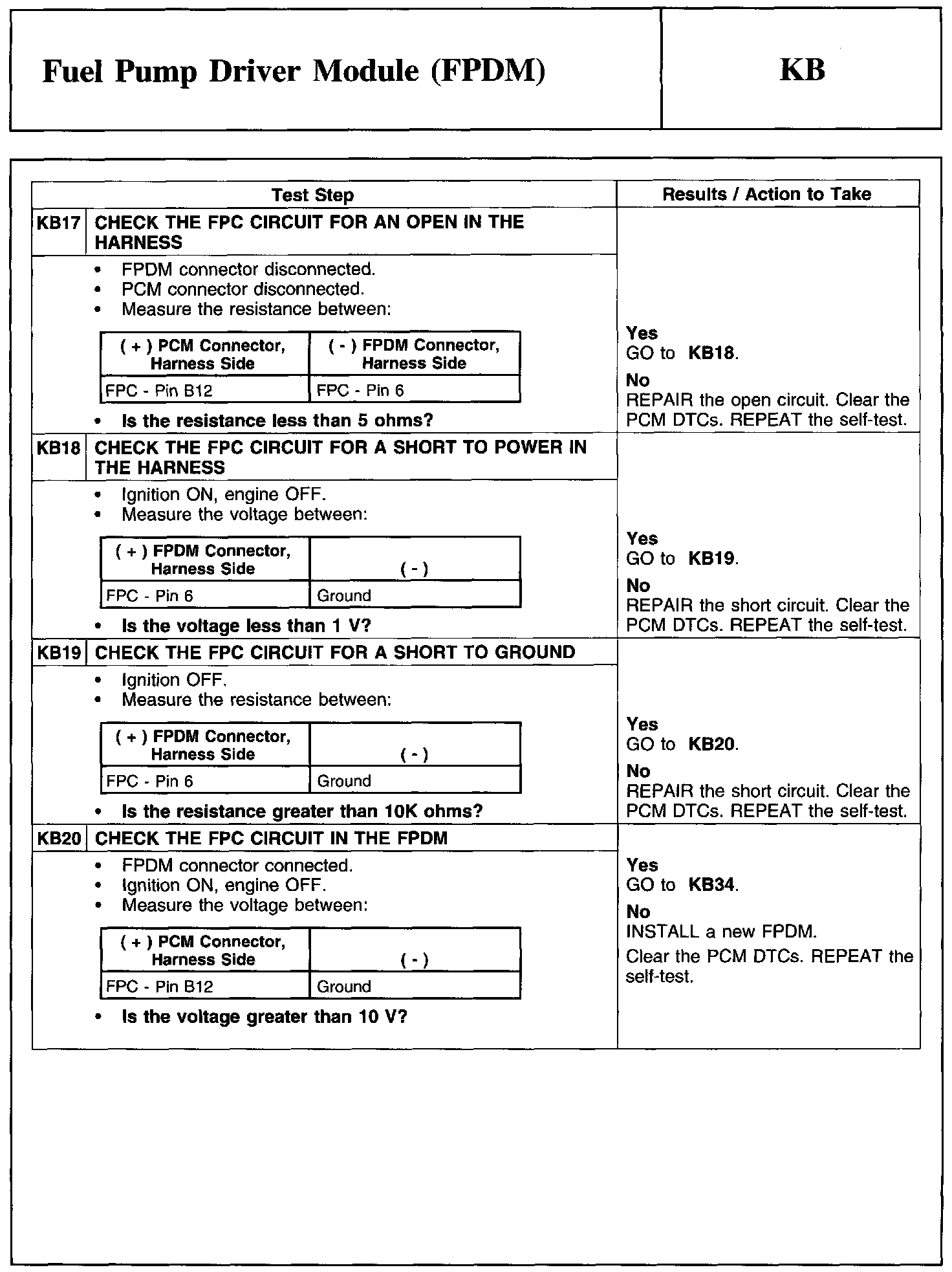

KB17-KB20:

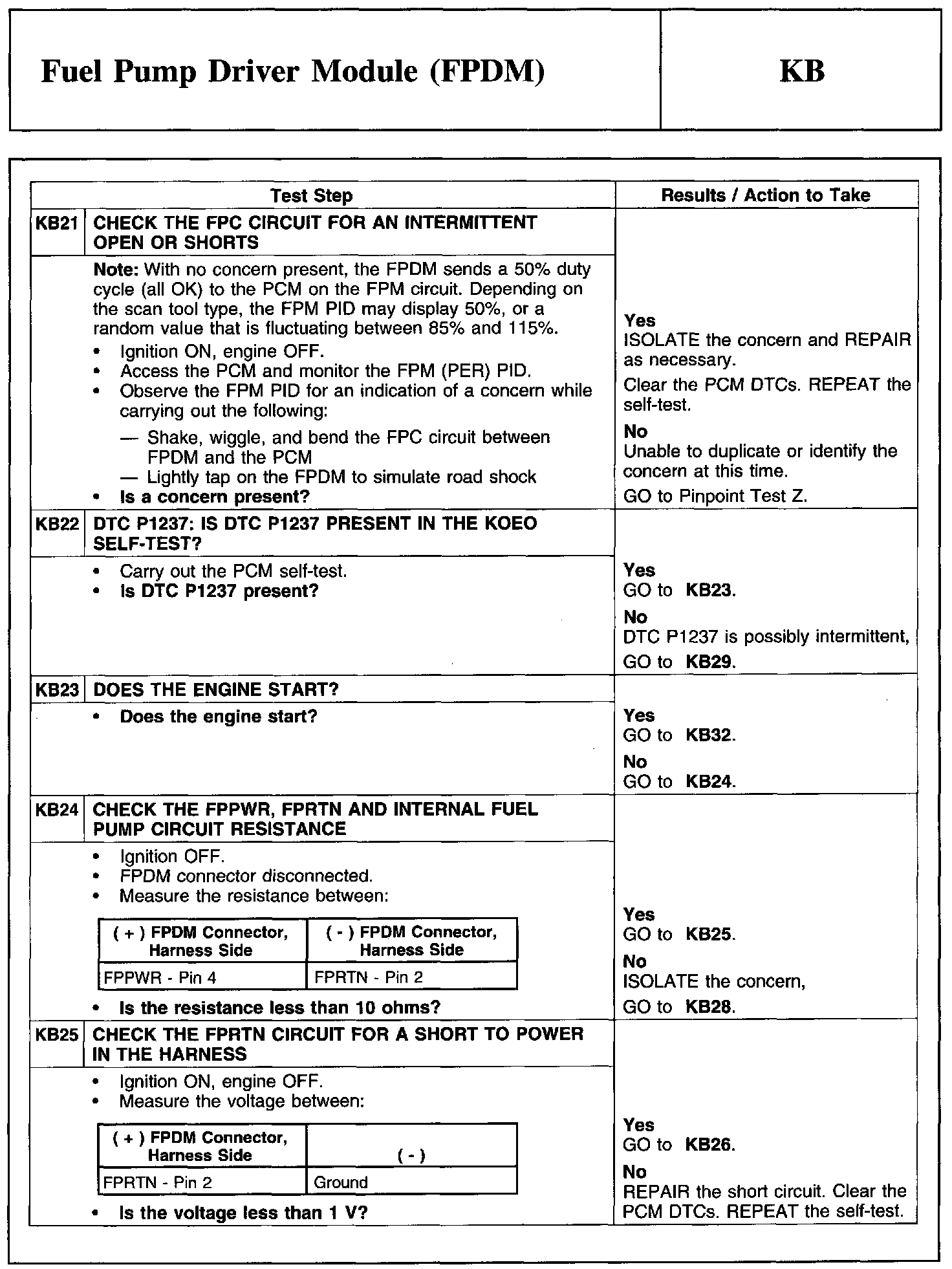

KB21-KB25:

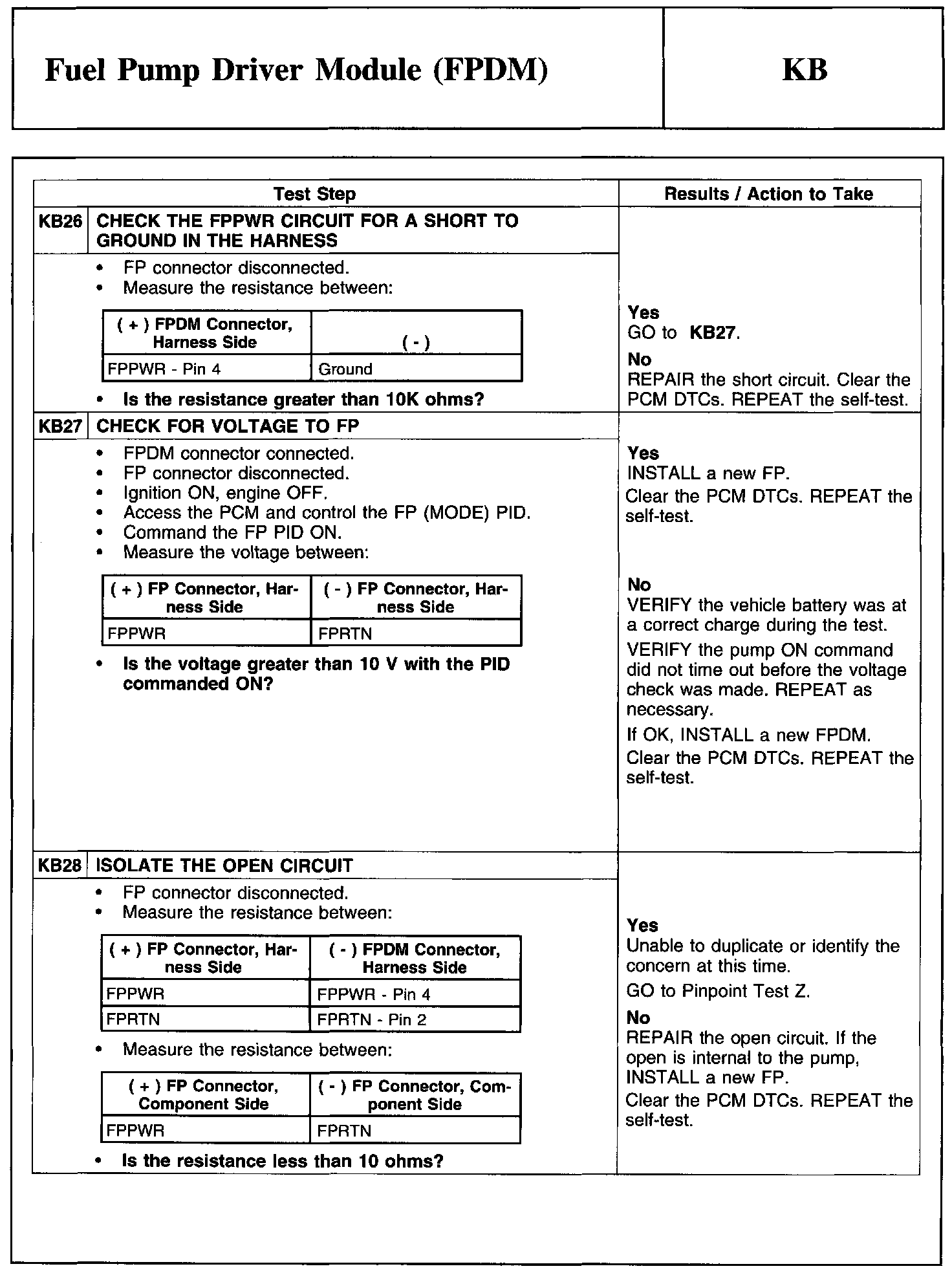

KB26-KB28:

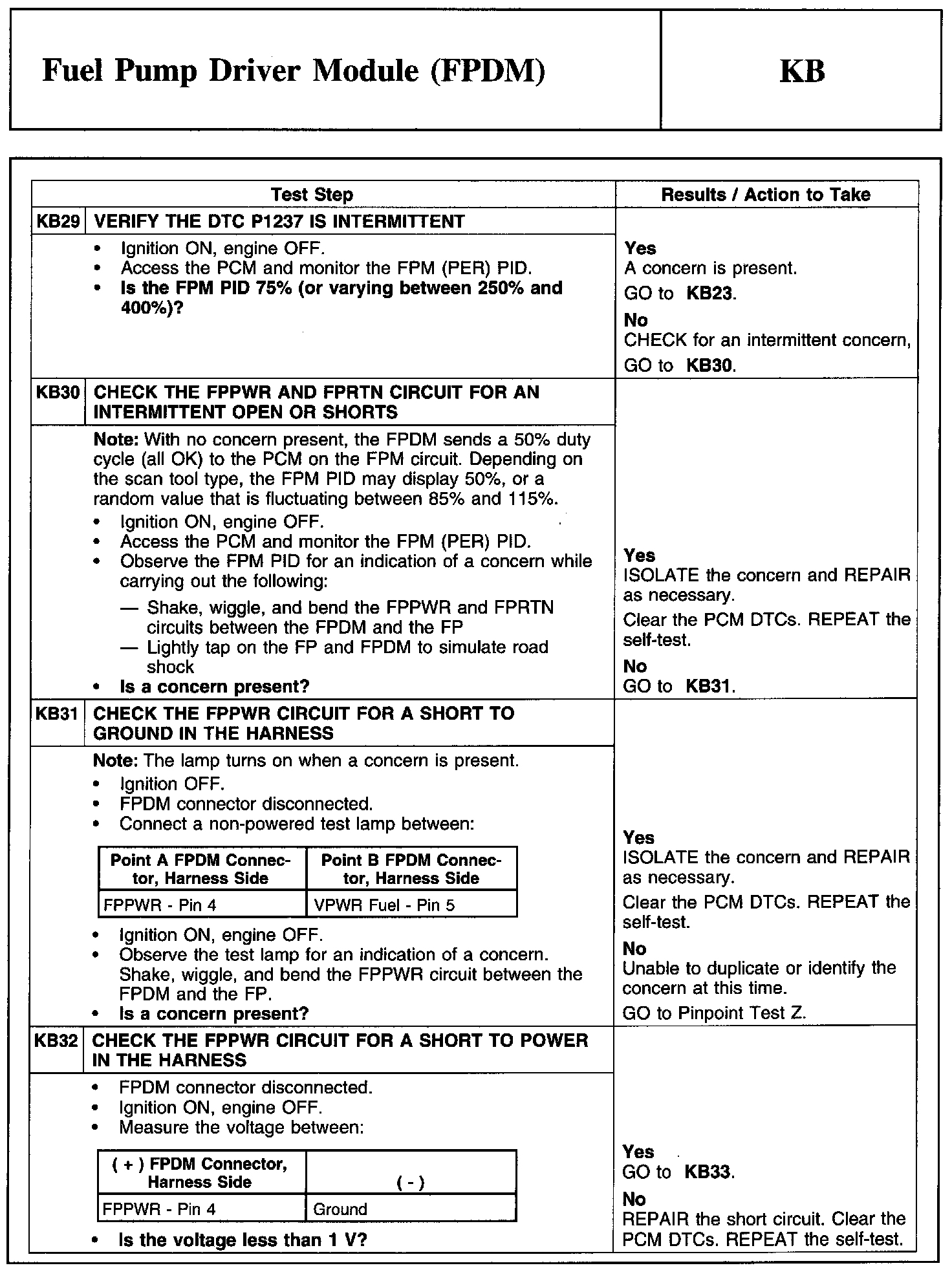

KB29-KB32:

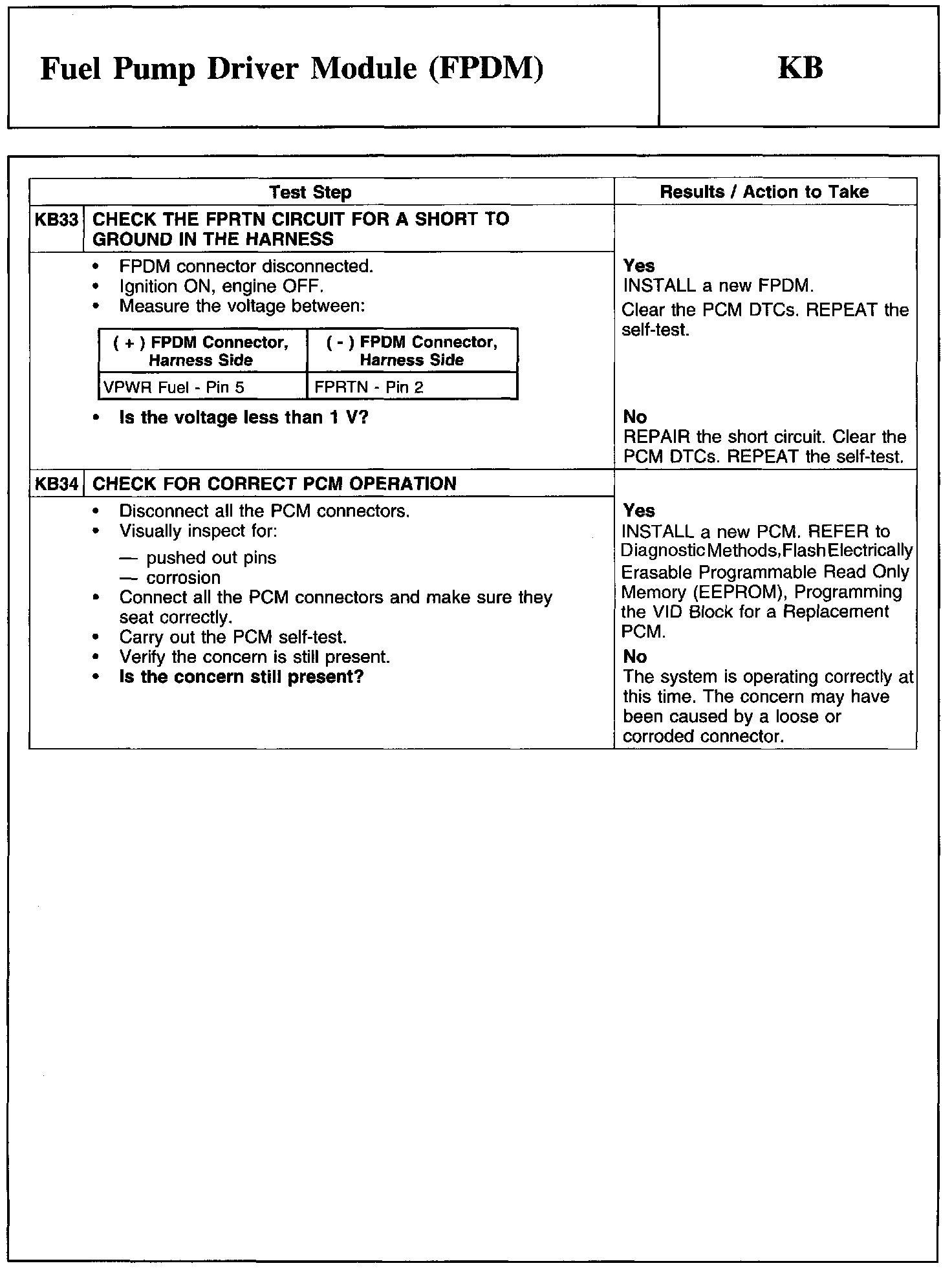

KB33-KB34:
