Home >> Mercury >> 2011 >> Grand Marquis V8-4.6L Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fire Suppression System >> System Diagram >> C4316 Fire Suppressor (GEN I) / Fire Actuator (GEN II), RH

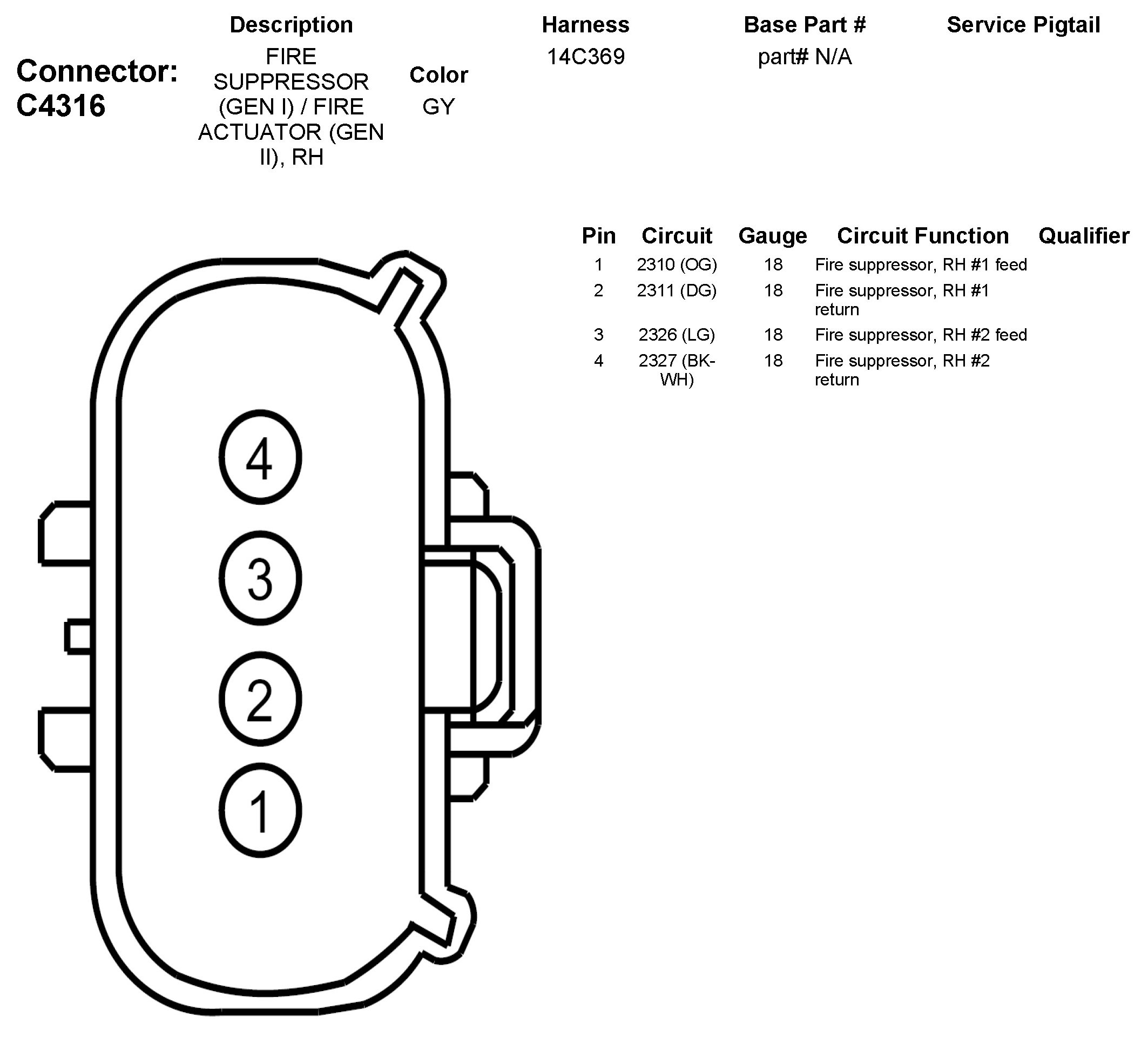

C4316 Fire Suppressor (GEN I) / Fire Actuator (GEN II), RH
