Door Glass Top Run - Front

Door Glass Top Run - Front

Removal and Installation

NOTE: The LH front window motor must be de-initialized, then initialized whenever the LH front window motor is removed from the window regulator drum housing, a new window regulator is installed, a new window glass is installed, a new top run is installed or for any operation in which grease or lubricants are applied to the window regulator or glass run.

1. Remove the front door window glass. For additional information, refer to Window Glass - Front Door Window Glass - Front Door.

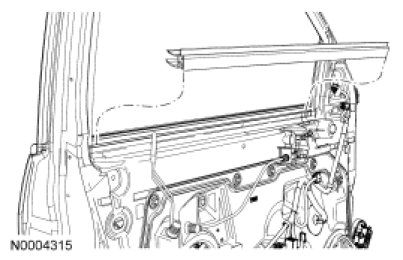

2. Remove the front door window glass inner weatherstrip.

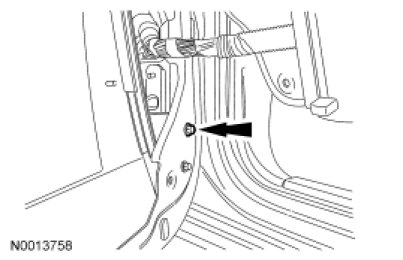

3. Remove the door glass track bolt.
- To install, tighten to 8 Nm (71 lb-in).

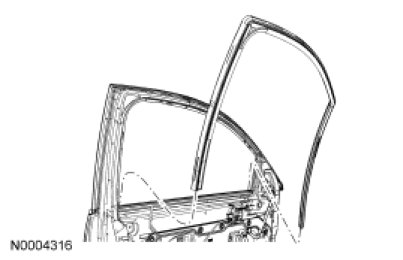

4. Remove the front door glass top run.





5. To install, reverse the removal procedure.
- If installing a new LH front top run, the LH front window motor must be initialized. For additional information, refer to Window Motor Initialization .
