Transmission Mount: Service and Repair

6F50

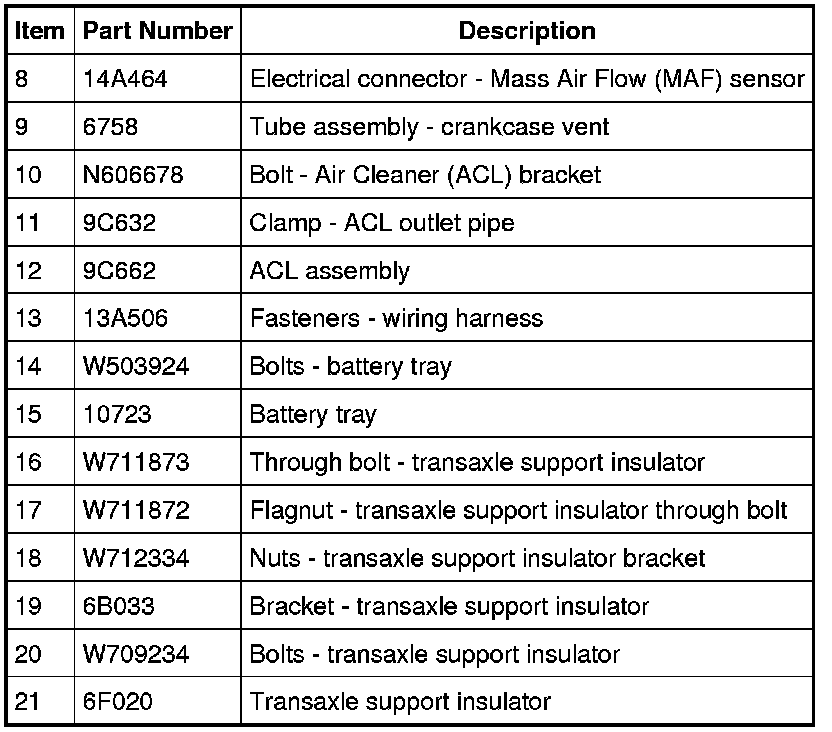

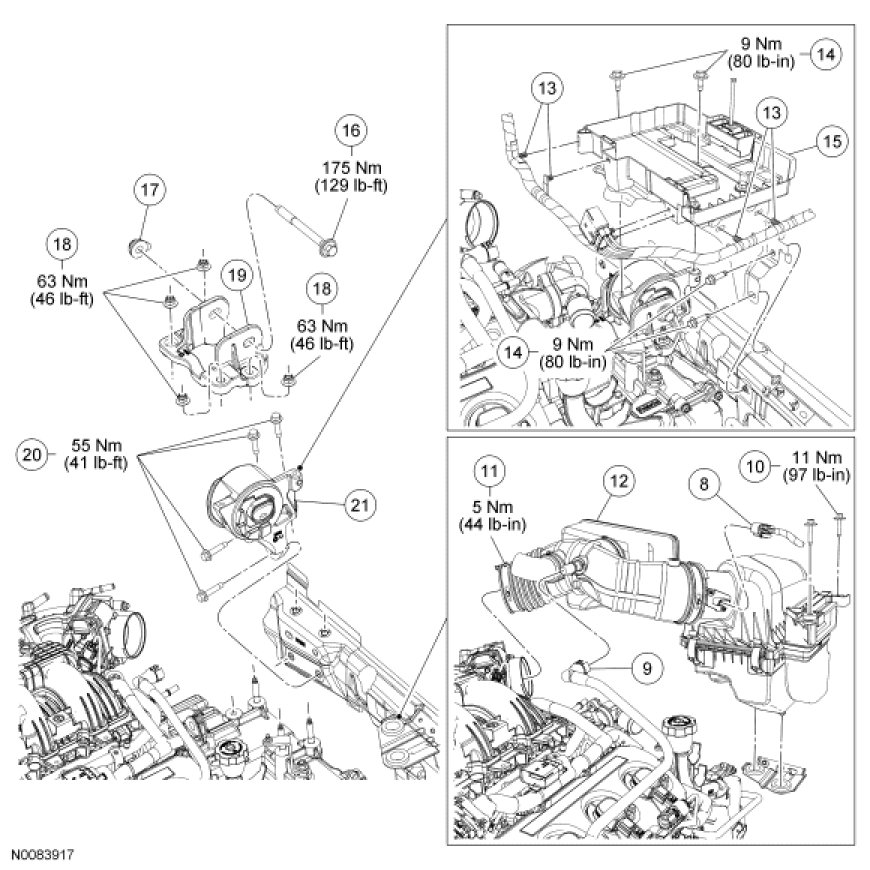

Transaxle Support Insulator























Removal

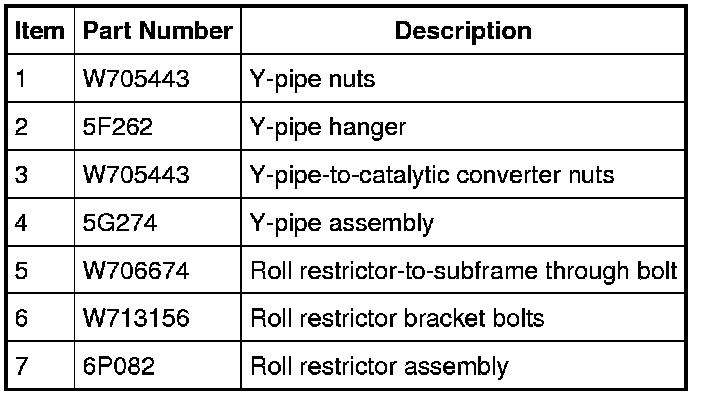

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 2 Y-pipe nuts, disconnect the exhaust hanger and discard the exhaust seal.
- Discard the gasket and nuts.





3. Remove the 4 nuts, the Y-pipe assembly and discard the exhaust seals.
- Discard the nuts.





4. Loosen the engine roll restrictor-to-subframe through bolt.





5. Remove the 2 bolts from the roll restrictor bracket.





6. Disconnect the Mass Air Flow (MAF) sensor electrical connector.





7. Disconnect the engine breather from the Air Cleaner (ACL) assembly.





8. Remove the 2 ACL assembly bracket bolts.





9. Loosen the ACL outlet pipe clamp at the Throttle Body (TB) and remove the ACL and ACL outlet pipe assembly.





10. Remove the battery.

11. Detach the wiring harness retainers from the battery tray.





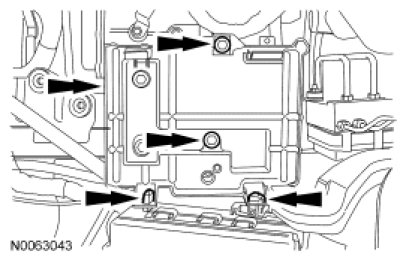

12. Remove the 2 lower battery tray bracket bolts.





13. Remove the upper battery tray bolt and nut. Release the Power Distribution Box (PDB) fasteners. Remove the battery tray and bracket.

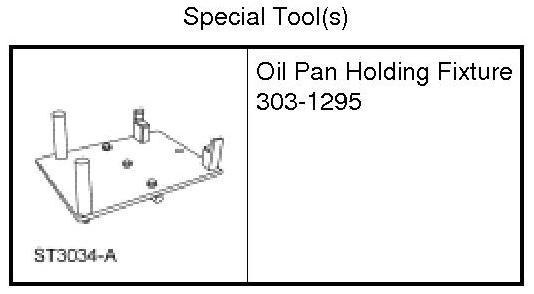

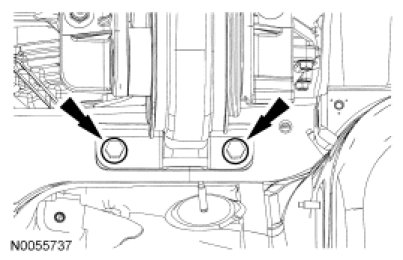

14. NOTICE: The Oil Pan Holding Fixture must be carefully aligned to the mounting bosses on the oil pan. Failure to follow these instructions may result in damage to the oil pan.

Position a floor jack and the Oil Pan Holding Fixture under the oil pan and raise the floor jack high enough to release the pressure on the transaxle support insulator.

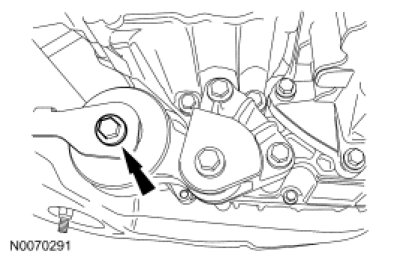

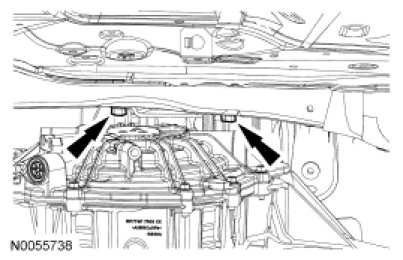

15. Remove the transaxle support insulator through bolt.

1. Remove the flagnut.

2. Using the floor jack and Oil Pan Holding Fixture, release the tension from the transaxle support insulator through bolt to remove it from the transaxle mount.





16. Lower the transaxle from the mount about 50.8 mm (2 in).

17. Remove the 4 nuts and the transaxle support insulator bracket.





18. Remove the top transaxle support insulator bolts.





19. Remove the bottom transaxle support insulator bolts and remove the transaxle support insulator.





Installation

1. Install the bottom transaxle support insulator bolts.
- Tighten to 55 Nm (41 lb-ft).





2. Install the top transaxle support insulator bolts.
- Tighten to 55 Nm (41 lb-ft).





3. Install the transaxle support insulator bracket and install the 4 transaxle support insulator bracket nuts.
- Tighten to 63 Nm (46 lb-ft).





4. Using the floor jack and Oil Pan Holding Fixture, raise the transaxle and install the transaxle support insulator through bolt.
- Tighten to 175 Nm (129 lb-ft).





5. Remove the floor jack and the Oil Pan Holding Fixture.

6. Install the battery tray and bracket, install the battery tray bolt and nut.
- Tighten to 9 Nm (80 lb-in).





7. Install the 2 lower battery tray bracket bolts.
- Tighten to 9 Nm (80 lb-in).





8. Attach the 5 pin-type wiring harness fasteners to the battery tray.





9. Install the battery.

10. Position the ACL assembly in place and install the 2 ACL assembly bracket bolts.
- Tighten to 11 Nm (97 lb-in).





11. Tighten the ACL outlet pipe clamp at the TB.
- Tighten to 5 Nm (44 lb-in).





12. Connect the engine breather to the ACL assembly.





13. Connect the MAF sensor electrical connector.





14. Position the roll restrictor in place and install the roll restrictor bolts.
- Tighten to 90 Nm (66 lb-ft).





15. Tighten the engine roll restrictor-to-subframe through bolt.
- Tighten to 90 Nm (66 lb-ft).





16. Install new exhaust seals, position the exhaust Y-pipe assembly in place and install 4 new exhaust Y-pipe assembly nuts.
- Tighten to 40 Nm (30 lb-ft).





17. Install a new exhaust seal, position the Y-pipe in the exhaust hanger and install 2 new exhaust flange nuts.
- Tighten to 40 Nm (30 lb-ft).
