Shift Concerns 210/310 - 249/349
>>
211/311, Timing - Early/Late
211/311, Timing - Early/Late
6F50
Diagnostic Routines

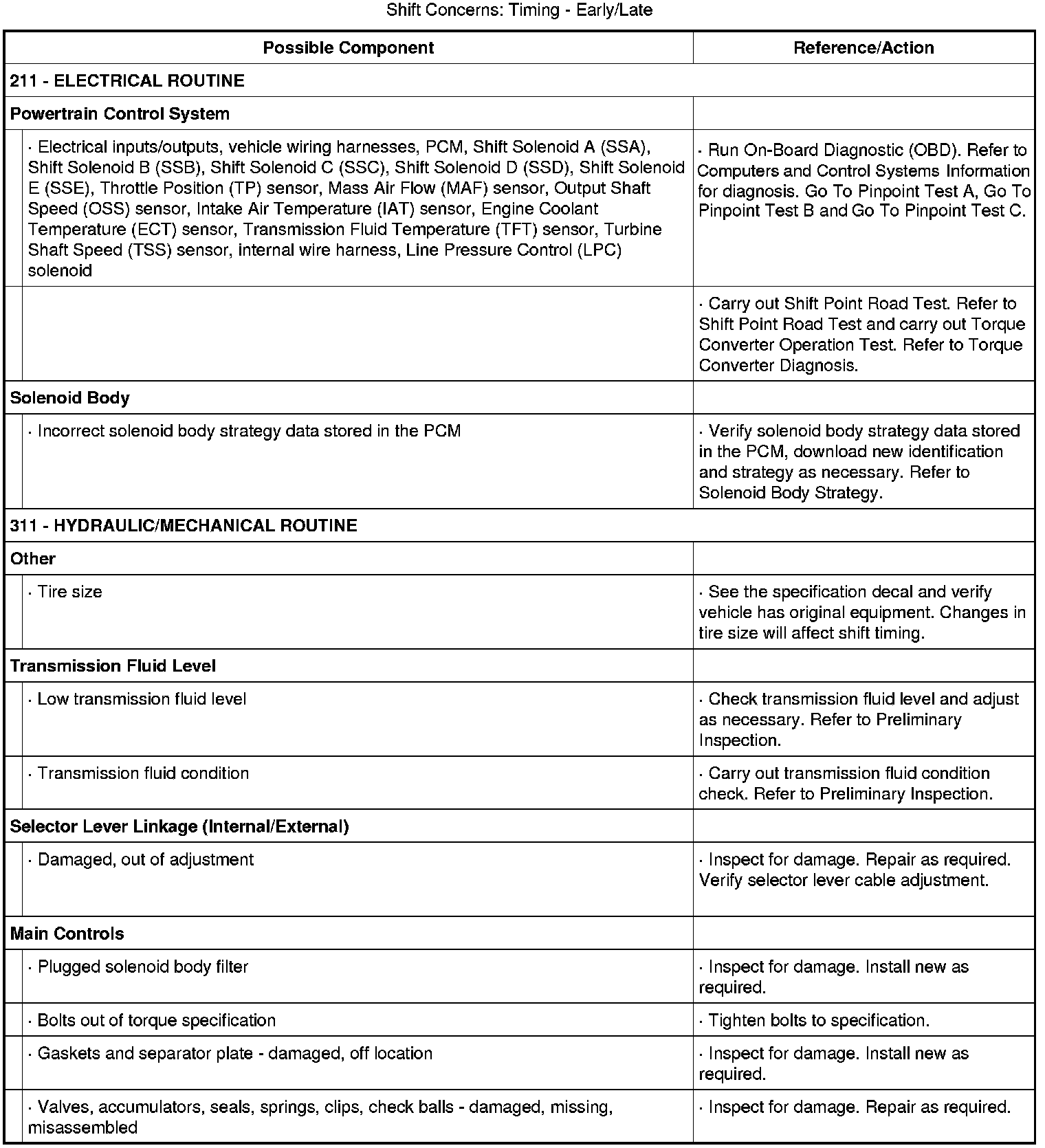

211/311, Timing - Early/Late (Part 1):

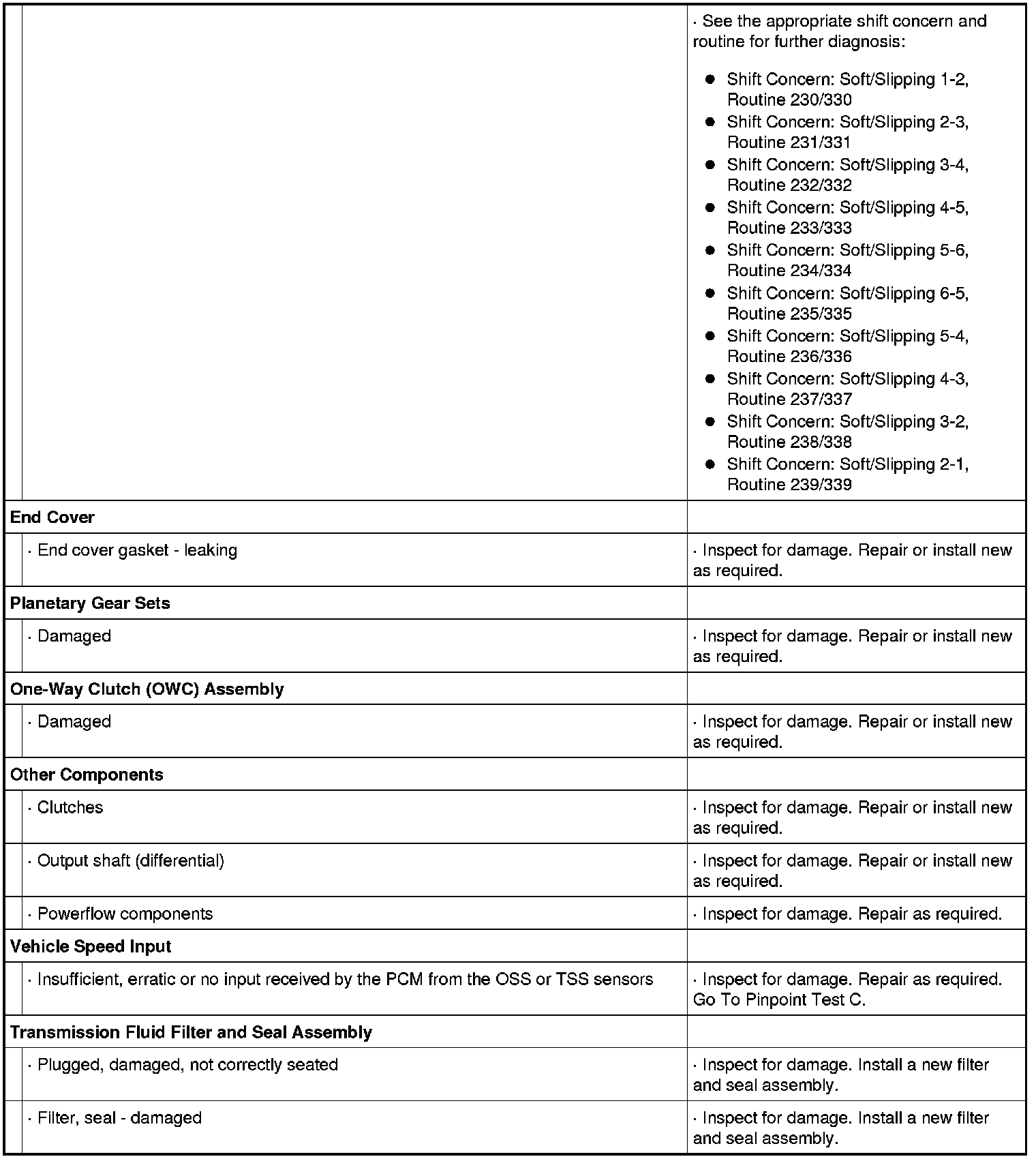

211/311, Timing - Early/Late (Part 2):
