Home >> Mercury >> 2009 >> Sable FWD V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Engagement Concern 201/301 - 209/309 >> 202/302, No Reverse

202/302, No Reverse





6F50

Diagnostic Routines

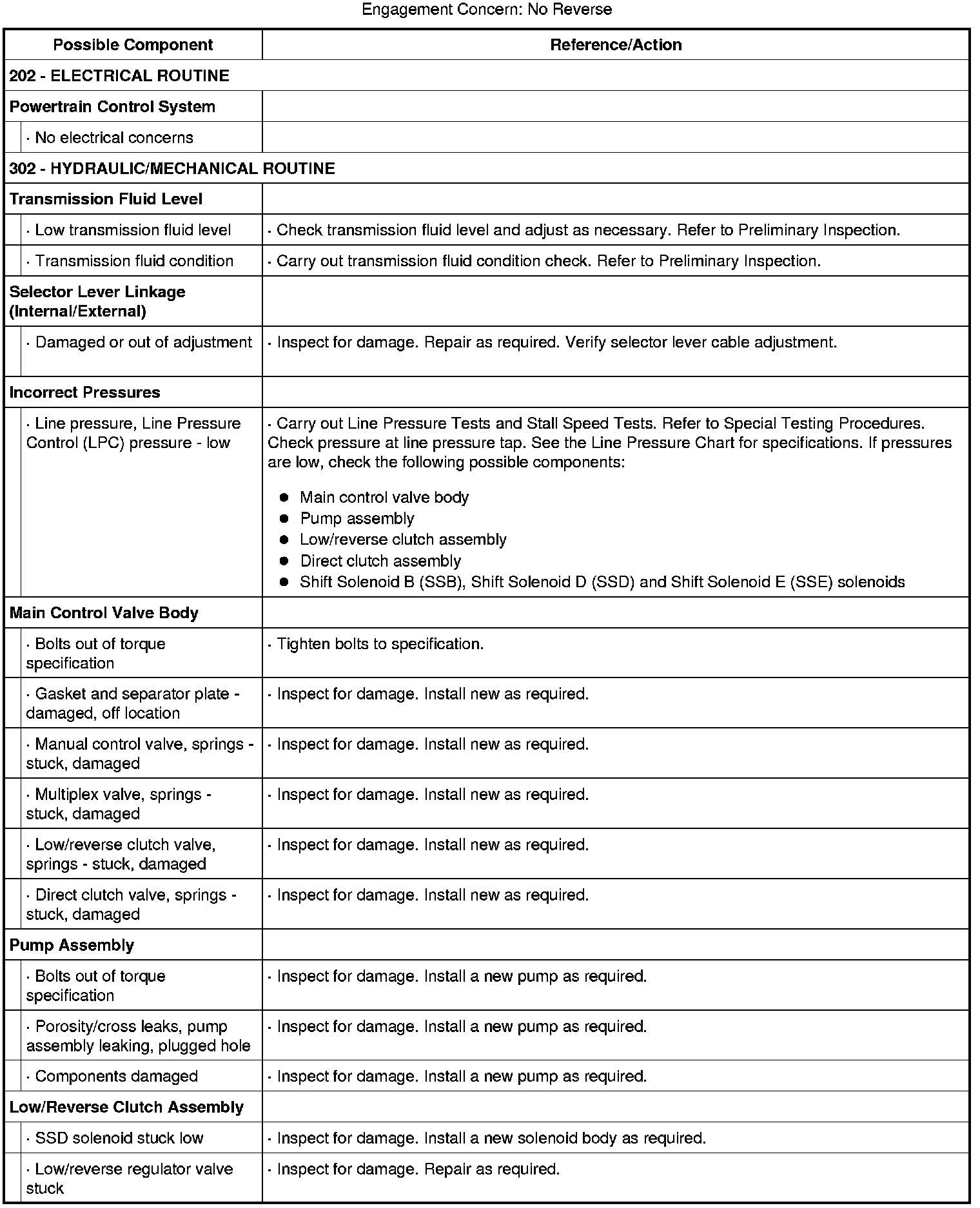

202/302, No Reverse (Part 1):

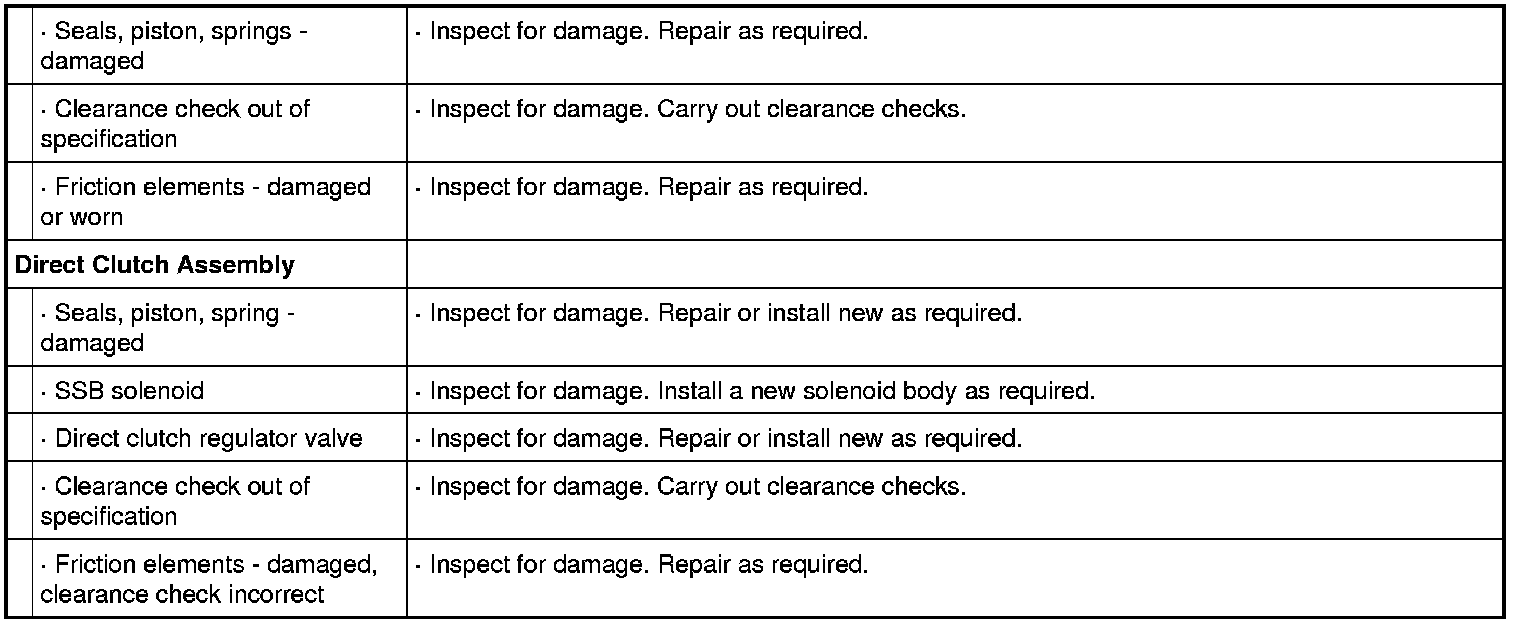

202/302, No Reverse (Part 2):
