Selector Lever Knob

Selector Lever Knob









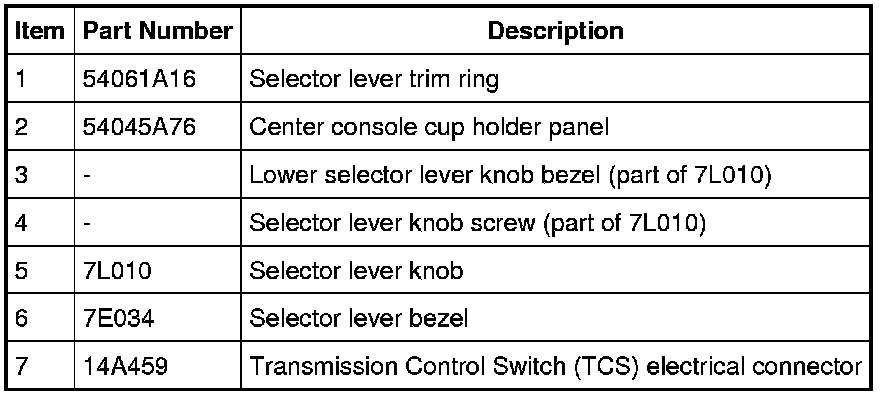

Removal

Vehicles with a Transmission Control Switch (TCS)

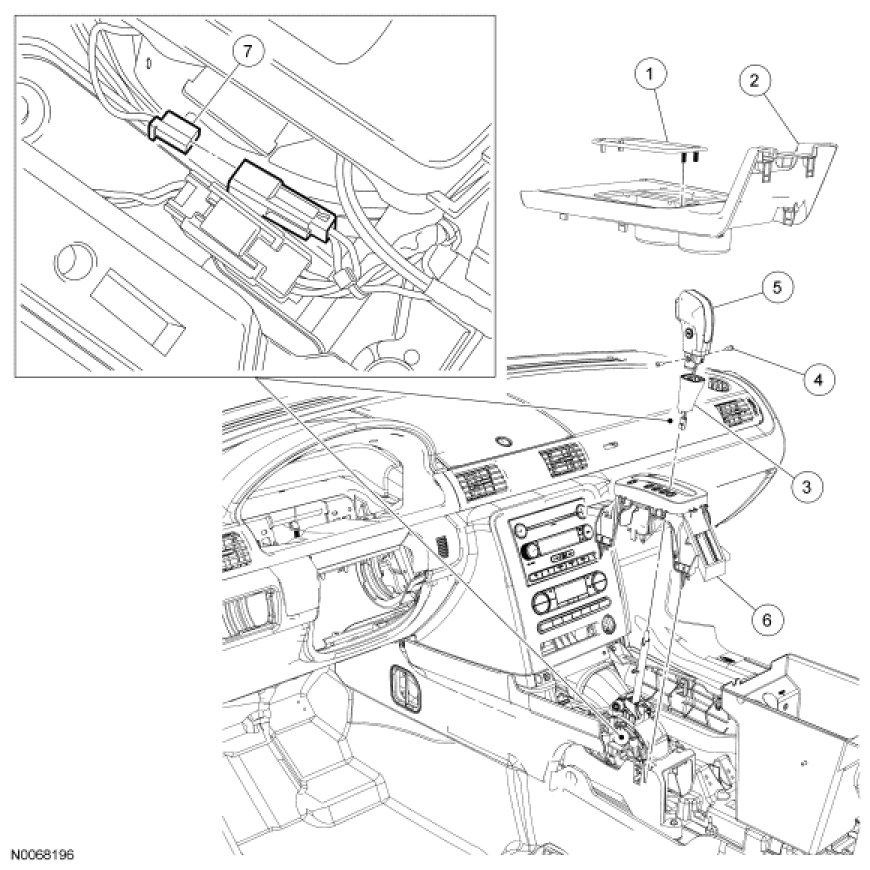

1. Remove the selector lever trim ring.

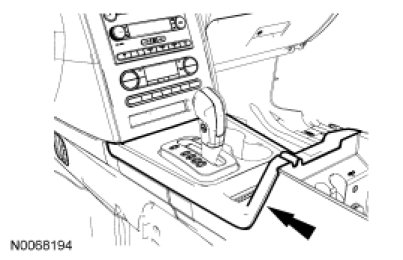

2. Lift the armrest and remove the center console cup holder panel.





All vehicles

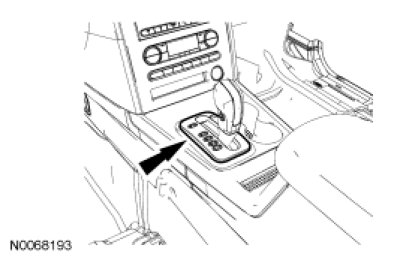

3. Slide the lower selector lever knob bezel downward.

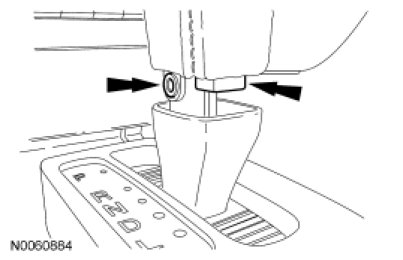

4. Remove the 2 screws from the selector lever knob.





Vehicles without a TCS

5. Remove the selector lever knob.

Vehicles with a TCS

6. NOTE: Selector lever removed for clarity.

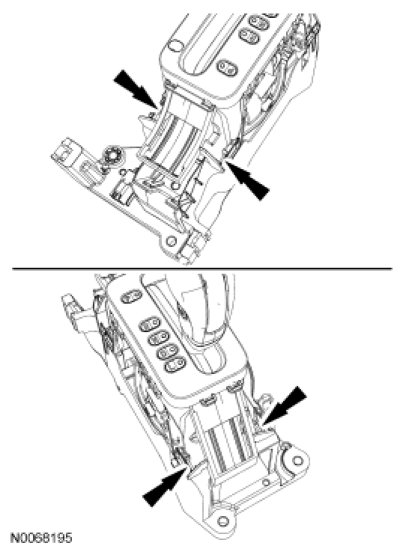

Release the 4 tabs and position the selector lever trim ring aside to gain access to the Transmission Control Switch (TCS) electrical connector.

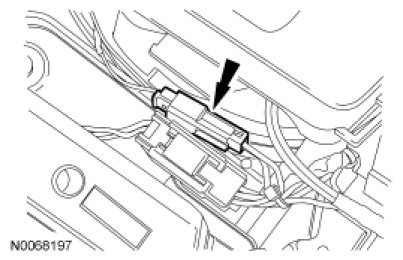

7. Disconnect the TCS electrical connector, route the wiring harness out of the selector lever bezel and remove the selector lever knob and knob bezel.





Installation

Vehicles with a TCS

1. Route the TCS wiring harness through the selector lever bezel and connect the TCS electrical connector.





2. NOTE: Selector lever removed for clarity.

Position the selector lever bezel in place.

- Be sure the 4 tabs are locked in place.





All vehicles

3. Position the selector lever knob and knob bezel in place and install the screws.





4. Slide the lower selector lever knob bezel up and snap it into place.





Vehicles with a TCS

5. Install the upper console panel.





6. Install the selector lever bezel trim ring.
