Selector Lever Bezel

Selector Lever Bezel









Removal

All vehicles

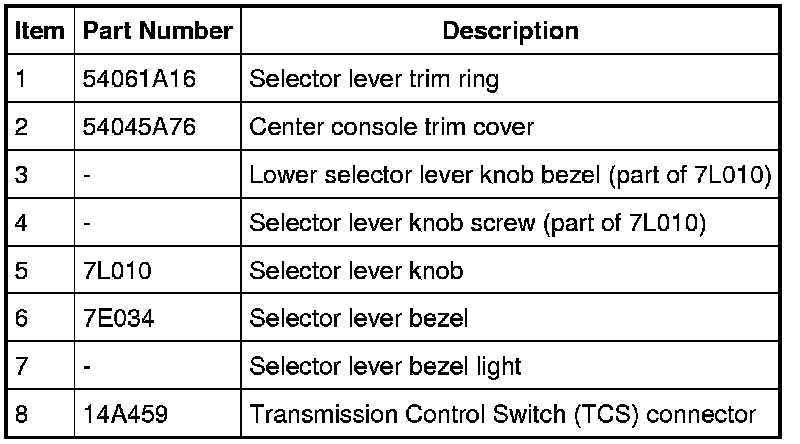

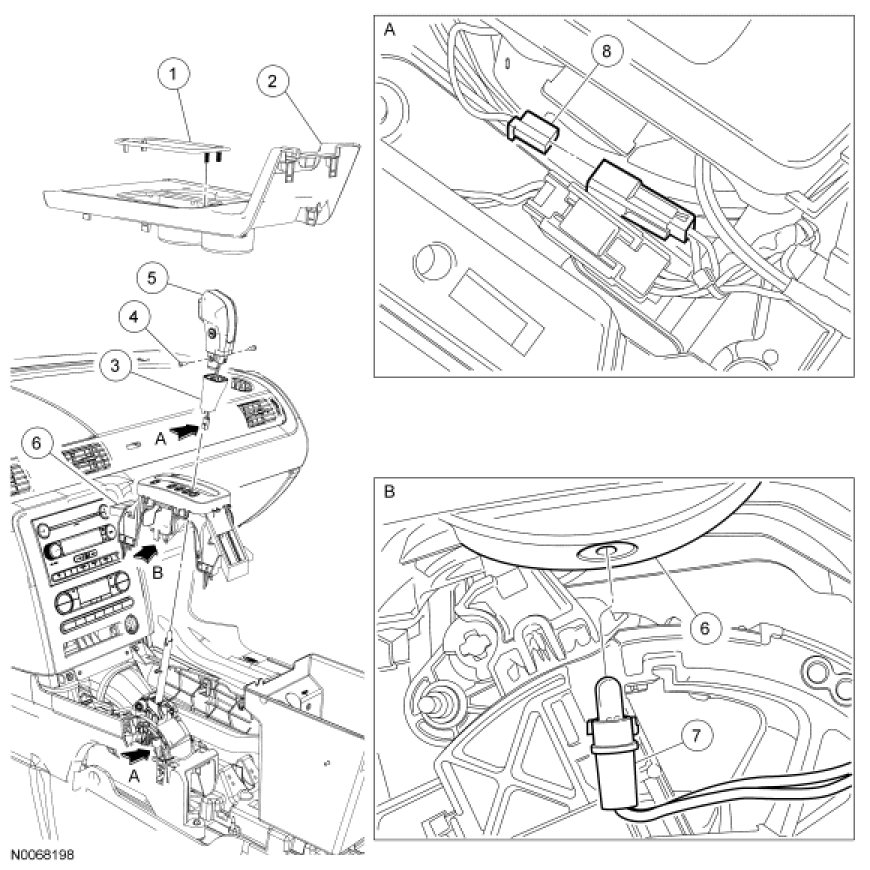

1. Remove the selector lever bezel trim ring.





2. Lift the armrest and remove the upper console panel.





3. Slide the lower selector lever knob bezel downward.





4. Remove the 2 screws from the selector lever knob.





Vehicles not equipped with a Transmission Control Switch (TCS)

5. Remove the selector lever knob and knob bezel.

All vehicles

6. NOTE: Selector lever removed for clarity.

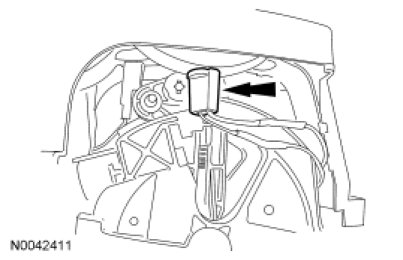

Release the 4 selector lever bezel tabs and position the selector lever bezel aside to gain access to the bezel light and the Transmission Control Switch (TCS) connector, if equipped.





7. Remove the selector lever bezel light from the selector lever bezel.





Vehicles equipped with a TCS

8. Disconnect the TCS connector, route the wiring harness out of the selector lever bezel and remove the selector lever knob and knob bezel.





All vehicles

9. Remove the selector lever bezel.

Installation

All vehicles

1. NOTE: Do not lock the 4 selector lever bezel tabs in the selector lever bezel.

Position the selector lever bezel on the selector lever.

Vehicles equipped with a TCS

2. Route the TCS wiring harness through the selector lever bezel and connect the TCS connector.





All vehicles

3. Install the selector lever bezel light in the selector lever bezel.





4. NOTE: Selector lever removed for clarity.

Position the selector lever bezel in place.

- Be sure the 4 tabs are locked in place.





Vehicles not equipped with a TCS

5. Position the selector lever knob bezel and the selector lever knob in place.

All vehicles

6. Position the selector lever knob and knob bezel in place and install the screws.





7. Slide the lower selector lever knob bezel up and snap it into place.





8. Install the upper console panel.





9. Install the selector lever bezel trim ring.
