Halfshaft Seal - RH

6F50

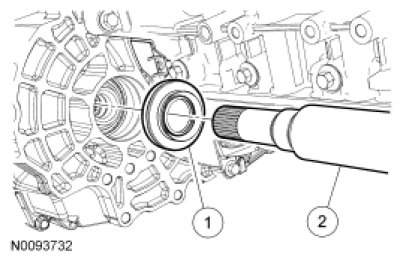

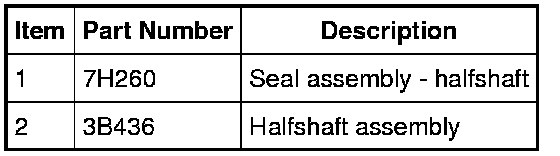

Halfshaft Seal - RH, Front Wheel Drive (FWD)

















Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the RH front wheel.

3. Remove the RH front halfshaft.

4. Inspect the halfshaft hub for wear or damage and install a new halfshaft, if necessary.

1. Inspect the differential seal surface.

2. Inspect the halfshaft bushing surface. If this surface is damaged, inspect the halfshaft bushing for damage.

3. Inspect the differential side gear splines.

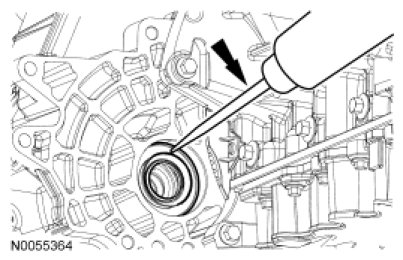

5. Using a suitable awl, poke a small hole in the halfshaft seal.





6. Using a suitable dent puller, remove the halfshaft seal.





Installation

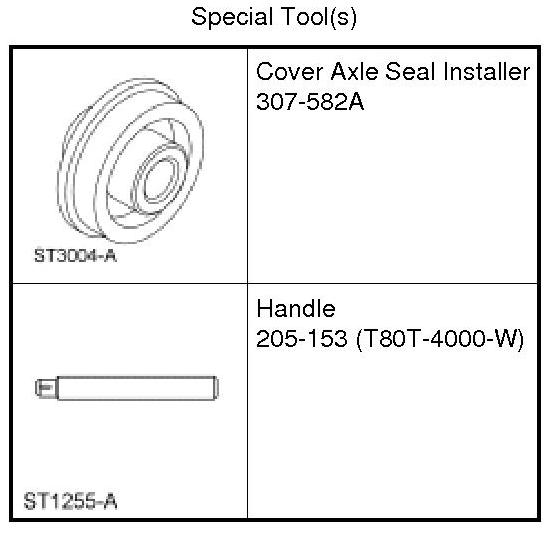

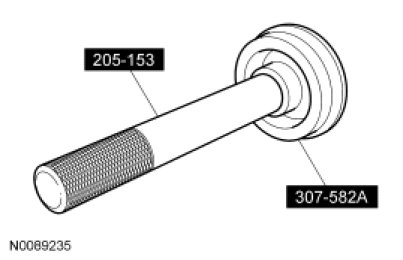

1. Install a new halfshaft seal on the Cover Axle Seal Installer and Handle.

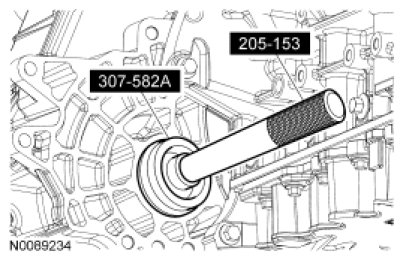

2. Using the Cover Axle Seal Installer and Handle, install the RH halfshaft seal.





3. Install the RH halfshaft.

4. Install the front wheel.

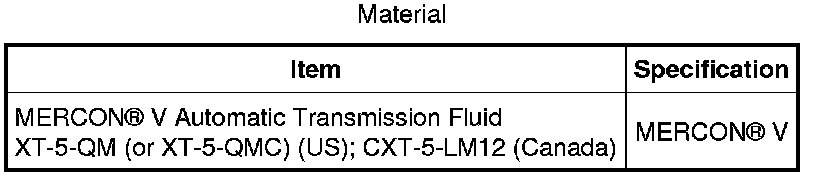

5. Fill with clean transmission fluid to the correct level.
