Part 3

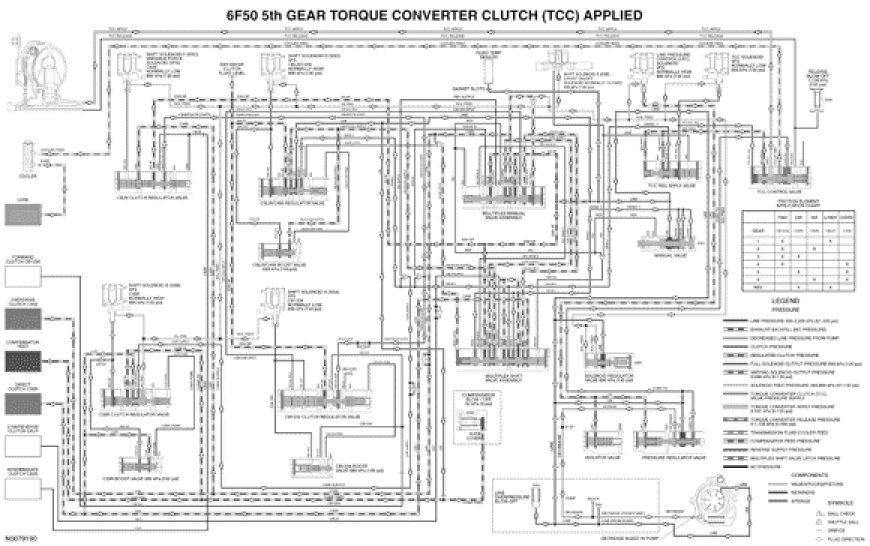

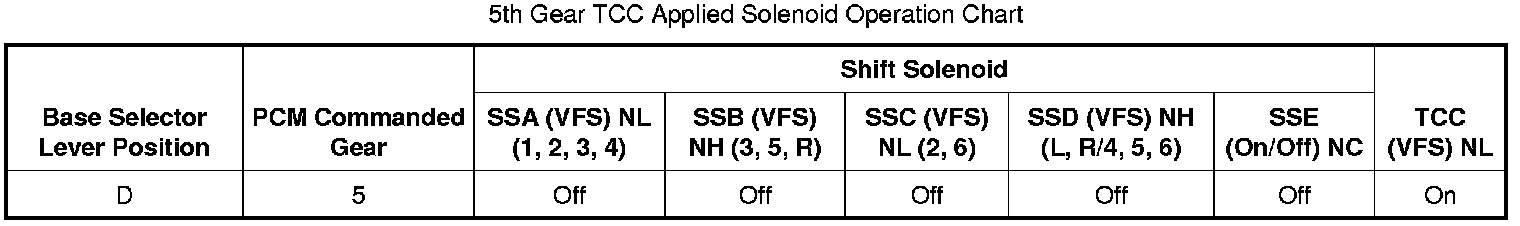

5th Gear Torque Converter Clutch (TCC) Applied
Mechanical Operation
Apply components:
- O/D (4, 5, 6) clutch
- Direct (3, 5, R) clutch
- TCC
Planetary Gearset Operation
Front planetary gearset driven components:
- Planetary carrier
Center planetary gearset driven components:
- Sun gear (does not contribute to power flow)
Rear planetary gearset driven components:
- Sun gear
- Planetary carrier
- Ring gear
Front planetary gearset held components:
- None
Center planetary gearset held components:
- None
Rear planetary gearset held components:
- None
For component information, refer to Mechanical Components and Functions Mechanical Components and Functions.
Power Flow
Hydraulic Operation
Line pressure hydraulic circuits:
- Line pressure from the pump is supplied to the manual valve.
- Line pressure is regulated by the pressure regulator valve.
- The pressure regulator valve is controlled by varying pressure from the LPC solenoid through the LPC circuit.
Torque converter circuits:
- Line pressure from the manual valve is directed to the multiplex shift valve through the DRIVE 1 hydraulic circuit.
- The multiplex shift valve directs DRIVE 1 pressure to the TCC regulator apply valve through the DRIVE 2 hydraulic circuit.
- When the TCC is applied, the TCC regulator apply valve directs regulated DRIVE 2 pressure to the TCC control valve through the REG APPLY hydraulic circuit. The TCC control valve directs DRIVE 2 pressure to the TCC APPLY hydraulic circuit to apply the TCC.
- Transmission fluid from the TCC APPLY circuit returns to the TCC control valve unpressurized through the TCC RELEASE circuit and returns to the sump through the EXH port.
Cooler and lubrication hydraulic circuits:
- Regulated line pressure from the pressure regulator valve is directed to the TCC control valve through the CONV FD hydraulic circuit.
- The TCC control valve directs transmission fluid from the CONV FD circuit to the COOLER FEED circuit.
- In the COOLER FEED circuit, transmission fluid flows through the transmission fluid cooler or the thermal bypass valve to the LUBE circuit.
Solenoid hydraulic circuits:
- The LPC solenoid applies varying pressure to the pressure control valve through the LPC hydraulic circuit. The LPC solenoid regulates line pressure by controlling the position of the pressure regulator valve.
- SSB applies pressure to the direct (3, 5, R) clutch regulator valve to apply the direct clutch.
- SSD applies pressure to the low/reverse/overdrive (4, 5, 6) clutch regulator valve to apply the O/D clutch.
- The TCC solenoid applies pressure to the TCC control valve and the TCC regulator apply valve to apply the TCC.
Clutch hydraulic circuits:
- Line pressure from the manual valve is directed to the multiplex shift valve through the DRIVE 1 hydraulic circuit.
- The multiplex shift valve directs DRIVE 1 pressure to the C35R clutch regulator valve through the DRIVE 2 and C35R SUPPLY hydraulic circuits.
- Line pressure from the pump is supplied to the low/reverse/overdrive (4, 5, 6) regulator valve.
- Regulated line pressure from the low/reverse/overdrive (4, 5, 6) regulator valve is sent to the multiplex shift valve assembly through the CBLR/C456 SUPPLY hydraulic circuit.
- The multiplex shift valve directs the CBLR/C456 SUPPLY transmission fluid to the multiplex manual valve through the C456 SUPPLY hydraulic circuit.
- The multiplex manual valve directs pressure from the C456 SUPPLY circuit to the O/D (4, 5, 6) clutch through the C456 hydraulic circuit to apply the clutch.
- The C456 hydraulic circuit supplies pressure to the VALVE LATCH circuit to latch the multiplex shift valve and also supplies pressure to the intermediate (2, 6) clutch regulator valve.
- Regulated C35R SUPPLY pressure from the direct (3, 5, R) clutch regulator valve is directed to the direct (3, 5, R) clutch through the C35R hydraulic circuit to apply the clutch.
For additional hydraulic circuit and information, refer to Hydraulic Circuits Hydraulic Circuits.
Electrical Operation
Solenoid operation:
NC = Normally closed
NH = Normally high
NL = Normally low

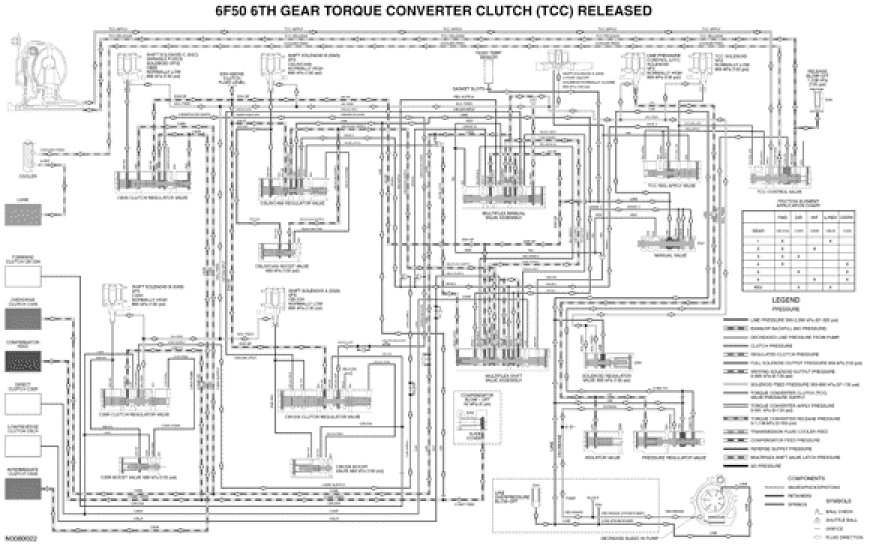

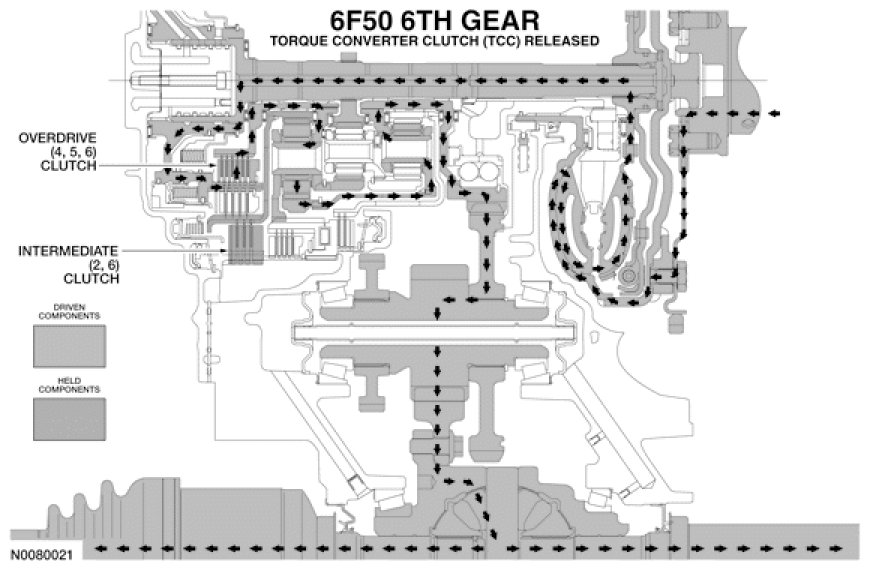

6th Gear Torque Converter Clutch (TCC) Released
Mechanical Operation

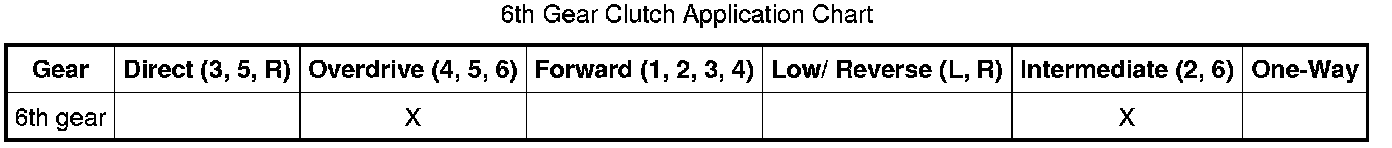

Apply components:
- O/D (4, 5, 6) clutch
- Intermediate (2, 6) clutch
Planetary Gearset Operation
Front planetary gearset driven components:
- Planetary carrier
Center planetary gearset driven components:
- Sun gear (does not contribute to power flow)
- Ring gear (does not contribute to power flow)
Rear planetary gearset driven components:
- Planetary carrier
- Ring gear
Front planetary gearset held components:
- None
Center planetary gearset held components:
- None
Rear planetary gearset held components:
- Sun gear
For component information, refer to Mechanical Components and Functions Mechanical Components and Functions.
Power Flow
Hydraulic Operation
Line pressure hydraulic circuits:
- Line pressure from the pump is supplied to the manual valve.
- Line pressure is regulated by the pressure regulator valve.
- The pressure regulator valve is controlled by varying pressure from the LPC solenoid through the LPC circuit.
Torque converter circuits:
- Regulated line pressure from the pressure regulator valve is directed to the TCC control valve through the CONV FD hydraulic circuit.
- When the TCC is released, CONV FD pressure is directed to the TCC RELEASE circuit by the TCC control valve. Pressure from the TCC RELEASE circuit releases the TCC.
- Transmission fluid from the TCC RELEASE returns to the TCC control valve through the TCC APPLY circuit.
Cooler and lubrication hydraulic circuits:
- The TCC control valve directs transmission fluid from the TCC APPLY circuit (return circuit from the torque converter when the TCC is released) to the COOLER FEED circuit.
- In the COOLER FEED circuit, transmission fluid flows through the transmission fluid cooler or the thermal bypass valve to the LUBE circuit.
Solenoid hydraulic circuits:
- The LPC solenoid applies varying pressure to the pressure control valve through the LPC hydraulic circuit. The LPC solenoid regulates line pressure by controlling the position of the pressure regulator valve.
- SSC applies pressure to the intermediate (2, 6) clutch regulator valve to apply the direct (2, 6) clutch.
- SSD applies pressure to the low/reverse/overdrive (4, 5, 6) clutch regulator valve to apply the O/D clutch.
Clutch hydraulic circuits:
- Line pressure from the manual valve is directed to the multiplex shift valve through the DRIVE 1 hydraulic circuit.
- The multiplex shift valve directs DRIVE 1 pressure to the intermediate (2, 6) clutch regulator valve through the DRIVE 2 and CB26FD/CB1234FD hydraulic circuits.
- Line pressure from the pump is supplied to the low/reverse/overdrive (4, 5, 6) regulator valve.
- Regulated line pressure from the low/reverse/overdrive (4, 5, 6) regulator valve is sent to the multiplex shift valve assembly through the CBLR/C456 SUPPLY hydraulic circuit.
- The multiplex shift valve directs the CBLR/C456 SUPPLY transmission fluid to the multiplex manual valve through the C456 SUPPLY hydraulic circuit.
- The multiplex manual valve directs pressure from the C456 SUPPLY circuit to the O/D (4, 5, 6) clutch through the C456 hydraulic circuit to apply the clutch.
- The C456 hydraulic circuit supplies pressure to the VALVE LATCH circuit to latch the multiplex shift valve and also supplies pressure to the intermediate (2, 6) clutch regulator valve to boost the SSC SIG circuit.
- Regulated CB26FD/CB1234FD pressure from the intermediate (2, 6) clutch regulator valve is directed to the intermediate (2, 6) clutch through the CB26 hydraulic circuit to apply the clutch.
For additional hydraulic circuit and information, refer to Hydraulic Circuits Hydraulic Circuits.
Electrical Operation

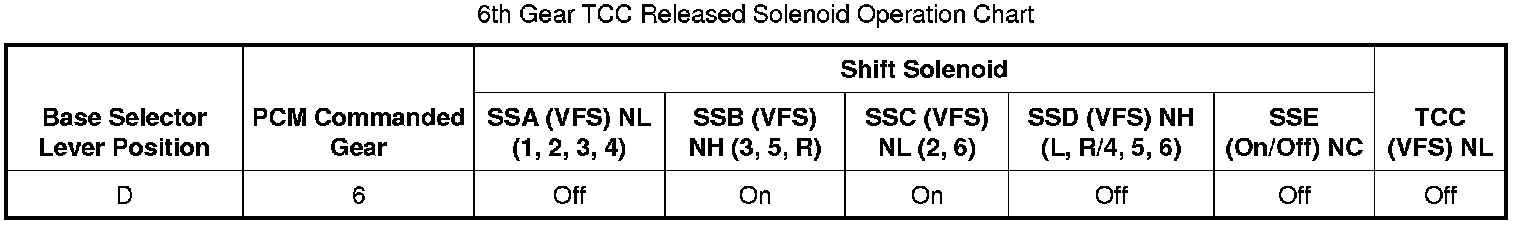

Solenoid operation:
NC = Normally closed
NH = Normally high
NL = Normally low

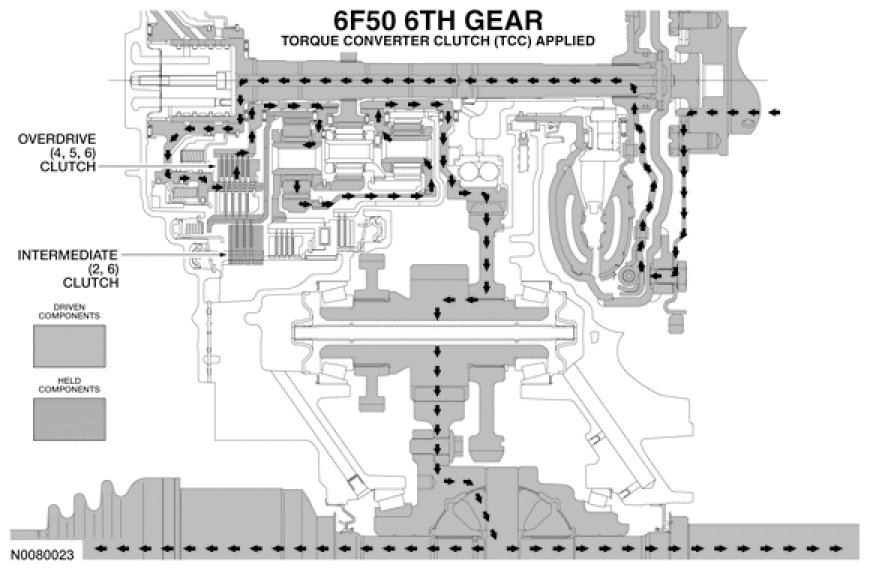

6th Gear Torque Converter Clutch (TCC) Applied
Mechanical Operation

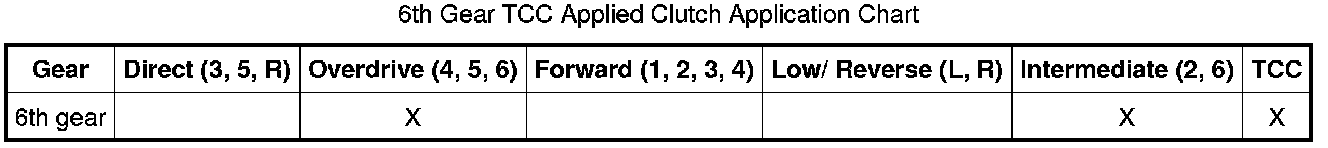

Apply components:
- O/D (4, 5, 6) clutch
- Intermediate (2, 6) clutch
- TCC
Planetary Gearset Operation
Front planetary gearset driven components:
- Planetary carrier
Center planetary gearset driven components:
- Sun gear (does not contribute to power flow)
- Ring gear (does not contribute to power flow)
Rear planetary gearset driven components:
- Planetary carrier
- Ring gear
Front planetary gearset held components:
- None
Center planetary gearset held components:
- None
Rear planetary gearset held components:
- Sun gear
For component information, refer to Mechanical Components and Functions Mechanical Components and Functions.
Power Flow
Hydraulic Operation
Line pressure hydraulic circuits:
- Line pressure from the pump is supplied to the manual valve.
- Line pressure is regulated by the pressure regulator valve.
- The pressure regulator valve is controlled by varying pressure from the LPC solenoid through the LPC circuit.
Torque converter circuits:
- Line pressure from the manual valve is directed to the multiplex shift valve through the DRIVE 1 hydraulic circuit.
- The multiplex shift valve directs DRIVE 1 pressure to the TCC regulator apply valve through the DRIVE 2 hydraulic circuit.
- When the TCC is applied, the TCC regulator apply valve directs regulated DRIVE 2 pressure to the TCC control valve through the REG APPLY hydraulic circuit. The TCC control valve directs DRIVE 2 pressure to the TCC APPLY hydraulic circuit to apply the TCC.
- Transmission fluid from the TCC APPLY circuit returns to the TCC control valve unpressurized through the TCC RELEASE circuit and returns to the sump through the EXH port.
Cooler and lubrication hydraulic circuits:
- Regulated line pressure from the pressure regulator valve is directed to the TCC control valve through the CONV FD hydraulic circuit.
- The TCC control valve directs transmission fluid from the CONV FD circuit to the COOLER FEED circuit.
- In the COOLER FEED circuit, transmission fluid flows through the transmission fluid cooler or the thermal bypass valve to the LUBE circuit.
Solenoid hydraulic circuits:
- The LPC solenoid applies varying pressure to the pressure control valve through the LPC hydraulic circuit. The LPC solenoid regulates line pressure by controlling the position of the pressure regulator valve.
- SSC applies pressure to the intermediate (2, 6) clutch regulator valve to apply the direct (2, 6) clutch.
- SSD applies pressure to the low/reverse/overdrive (4, 5, 6) clutch regulator valve to apply the O/D clutch.
- The TCC solenoid applies pressure to the TCC control valve and the TCC regulator apply valve to apply the TCC.
Clutch hydraulic circuits:
- Line pressure from the manual valve is directed to the multiplex shift valve through the DRIVE 1 hydraulic circuit.
- The multiplex shift valve directs DRIVE 1 pressure to the intermediate (2, 6) clutch regulator valve through the DRIVE 2 and CB26FD/CB1234FD hydraulic circuits.
- Line pressure from the pump is supplied to the low/reverse/overdrive (4, 5, 6) regulator valve.
- Regulated line pressure from the low/reverse/overdrive (4, 5, 6) regulator valve is sent to the multiplex shift valve assembly through the CBLR/C456 SUPPLY hydraulic circuit.
- The multiplex shift valve directs the CBLR/C456 SUPPLY transmission fluid to the multiplex manual valve through the C456 SUPPLY hydraulic circuit.
- The multiplex manual valve directs pressure from the C456 SUPPLY circuit to the O/D (4, 5, 6) clutch through the C456 hydraulic circuit to apply the clutch.
- The C456 hydraulic circuit supplies pressure to the VALVE LATCH circuit to latch the multiplex shift valve and also supplies pressure to the intermediate (2, 6) clutch regulator valve to boost the SSC SIG circuit.
- Regulated CB26FD/CB1234FD pressure from the intermediate (2, 6) clutch regulator valve is directed to the intermediate (2, 6) clutch through the CB26 hydraulic circuit to apply the clutch.
For additional hydraulic circuit and information, refer to Hydraulic Circuits Hydraulic Circuits.
Electrical Operation
Solenoid operation:
NC = Normally closed
NH = Normally high
NL = Normally low

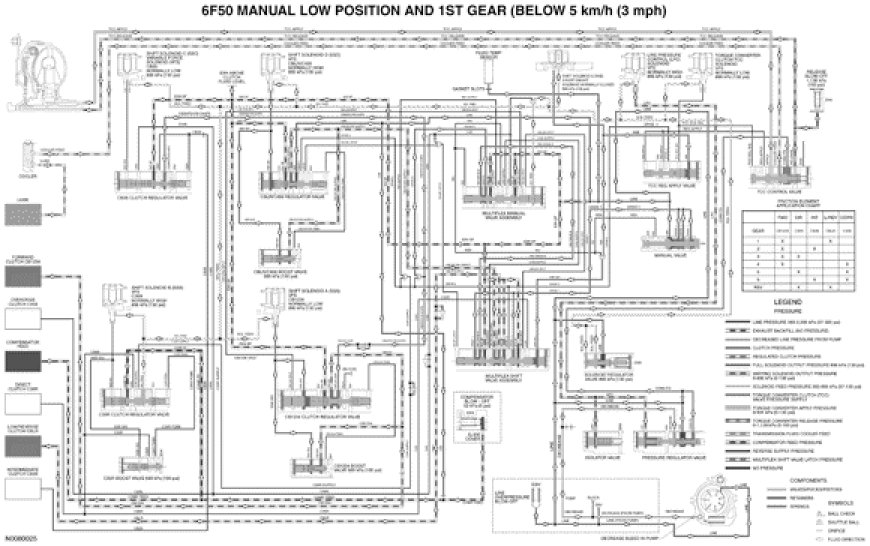

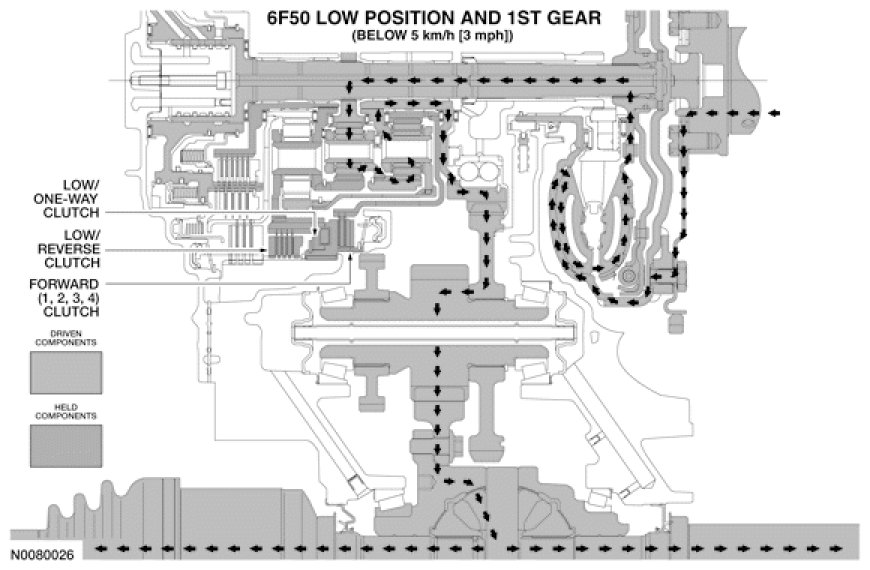

Manual LOW Position and 1st Gear Below 5 km/h (3 mph)
NOTE: The transaxle operates differently in first gear above and below 5 km/h (3 mph). For transaxle operation above 5 km/h (3 mph), refer to 1st Gear Above 5 km/h (3 mph).
Mechanical Operation

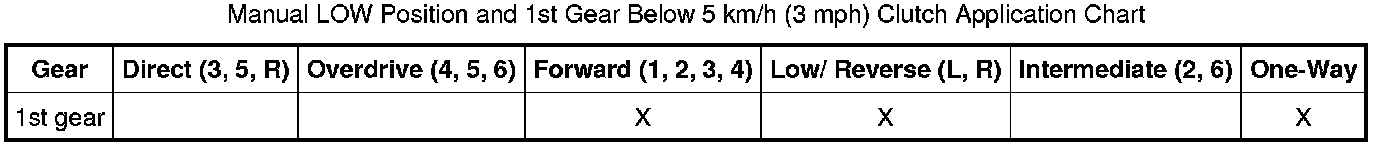

Apply components:
- Forward (1, 2, 3, 4) clutch
- Low/reverse clutch
- Low one-way clutch
Planetary Gearset Operation
Front planetary gearset driven components:
- Ring gear
- Planetary carrier
Center planetary gearset driven components:
- Sun gear
- Planetary carrier
Rear planetary gearset driven components:
- None
Front planetary gearset held components:
- Sun gear
Center planetary gearset held components:
- Ring gear
Rear planetary gearset held components:
- Rear planetary carrier (does not contribute to power flow)
For component information, refer to Mechanical Components and Functions Mechanical Components and Functions.
Power Flow
Hydraulic Operation
Line pressure hydraulic circuits:
- Line pressure from the pump is supplied to the manual valve.
- Line pressure is regulated by the pressure regulator valve.
- The pressure regulator valve is controlled by varying pressure from the LPC solenoid through the LPC circuit.
Torque converter circuits:
- Regulated line pressure from the pressure regulator valve is directed to the TCC control valve through the CONV FD hydraulic circuit.
- When the TCC is released, CONV FD pressure is directed to the TCC RELEASE circuit by the TCC control valve. Pressure from the TCC RELEASE circuit releases the TCC.
- Transmission fluid from the TCC RELEASE returns to the TCC control valve through the TCC APPLY circuit.
Cooler and lubrication hydraulic circuits:
- The TCC control valve directs transmission fluid from the TCC APPLY circuit (return circuit from the torque converter when the TCC is released) to the COOLER FEED circuit.
- In the COOLER FEED circuit, transmission fluid flows through the transmission fluid cooler or the thermal bypass valve to the LUBE circuit.
Solenoid hydraulic circuits:
- The LPC solenoid applies varying pressure to the pressure control valve through the LPC hydraulic circuit. The LPC solenoid regulates line pressure by controlling the position of the pressure regulator valve.
- SSA applies pressure to the forward (1, 2, 3, 4) clutch regulator valve to apply the forward clutch.
- SSD applies pressure to the low/reverse/overdrive (4, 5, 6) regulator valve to apply the low/reverse clutch.
- SSE applies pressure to the multiplex shift valve to position the valve against the spring and direct regulated CBLR/C456 SUPPLY pressure to the low/reverse clutch.
Clutch hydraulic circuits:
- Line pressure from the manual valve is directed to the multiplex shift valve through the DRIVE 1 hydraulic circuit.
- The multiplex shift valve directs DRIVE 1 pressure to the multiplex manual valve through the REV DRIVE B circuit.
- The multiplex manual valve directs REV DRIVE B pressure to the DRIVE 2/DRIVE B shuttle ball where it enters the CB26FD/CB1234FD circuit.
- The CB26FD/CB1234FD circuit feeds the forward (1, 2, 3, 4) clutch through the CB1234 SUP circuit.
- Regulated DRIVE 2 pressure from the forward (1, 2, 3, 4) clutch regulator valve is directed to the forward (1, 2, 3, 4) clutch through the CB1234 hydraulic circuit to apply the clutch.
- Regulated line pressure from the low/reverse/overdrive (4, 5, 6) regulator valve is sent to the multiplex shift valve assembly through the CBLR/C456 SUPPLY hydraulic circuit.
- The multiplex shift valve directs the transmission fluid to the low/reverse clutch through the CBLR hydraulic circuit.
For additional hydraulic circuit and information, refer to Hydraulic Circuits Hydraulic Circuits.
Electrical Operation

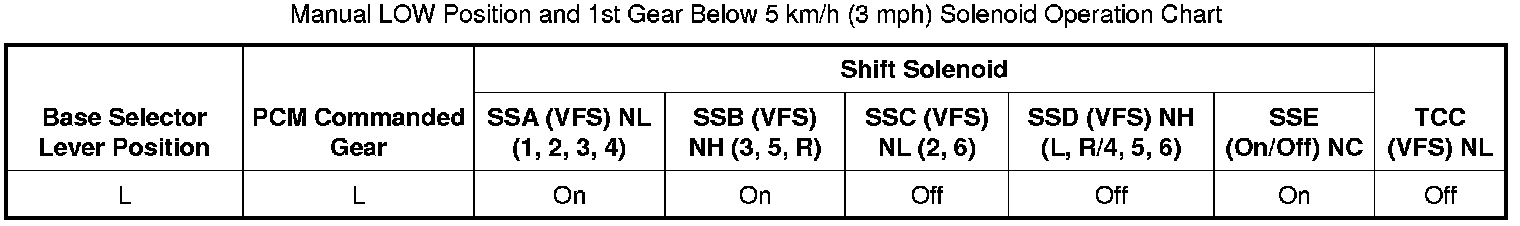

Solenoid operation:
NC = Normally closed
NH = Normally high
NL = Normally low
