Pinpoint Test C: Unusual Starter Noise

Starting System


Pinpoint Test C: Unusual Starter Noise

This pinpoint test is intended to diagnose the following:
- Starter motor
- Ring gear



PINPOINT TEST C: UNUSUAL STARTER NOISE

-------------------------------------------------
C1 CHECK THE STARTER MOUNTING


- Inspect the starter mounting bolts for looseness.
- Is the starter motor mounted correctly?

Yes
GO to C2.

No
INSTALL the starter motor correctly. REFER to Starter Motor Service and Repair. TEST the system for normal operation.

-------------------------------------------------
C2 CHECK FOR ENGINE NOISE


- Ignition OFF.

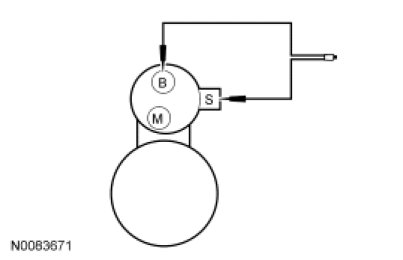

- Connect a remote starter switch between the starter solenoid B- and S-terminals.




- Engage the starter motor and verify the noise is due to the starter operation.
- Is the noise due to the starter motor engagement?

Yes
GO to C3.

No
REFER to Engine to continue diagnosis. Testing and Inspection

-------------------------------------------------
C3 CHECK FOR UNUSUAL WEAR


- Remove the starter motor.
- Inspect the ring gear for damaged or worn teeth. Refer to the Engine system level.
- Is the noise due to ring gear tooth damage?

Yes
INSTALL a new flexplate ring gear. Refer to the Engine system level. EXAMINE the starter pinion teeth. If damaged, INSTALL a new starter motor. REFER to Starter Motor Service and Repair. TEST the system for normal operation.

No
INSTALL a new starter motor. REFER to Starter Motor Service and Repair. TEST the system for normal operation.

-------------------------------------------------
