Home >> Mercury >> 2009 >> Sable FWD V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Tightening Torque & Sequence >> Water Pump

Water Pump

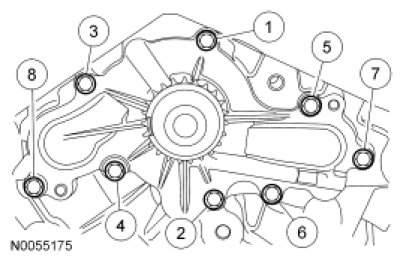

Install the coolant pump and the 8 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).
