Safety Belt Twisted At The Safety Belt Guide

Safety Belt Twisted at the Safety Belt Guide

NOTE: These procedures apply to both wire-formed and stamped D-ring designs.

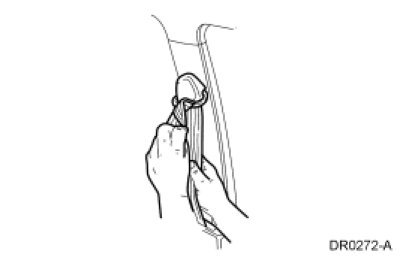

1. Grasp the belt webbing at the shoulder belt guide (D-ring).

2. Rotate and fold the belt webbing over itself to remove the twist.

3. Feed the folded belt through the safety belt guide (D-ring).

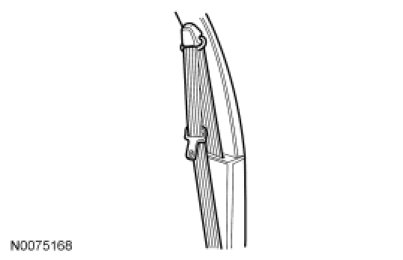

4. When completed, the safety belt should look like the illustration.
