Universal Serial Bus (USB) Cable and Port

Universal Serial Bus (USB) Cable and Port

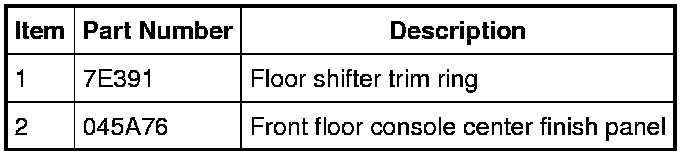

Floor Console Components

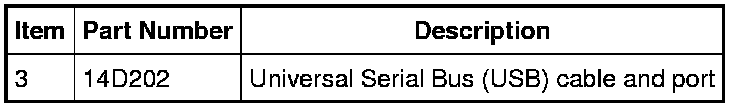

Universal Serial Bus (USB) Cable and Port









Removal and Installation

1. Remove the floor shifter trim ring by pulling straight up to disengage the clips.

2. Remove the front floor console center finish panel by pulling straight up to disengage the clips.

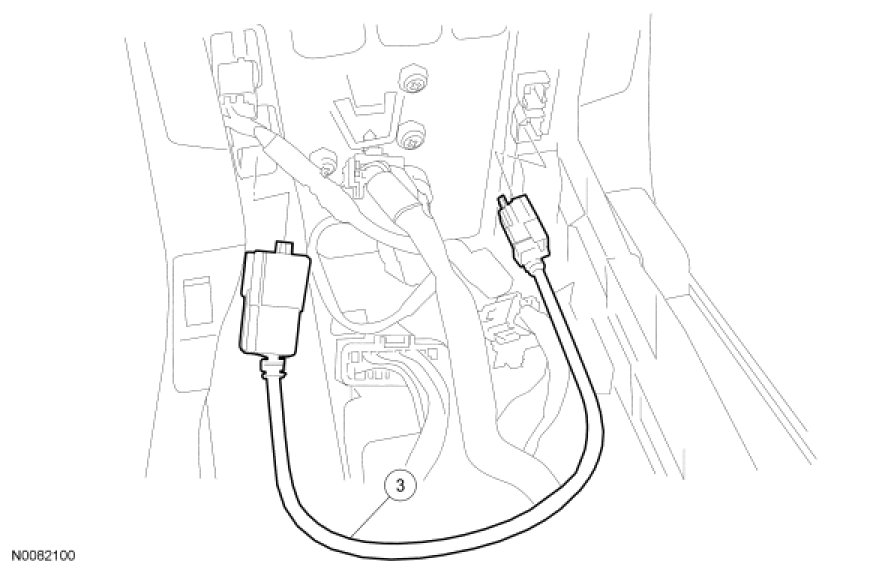

3. Remove the Universal Serial Bus (USB) cable and port.
- Disconnect the USB cable and port-to-Accessory Protocol Interface Module (APIM) electrical connector.

- Disconnect the USB cable and port-to-bezel connector.

4. To install, reverse the removal procedure.
