Oxygen Sensor
>>
Diagrams
>>

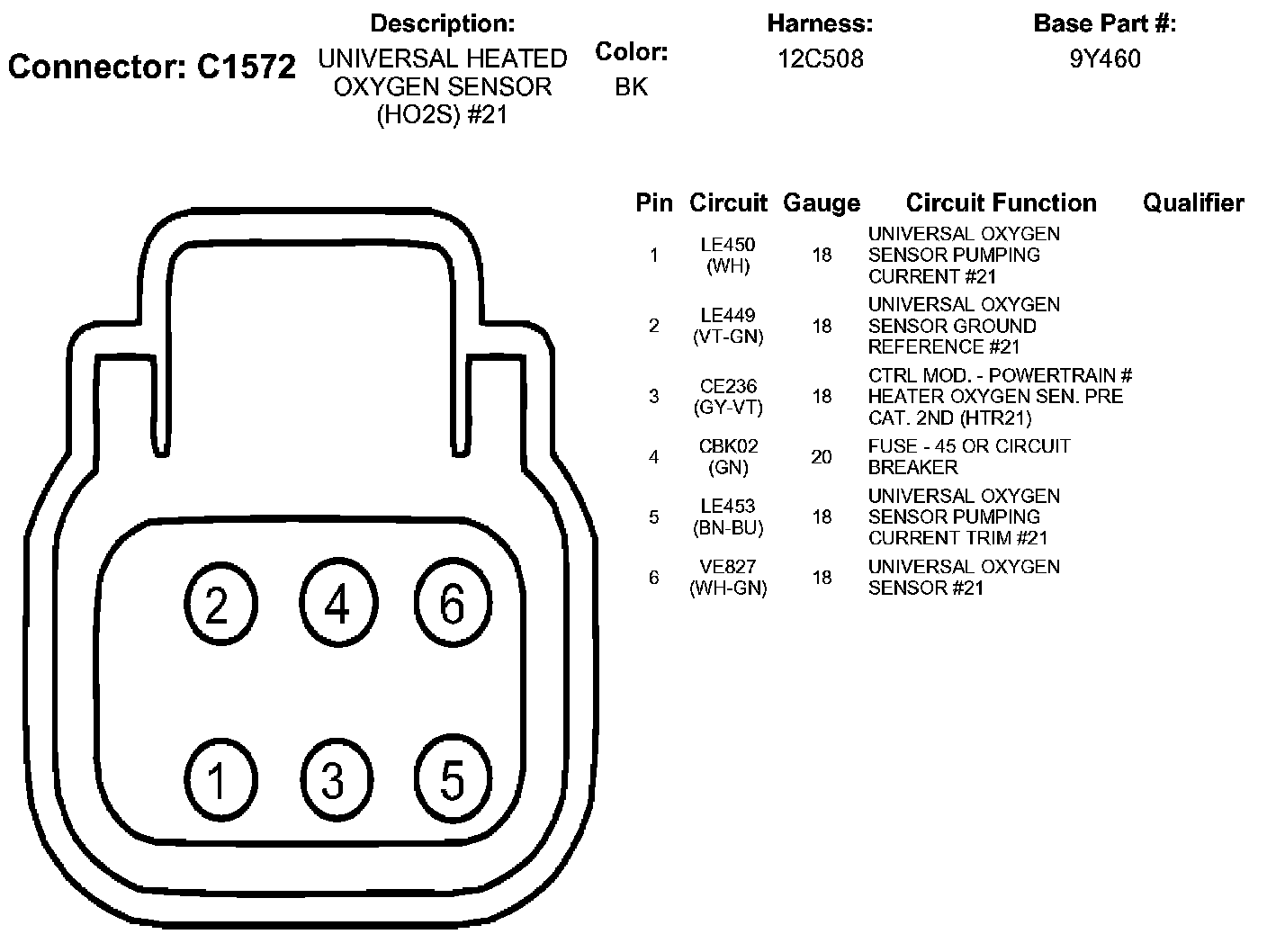

Universal Heated Oxygen Sensor (HO2S) #21
Universal Heated Oxygen Sensor (HO2S) #21
