Engine Control Module: Service and Repair

Powertrain Control Module (PCM)









Removal

1. NOTE: PCM installation DOES NOT require new keys or programming of keys.

Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. Programming and Relearning

2. Remove the cowl panel grille.

3. Disconnect the 3 PCM electrical connectors.

4. Remove the 2 nuts and the PCM.

Installation

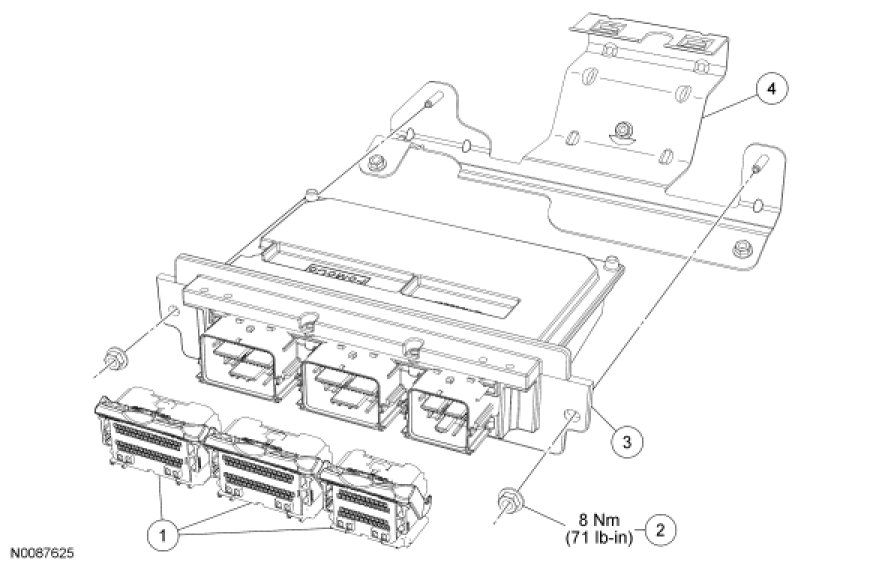

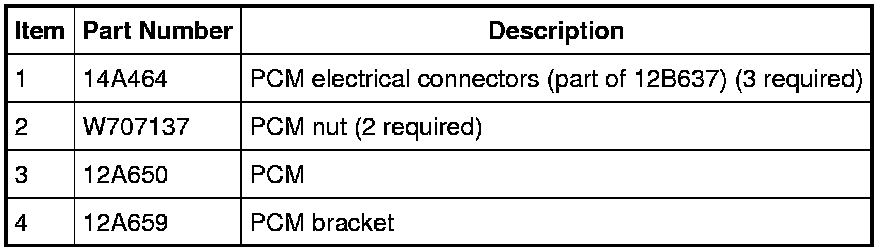

1. Install the PCM and the 2 nuts.
- Tighten to 8 Nm (71 lb-in).

2. Connect the 3 PCM electrical connectors.

3. Install the cowl panel grille.

4. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. Programming and Relearning

5. Reprogram the Passive Anti-Theft System (PATS). Carry out the Parameter Reset procedure. Passive Anti-Theft System (PATS)
