Throttle Body: Service and Repair

Throttle Body

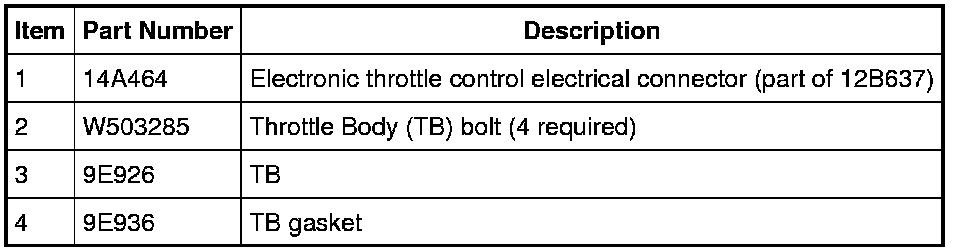

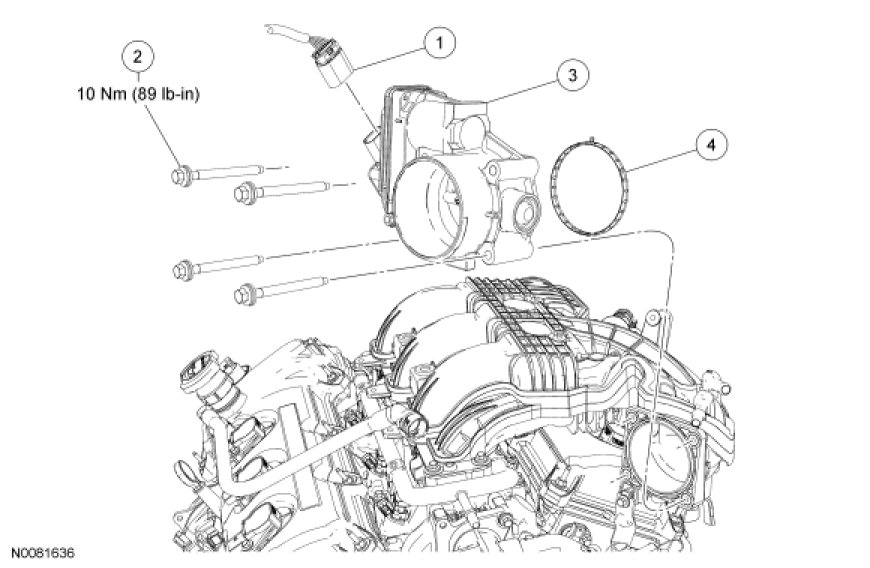

Removal and Installation

1. Remove the air cleaner outlet pipe.

2. Disconnect the electronic throttle control electrical connector.

3. Remove the 4 bolts and the Throttle Body (TB).
- Discard the TB gasket.

- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Install a new TB gasket.

To install, reverse the removal procedure.
